Specifications
Brand Name :
TAIGUO
Model Number :
ZKS
Certification :
CE、EAC、SGS
Place of Origin :
Henan, China
MOQ :
1
Price :
US $5000.00-10000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set
Delivery Time :
25-30working days
Packaging Details :
Bulk, packaged
Product name :
Vacuum hot water boiler
Structural form :
horizontal
use :
Heating, domestic hot water supply
Industry of use :
Schools, hotels, bathing centers, shopping malls, etc
Description

Product introduction:

The vacuum boiler is a vacuum environment with negative pressure formed inside the closed furnace body, and the heat medium water is filled in the body. The heat medium water is heated by combustion or other means, and then the heat medium water evaporates - condenses to the heat exchanger, and then the heat exchanger heats the water that needs to be heated. It has the advantages of reasonable structure, safe and reliable operation, high efficiency and energy saving, no explosion risk, no scaling, no corrosion, long service life, multi-purpose, easy installation and maintenance, beautiful appearance and so on. The system operates safely under negative pressure, and is suitable for hotels, restaurants, schools, enterprises and institutions, residential buildings, etc. It can provide heating and domestic hot water at the same time.

peculiarity:

1. Safe and reliable operation.
The vacuum water heater always operates under negative pressure and has multiple protection functions. With normal pressure and pressure boiler incomparable safety and reliability;
2, start fast.
Due to the negative pressure, the hot water is generated quickly, and the full load can be reached in a short time;
3, a multi-purpose machine.
Through the configuration of multi-channel heat exchanger, multi-channel heating can be realized at the same time.
4. Save space.
Small appearance, small footprint, low investment costs;

Technical parameter:

Model

item

 ZKS0.35 ZKS0.5 ZKS0.7 ZKS1.05 ZKS1.4 ZKS1.75 ZKS2.1 ZKS2.8 ZKS3.5 ZKS4.2
-85/60-Q
Rated power (MW) 0.35 0.5 0.7 1.05 1.4 1.75 2.1 2.8 3.5 4.2
Rated working pressure (Mpa) -0.02
Heat exchanger (Mpa) ≤2.5
Rated outlet water temperature (℃) 85
Rated return water temperature (℃) 60
Thermal efficiency (%) ≥98
Water capacity (L) 1340 2000 2600 3250 3950 4920 5950 7430 8520 9560
Water inlet and outlet (DN) 50 65 80 100 125 150 200
Pollution discharge (DN) 40 50

Fuel consumption

Light oil

(Kg/h)

 32.4 43.2 64.7 97.1 129.5 162 194.2 259 324 389

Natural

(Nm³/h)

 36.8 49 73.5 110.3 147 183.6 220.6 294.1 368 441.2

City gas

(Nm³/h)

 83.4 111.1 166.7 250 333.3 416.7 500 666.7 833 1000

Outline dimension

Length

(mm)

 3050 3300 3550 4100 4200 4500 4600 5100 5500 6100

Width

(mm)

 1400 1400 1500 1600 1700 1800 2000 2150 2450 2400

Height

(mm)

 1800 1800 1850 2000 2100 2200 2450 2650 2820 2820
weight (kg) 2400 2550 3350 4600 5950 6700 7900 10500 14000 15500

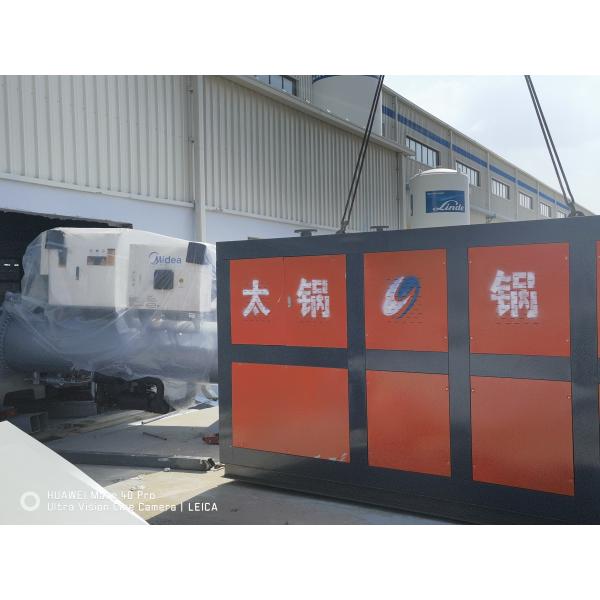

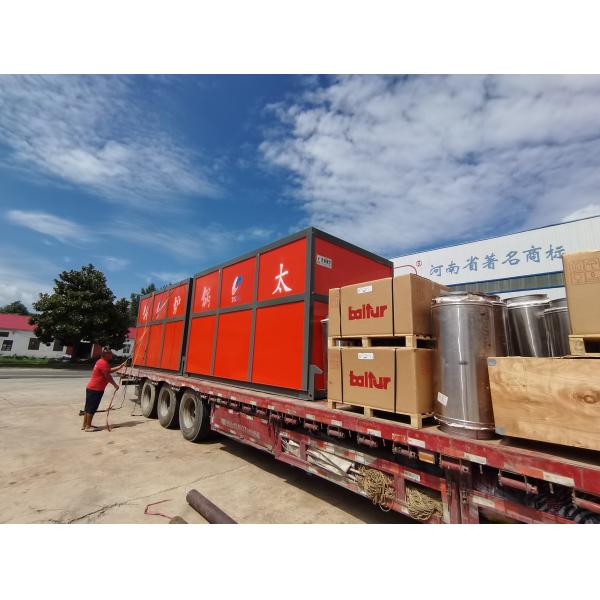

Product display:

Horizontal vacuum hot water boiler multi-purpose no scaling no corrosionHorizontal vacuum hot water boiler multi-purpose no scaling no corrosion
