The Vertical Biomass Hand-Fired Thermal Oil Boiler Is Stable, Safe And Reliable

Product introduction:

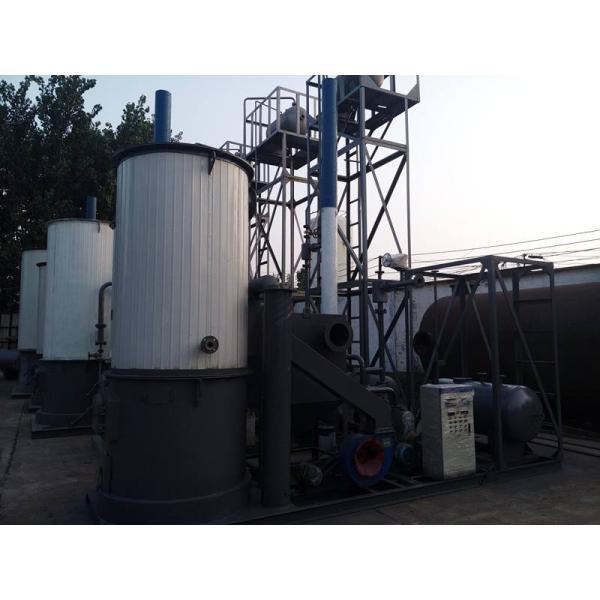

YGL series organic heat carrier furnace is a vertical three-return coil series structure, using a fixed grate. To heat transfer oil (such as L-QB, L-QC, L-QD) as the heat carrier through the circulation pump forced heat carrier liquid phase cycle, the heat transfer to the heat equipment, and then return to the heating furnace to reheat the high temperature, low pressure, energy-saving equipment, heating temperature can be up to 340℃, and generally in the working pressure of 1.0MPa below, because the work in the liquid state, safe and reliable.

Product advantage:

1.High temperature and low pressure, can obtain a higher working temperature under a lower operating pressure. The pressure condition of the thermal equipment can be greatly reduced and the equipment cost can be reduced.
2.Reasonable structure, advanced technology, small footprint, small size, beautiful appearance, simple management, high thermal efficiency, with significant energy saving effect and economic benefits, compared with similar foreign products, the structure has unique features. The furnace type is vertical and horizontal.
3. The heating surface layout is reasonable, and the thermal oil has a long service life.

Technical parameter:

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
