Specifications
Brand Name :
OEM/ODM
Model Number :
JYT-M100-100
Certification :
CE
Place of Origin :
China
MOQ :
1Pc
Price :
Negotiate
Payment Terms :
T/T
Delivery Time :
1-3 working days after payment received
Packaging Details :
Neutral Package
Description

Product Parameters

100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable SIMOS Voltage 6, SIMOS Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 100-200 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥47dBm 100W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤3
Working current@+28V dc ≤10A

High Low Temperature test

 Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
Center adjustment N-Female
LED indicator light Power ON/OFF
Dimension 150*80*23 mm
Screw Size 4-Ø3.20 mm
Weight 590g

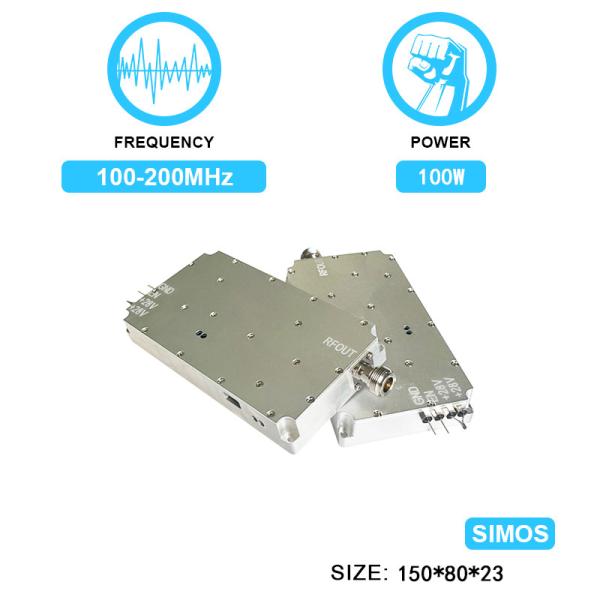

2.Size

100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS

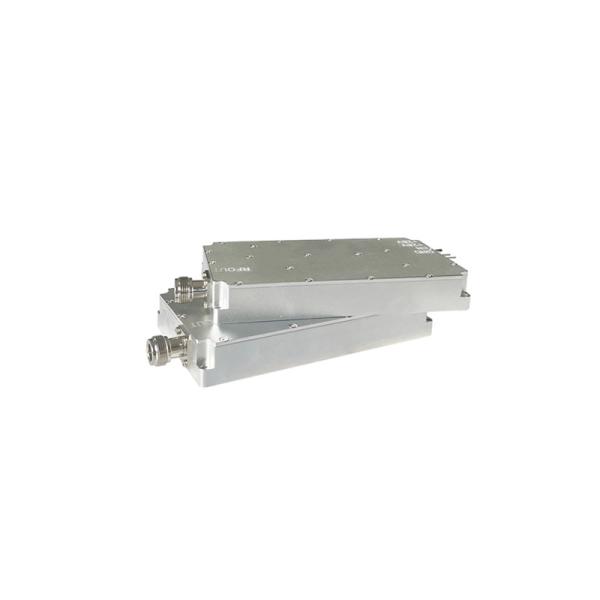

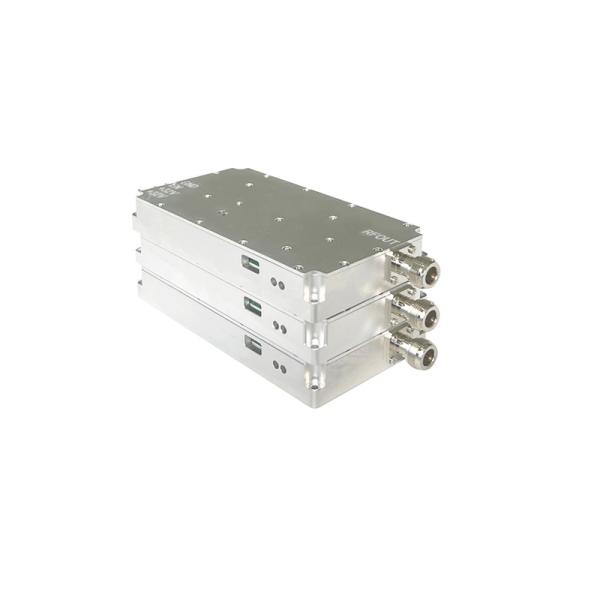

Detailed Photos

100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS

100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS

100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS

Spectrum data


100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS


100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS


100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS


100W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming With SIMOS
