Specifications
Brand Name :
OEM/ODM
Model Number :
JYT-M100-50
Certification :
CE
Place of Origin :
China
MOQ :
1Pc
Price :
Negotiate
Payment Terms :
T/T
Delivery Time :
1-3 working days after payment received
Packaging Details :
Neutral Package
Description

Product Description

Product Parameters

50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable SIMOS Voltage 6, SIMOS Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 100-200 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥47dBm 50W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤3
Working current@+28V dc ≤5.5A
High Low Temperature test Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
Center adjustment SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm
Screw Size 4-Ø3.20 mm
Weight 180g

​

2.Size

50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos

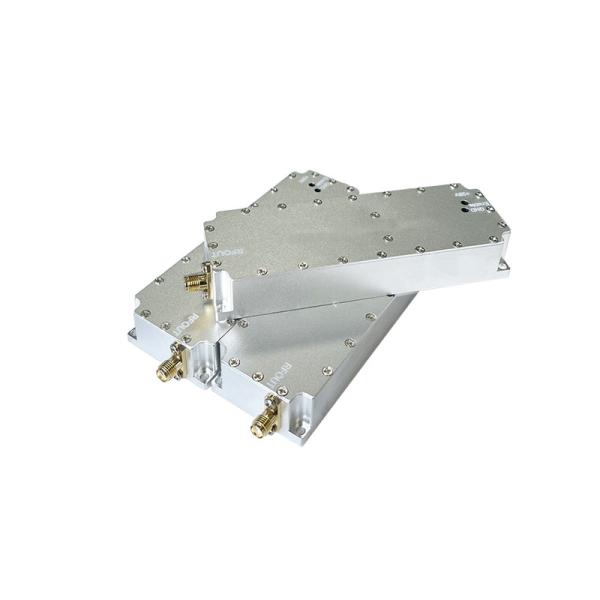

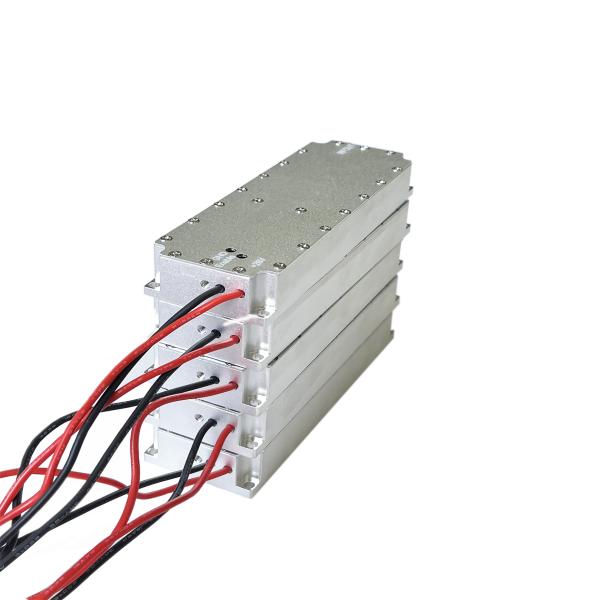

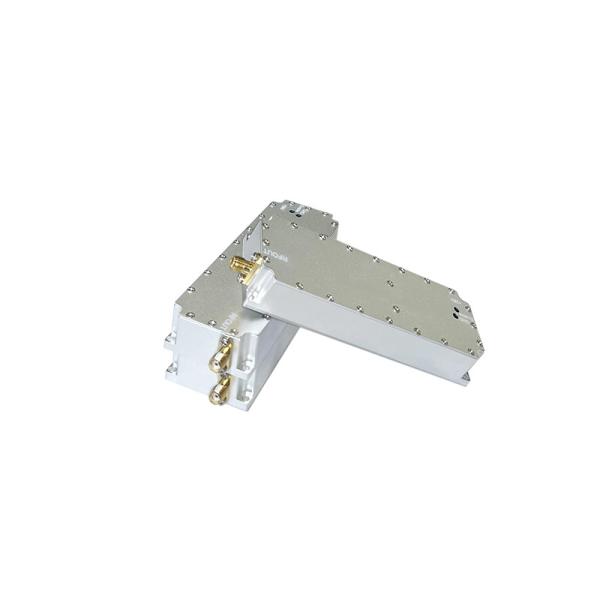

Detailed Photos


50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos

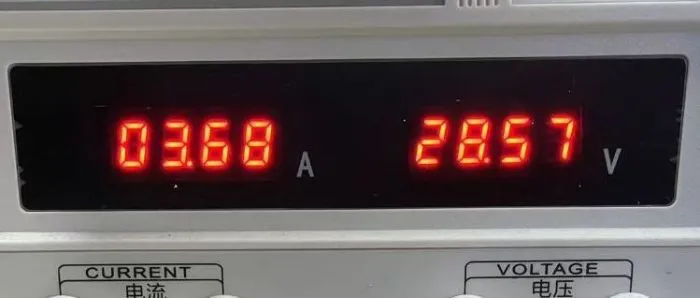

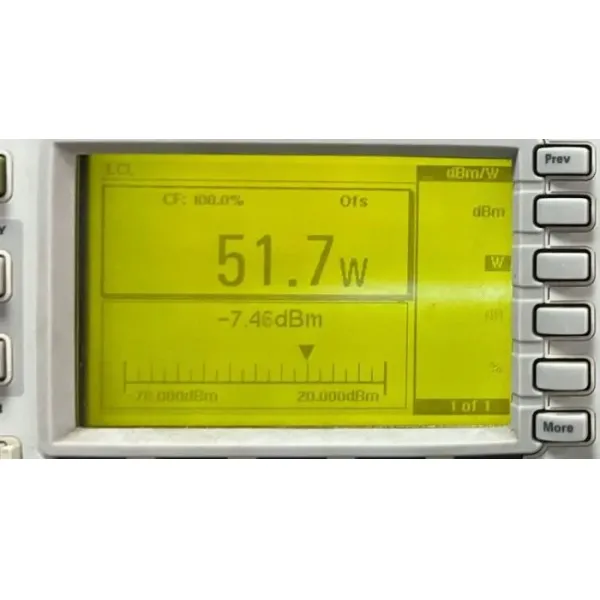

Spectrum data


50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos
50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos
50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos
50W Customisable Ulf RF Power Amplifier Module 100-200MHz Module Drone Counter Anti-Drone Jamming with Simos
