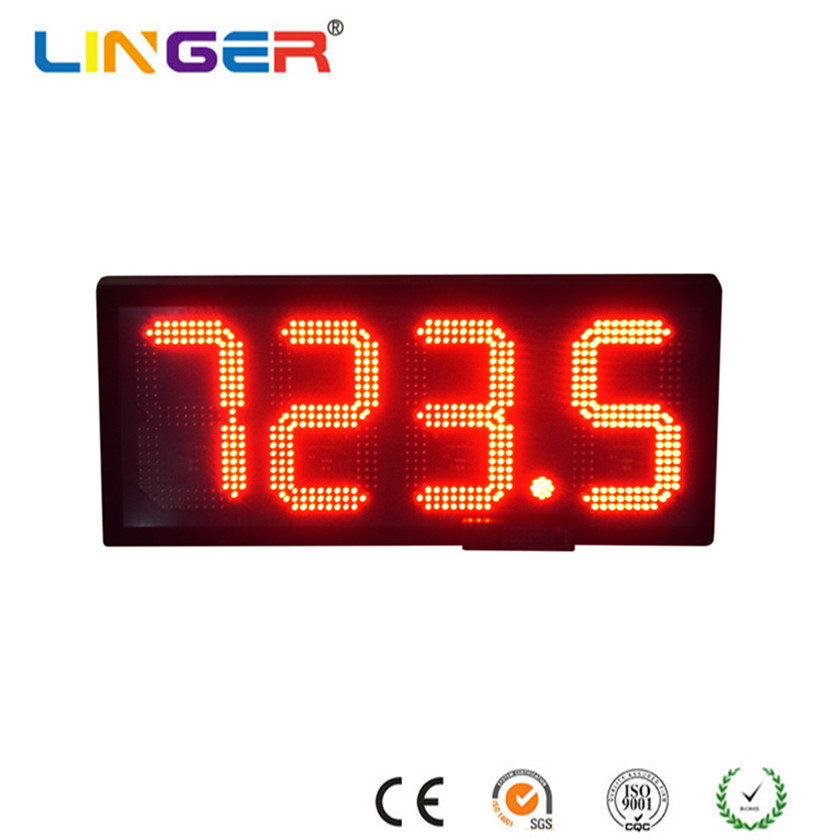

RED Electronic Gas Price Signs 1.6mm Thickness Gas Station Price Board Self Protected Control Board
RED Electronic Gas Price Signs 1.6mm Thickness Gas Station Price Board Self Protected Control Board
Specifications
Brand Name :
Linger
Model Number :
LGPS-03
Certification :
CE/ ROHS
Place of Origin :
Jiaxing,Zhejiang,China
MOQ :
1Piece
Price :
USD100.0-USD350.0
Payment Terms :
T/T
Supply Ability :
500PCS /Month
Delivery Time :
10-20 Working Days
Packaging Details :
Anti-vibration cotton+Carton+Wooden Case
Name :
Electronic Gas Price Signs
LED Color :
RED
Antenna :
High-gain
PCB Thickness :
1.6mm
Led :
Ultra-wide Angle
Power Plug :
USA/EU/CN/AUS
Wireless range :
> 320meters
Antenna Type :
External
Description


The advanced control board features intelligent reverse-polarity protection to prevent damage from incorrect power connections. The built-in multi-stage safeguarding system utilizes:


Auto-correcting Circuitry – Automatically detects and compensates for reversed +/- wiring within 0.1 seconds


PolySwitch Fuses – Resettable overcurrent protection


Isolated Power Pathways – Prevents failure cascades to LED drivers/communication modules


This triple-layer protection:
• Eliminates 98% of installation-caused failures
• Extends system lifespan by preventing collateral damage to connected components
• Reduces warranty claims with foolproof power handling
• Maintains operation during brief (＜5sec) voltage spikes up to 36V


DIGIT SIZE DIGIT HEIGHT(mm) DIGIT WIDTH(mm) LED QTY(pcs) VOLTAGE
4'' 124 75 42 DC5V
6'' 161 103 64 DC5V
8'' 201 119 98 DC5V/12V
10'' 254 152 140 DC5V/12V
12'' 304 177 182 DC5V/12V
15'' 381 216 245 DC5V/12V
16'' 412 235 350 DC12V
20'' 500 281 434 DC12V
24'' 600 350 581 DC12V
30'' 750 438 840 DC12V


DATA SHEET


Digit Color Option (Single Color) Red /Green/Yellow/White/Blue
Digit Size Option 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30''
Price Format 8.889/ 8.889/10 / 8.88/ 88.88/ 888.8/888.88...
Product Option With Iron Steel Cabinet or Only Component
Led Brightness 4000mcd - 9000mcd
Led Life > 100000 hours
Digit PCB FR4
Digit PCB Thickness 1.6mm
Wireless Controller Wireless Contrller Remote / PC software
Communication Option RF (470mhz / 433mhz) / RS485
Wireless Range >250meters
Brightness Control 6 Levels
Wireless Controller Rmote Power 1.5V AAA Alkaline battery / 9V Battery
Front Acrylic Board Thickness 5mm -9mm
Iron Cabinet Thickness 1.2mm Steel Plate
Heat dissipation With Fan
Input Voltage AC110V ~ AC220V 50/60HZ
Digit DC Power DC5V / DC12V
Power Consumption < 60Watts
Painting of Iron Case Outdoor anti-fading and anti-rust spray paint
Operating Temperature -20°C to +80°C
Waterproof IP67
Warranty 1-2Years


FAQ


Q1: What makes this system truly "plug-and-play"?
A1: Our patented 3-step setup requires:


Mounting the display (single-bolt design)


Snapping the magnetic high-gain antenna onto any metal surface


no software configuration or RF tuning needed. The system self-configures in <90 seconds.


Q2: How does the high-gain antenna improve performance?
A2: The 13dBi directional antenna:
• Triples effective range to 300m
• Penetrates 4+ concrete walls
• Maintains connection during pump truck interference

Q3: Can non-technical staff handle maintenance?
A3: Absolutely. The tool-free system features:
• Hot-swappable antenna (weatherproof twist-lock connector)
• LED diagnostic lights for instant troubleshooting


ADVANTAGE OF EXTERNAL ANTENNA:

1.Foolproof Reverse-Polarity Protection


Auto-correcting circuitry instantly compensates for +/- wiring mistakes


Triple-layer protection (diode bridge + MOSFET + resettable fuses) prevents damage


Withstands unlimited accidental reverse connections without failure


2.System-Wide Component Protection


Isolated power design prevents failure cascades


Sacrificial circuits protect expensive LED drivers and comms modules



3.Plug-and-Play Scalability


Compatible with high-gain antenna upgrades (5dBi→10dBi) for specialized deployments


Maintains watertight seal even during antenna changes
