Specifications
Brand Name :
Linger
Model Number :
LGPS-05
Certification :
CE/ ROHS
Place of Origin :
Jiaxing,Zhejiang,China
MOQ :
1Piece
Price :
USD100.0-USD350.0
Payment Terms :
T/T
Supply Ability :
500PCS /Month
Delivery Time :
10-20 Working Days
Packaging Details :
Anti-vibration cotton+Carton+Wooden Case
Name :
Gas LED Signs
Color :
Red
Luminous Intensity Led :
5000-9600mcd
Digit Height :
750mm-30in
Led :
φ5mm
Power Plug :
USA/EU/CN/AUS
Inside :
With Fans
perating Voltage :
DC5V /DC12V
Description
Product Description

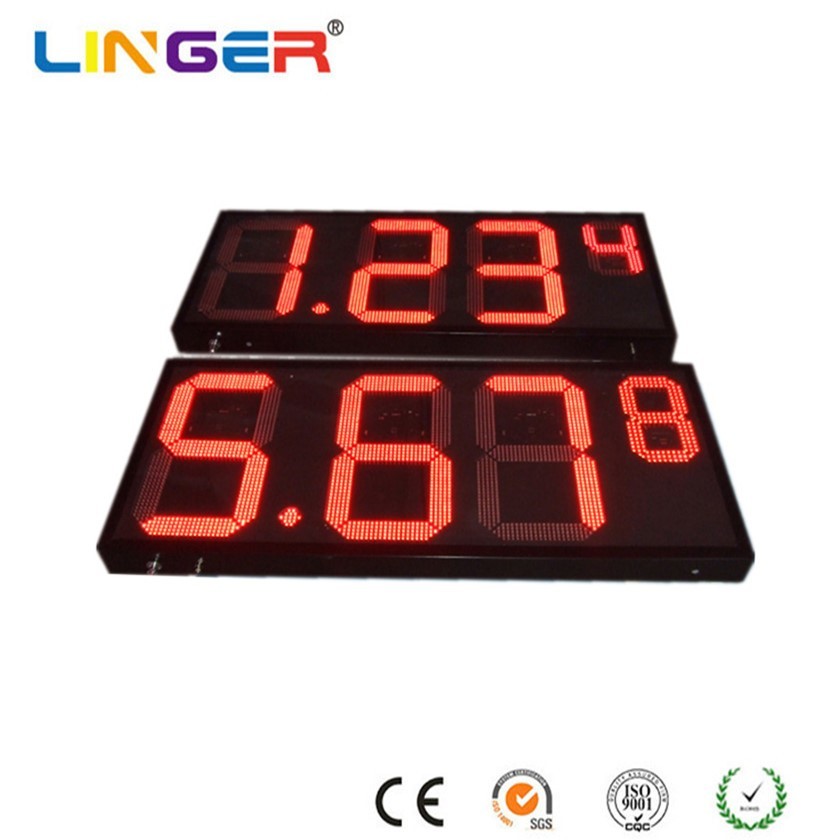

The 750mm Digit Height Wireless Radio Frequency Gas Station LED Sign represents a premier solution for fuel stations prioritizing maximum visibility and operational efficiency. With digit characters standing a commanding 750mm (approximately 29.5 inches) tall, fuel prices are effortlessly readable from a significant distance, even for passing high-speed traffic, ensuring a critical competitive advantage. The integration of wireless Radio Frequency (RF) technology is the cornerstone of its modern functionality, completely eliminating the need for extensive trenching and costly conduit wiring across the forecourt. This allows for a streamlined, hassle-free installation process and dramatically reduces upfront costs. Station managers can update prices instantly and remotely from a central console inside the store, enhancing convenience, ensuring price accuracy across all displays, and significantly improving overall safety by removing the need for employees to manually change prices near traffic. This combination of bold visibility and wireless innovation makes it an intelligent, long-term investment for any modern retail fuel operation.

Technical Specifications
COLOR BRIGHTNESS WAVE LENGTH VOLTAGE VIEWING ANGLE
RED 5000mcd 620-630 1.9V-2.4V 60°/120°/180°
YELLOW 4000mcd 585-590 1.9V-2.2V
GREEN 10000mcd 515-525 3.0V-3.4V
BLUE 8000mcd 515-525 2.5V-3.0V
WHITE 13000mcd 0 3.0V-3.4V
Data Sheet
Digit Color Option (Single Color) Red /Green/Yellow/White/Blue
Digit Size Option 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30''
Price Format 8.889/ 8.889/10 / 8.88/ 88.88/ 888.8/888.88...
Product Option With Iron Steel Cabinet or Only Component
LED Brightness 4000mcd - 9000mcd
LED Life > 100000 hours
Digit PCB FR4
Digit PCB Thickness 1.6mm
Wireless Controller Wireless Controller Remote / PC software
Communication Option RF (470mhz / 433mhz) / RS485
Wireless Range >250meters
Brightness Control 6 Levels
Wireless Controller Remote Power 1.5V AAA Alkaline battery / 9V Battery
Front Acrylic Board Thickness 5mm -9mm
Iron Cabinet Thickness 1.2mm Steel Plate
Heat dissipation With Fan
Input Voltage AC110V ~ AC220V 50/60HZ
Digit DC Power DC5V / DC12V
Power Consumption < 60Watts
Painting of Iron Case Outdoor anti-fading and anti-rust spray paint
Operating Temperature -20°C to +80°C
Waterproof IP67
Warranty 1-2Years
Frequently Asked Questions
  • 1. Q: Why is a 750mm (29.5-inch) digit height so important for a gas price sign?

    A: This large digit size is crucial for long-distance and high-speed visibility. It ensures that drivers can clearly read the fuel prices from far down the road, giving them ample time to make a decision and safely enter the station. This superior visibility is a key competitive advantage in attracting customers away from other stations.

  • 2. Q: How does the Wireless Radio Frequency (RF) system work for updating prices?

    A: The sign is equipped with an RF receiver. A corresponding wireless transmitter is connected to a computer or control console inside the station. When prices need to be changed, an employee updates them in the software and sends the new data with a single click. The transmitter then sends the new price information via a secure radio signal to the sign, which updates instantly, without any physical connection.

  • 3. Q: What are the main benefits of choosing a wireless RF system over a wired one?

    A: The benefits are significant:

    • Lower Installation Cost: It eliminates the need to trench across concrete forecourts to run conduit and electrical wires, saving thousands of dollars in labor and materials.
    • Easier Maintenance: There are no wires to be damaged by weather, construction, or corrosion.
    • Enhanced Safety and Convenience: Employees can change prices remotely from inside the store, keeping them safe from traffic and making the process quick and efficient.
  • 4. Q: Is the wireless RF signal secure and reliable?

    A: Yes, reputable manufacturers use secure, licensed RF channels or advanced spread-spectrum technology to prevent interference and cross-talk with other systems. The signals are typically encrypted to ensure that only your transmitter can communicate with your sign, providing a reliable and secure connection for critical price updates.

ADVANTAGES
  • Superior Long-Distance Visibility:

    With a massive 750mm (approximately 29.5-inch) digit height, the fuel prices are clearly legible from a very long distance and at high speeds. This ensures your station stands out and gives drivers ample time to safely decide to enter, directly attracting more business.

  • Dramatically Reduced Installation Costs:

    The wireless Radio Frequency (RF) technology completely eliminates the need for expensive and disruptive trenching across the forecourt to run conduit and data cables. This saves thousands of dollars in initial labor and material costs, offering a much faster and simpler setup.

  • Enhanced Safety and Operational Efficiency:

    Prices can be updated instantly and remotely from a central console inside the convenience store. This removes the safety hazard of employees having to manually change prices near traffic and ensures perfect price synchronization across all displays, improving accuracy and convenience.

  • Proven Reliability and Security:

    These systems operate on secure, licensed RF channels or use spread-spectrum technology to prevent interference from other devices. This provides a highly reliable and stable connection for critical price updates, ensuring your sign is always displaying the correct information.
