Juice Beverage Vertical 1T/H Oil Fired Condensing Boiler
Juice Beverage Vertical 1T/H Oil Fired Condensing Boiler
Juice Beverage Vertical 1T/H Oil Fired Condensing Boiler
Juice Beverage Vertical 1T/H Oil Fired Condensing Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LHS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
1000-2000kg
Rated working pressure :
0.7Mpa
Fuel consumption :
35kg/h
Overall size :
The models are different
operation :
Fully automatic
Usage :
Juice Beverage Machine
Description

1 T / H Evaporation Oil Fired Steam Boiler For Juice Beverage Machine

Oil Fired Steam Boiler introduction

  • Vertical three-way structure.

  • The flame extends from top to bottom, the process is long, the heat transfer is sufficient, and the NOx emission is reduced.

  • Quick start of the furnace can quickly achieve temperature and pressure rise, high thermal efficiency.

  • Automatic circulation, full combustion, improved combustion efficiency.

  • With controller protection and dual anti-backflow and exhaust thermal protection for high safety.

  • Compact structure, good color, easy to install.


Oil Fired Steam Boiler Parameter

Type LHS1 LHS1.5 LHS2
Project Unit
Rated evaporation t/h 1 1.5 2
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193
Fuel consumption Light diesel oil kg/h 70 105 140
Natural gas Nm³/h 80 120 160
LPG Nm³/h 30 45 60
City gas Nm³/h 170 265 340
a Main steam valve diameter DN 50 65 80
b Safety valve diameter DN 50 50 40×2
c Inlet diamater DN 25 32 40
d Blowoff Valve diameter DN 40 40 40
e Chimney diameter DN 350 400 500
Overall size L mm 1980 2045 2550
W mm 1980 2220 2780
H mm 3080 3380 3620
H1 mm 2300 2650 2880
φDiameter mm 1380 1680 1980
Weight T 2.3/2.8 3.3/4 4.3/5.2


Oil Fired Steam Boiler Advantage

1 . Burner adopts top burning type


2 . The flame process is long and full of combustion


3 . Reduce energy consumption


4 . Reduce operating costs


5 . Multiple data detection protection


6 . Compact structure and high combustion efficiency

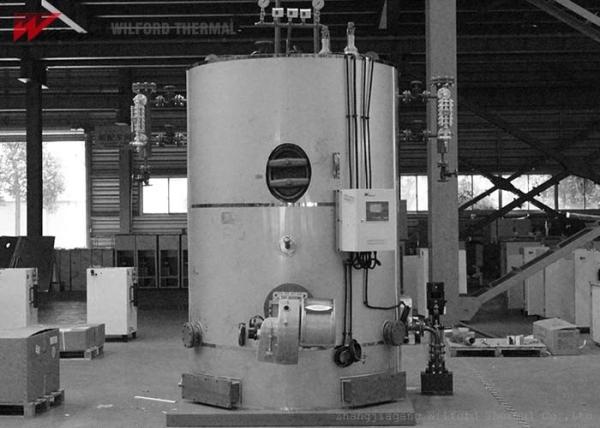

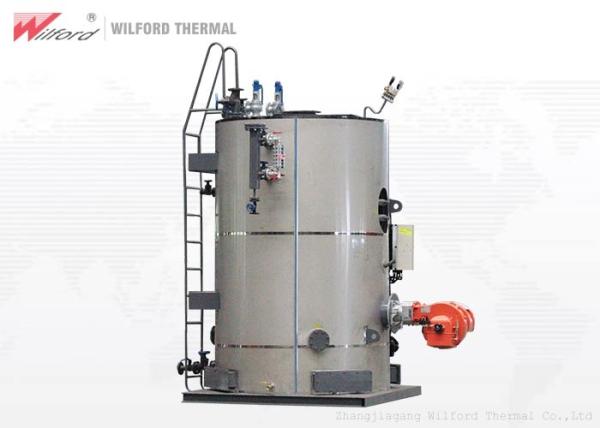

Oil Fired Steam Boiler picture

Juice Beverage Vertical 1T/H Oil Fired Condensing Boiler
