Vertical Efficient 500KG 35kg/H Automatic Steam Boiler
Vertical Efficient 500KG 35kg/H Automatic Steam Boiler
Vertical Efficient 500KG 35kg/H Automatic Steam Boiler
Vertical Efficient 500KG 35kg/H Automatic Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
500kg/h
Rated working pressure :
0.7Mpa
Fuel consumption :
35kg/h
Dimension(L*W*H) :
1830*1780*2650mm
Weight :
1.8/2.2T
Usage :
Biscuit Making Machine
Description

500KG Atomatic Control Oil Fired Steam Boiler For Biscuit Making Machine

Oil Fired Steam Boiler introduction

  • The boiler has a small amount of water, and the furnace starts very fast.

  • Temperature and pressure can rise in a short time to achieve high temperature and high pressure.

  • The internal setting of the boiler uses a variety of steam and water separation technologies to produce high quality steam.

  • With a variety of protection devices, control water level, steam pressure, to prevent overheating, the automatic recovery function of the contactor can prevent electric shock and good safety performance.


Oil Fired Steam Boiler Parameter

Type LSS0.5 LSS1 LSS1.5 LSS2
Project Unit
Rated evaporation t/h 0.5 1 1.5 2
Rated working pressure MPa 0.7/1.0 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 170/193 184/193 184/193 184/193
Fuel consumption Light diesel oil kg/h 35 70 105 140
Natural gas Nm³/h 40 80 120 160
LPG Nm³/h 15 30 45 60
City gas Nm³/h 85 170 265 340
a Main steam valve diameter DN 40 50 65 80
b Safety valve diameter DN 40 50 50 40×2
c Inlet diamater DN 25 25 32 40
d Blowoff Valve diameter DN 25 40 40 40
e Chimney diameter DN 250 350 400 500
Overall size L mm 1830 1980 2045 2550
W mm 1780 1980 2220 2780
H mm 2650 3080 3380 3620
H1 mm 2100 2300 2650 2880
φDiameter mm 1180 1380 1680 1980
Weight T 1.8/2.2 2.3/2.8 3.3/4 4.3/5.2


Oil Fired Steam Boiler Feature

1 . Fire tube flow type, shell type


2 . Realize high temperature and high pressure in a short time


3 . The flame is fully deployed and fully burned


4 . Natural circulation system


5 . Efficient and safe

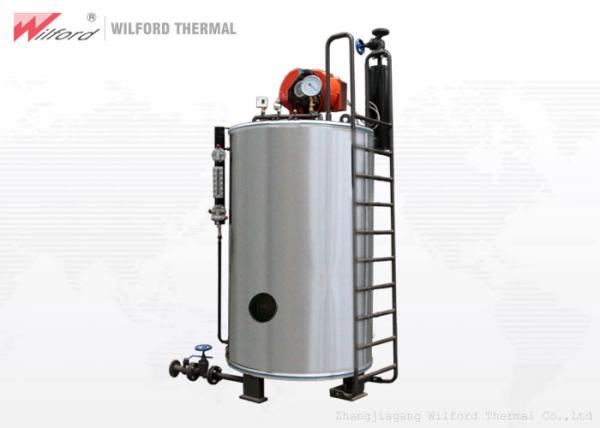

Oil Fired Steam Boiler picture

Vertical Efficient 500KG 35kg/H Automatic Steam Boiler

Project case diagram

Vertical Efficient 500KG 35kg/H Automatic Steam Boiler
