Energy Saving Thermal Oil Heater , Continuous Heating Oil Heater For Drying Industry
Energy Saving Thermal Oil Heater , Continuous Heating Oil Heater For Drying Industry
Energy Saving Thermal Oil Heater , Continuous Heating Oil Heater For Drying Industry
Energy Saving Thermal Oil Heater , Continuous Heating Oil Heater For Drying Industry
Specifications
Brand Name :
WILFORD
Model Number :
YDW
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated thermal power :
180-1440KW
oil capacity :
0.14-1.3m³
Working pressure :
0.4-1.3Mpa
Design pressure :
0.7/1Mpa
Whole installed capacity :
190-1550KW
Medium highest temperature :
320℃
Description

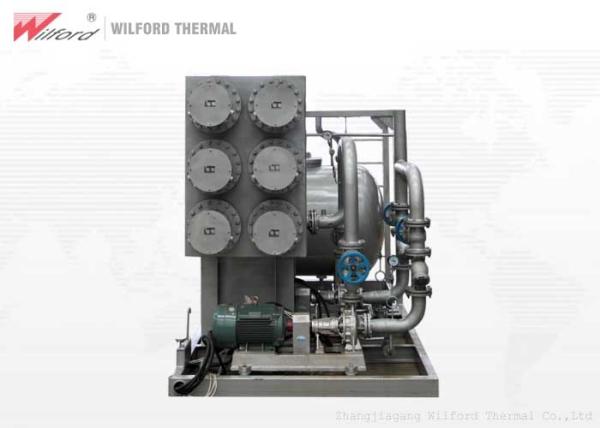

Energy Saving Electric Thermal Oil Heater For Drying Industry

Product introduction

  • This electric heating heat conduction oil furnace system mainly consists of multiple parts such as explosion-proof electric heater, hot oil pump and organic heat carrier furnace.

  • It can precisely control the temperature and control the temperature between 25 °C and 300 °C.

  • Using a heat transfer oil as a medium, a forced circulation is realized by a circulation pump.

  • Mainly provide high temperature heat energy to one or more thermal equipment to achieve continuous heat transfer.

  • It also has explosion-proof protection device, the explosion-proof grade can reach C grade, so it is absolutely safe.


Parameter

parameter name Unit YDW-180 YDW-240 YDW-270 YDW-360 YDW-1000 YDW-1440
Rated thermal power kw 180 240 270 360 1000 1440
oil capacity m³ 0.14 0.18 0.2 0.25 0.85 1.3
Working pressure mpa 0.4 0.4 0.4 0.4 0.7 0.8
Design pressure mpa 0.7 0.7 0.7 0.7 1 1
Whole installed capacity kw 190 250 280 390 1050 1550
Medium highest temperature ℃ 320 320 320 320 320 320
Component power per group kw 30 30 30 40 40 40
Medium circulation volume m³/h 20 40 40 40 100 100
DN of oil outlet mm 65 65 65 80 125 125
Voltage V 380 380 380 380 380 380
External dimension mm 2200*1200*2200 2200*1200*2200 2200*1500*2600 2200*1500*2600 4000*2200*2600 4500*2300*2920


Advantage

1 . Using heat transfer oil as carrier


2 . High precision temperature control


3 . Liquid phase forced circulation


4 . Uniform heat transfer, continuous heating


5 . Precise process temperature


6 . Stable operation and simple operation
