0.15t/H ASME Electric Steam Generator Boiler Corrosion Resistance
0.15t/H ASME Electric Steam Generator Boiler Corrosion Resistance
0.15t/H ASME Electric Steam Generator Boiler Corrosion Resistance
0.15t/H ASME Electric Steam Generator Boiler Corrosion Resistance
Specifications
Brand Name :
WILFORD
Model Number :
WFD
Certification :
CE,ISO,ASME
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated steam capacity :
0.15-1.2T/h
Rated Working Pressure :
0.7Mpa
Staturated steam temperature :
170℃
Input Power :
108-864KW
Rated Voltage :
380V
Output :
Steam
Usage :
Industrial,swimming pool,home&industrial heating,Steam Outputing
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Thermal efficiency :
98%
Description

ASME 0.7Mpa 0.15T/H Industrial Electric Steam Boiler Incoloy 800 Tube

Industrial Electric Steam Boiler Product introduction

  • All electrical components have CE and CCC marks to ensure product safety and service life.

  • Full automatic operation mode, simple operation, boiler start-up amd stop quickly. operating load adjustment range, applicable to various working conditions.

  • Each group of electric heating element is connected with concentrated bundle flange, independent setting, high mechanical strength, safe and reliable. Easy to replace and long service life.

  • Adopt safety furnace liner structure, built-in high-efficiency steam-water separation device.
  • Adopt European heating tube, Incoloy800 stainless steel material (performance far exceeds 316L material) has strong anti-scale and corrosion resistance.

Industrial Electric Steam Boiler Parameter

WFD Electrical Steam Boiler
Type WDR0.15-0.7 WDR0.2-0.7 WFD0.4-0.7 WFD0.6-0.7 WFD0.8-0.7 WFD1.0-0.7 WFD1.2-0.7
Project Unit
Rated evaporation t/h 0.15 0.2 0.4 0.6 0.8 1 1.2
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170 170 170 170 170
Input Power KW 108 144 288 432 576 720.00 864.00
Input current A 144 216 435 650 865.00 1080.00 1300
Rated Voltage V 380V
Power×Group KW×P 36KW*3 36KW*4 36KW*8 36KW*12 36KW*16 36KW*20 36KW*24
a Main steam valve diameter DN 25 25 40 40 50 50 65
b Safety valve diameter DN 25 25 25*2 25*3 25*4 25*5 25*6
c Inlet diamater DN 15 15 25 25 25 40 40
d Blowoff Valve diameter DN 25 25 25 25 25 25 25
Overall size L mm 1500 1500 1500 1500 1500 1500 1500
W mm 700 700 1400 2100 2800 3500 4200
H mm 1900 1900 1900 1900 1900 1900 1900
Weight T 200 200 400 650 820 1100 1300

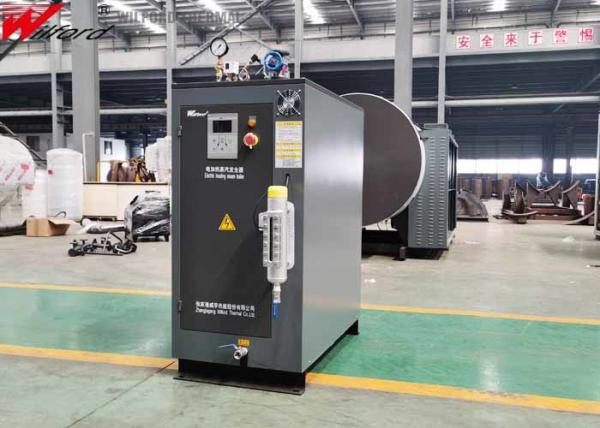

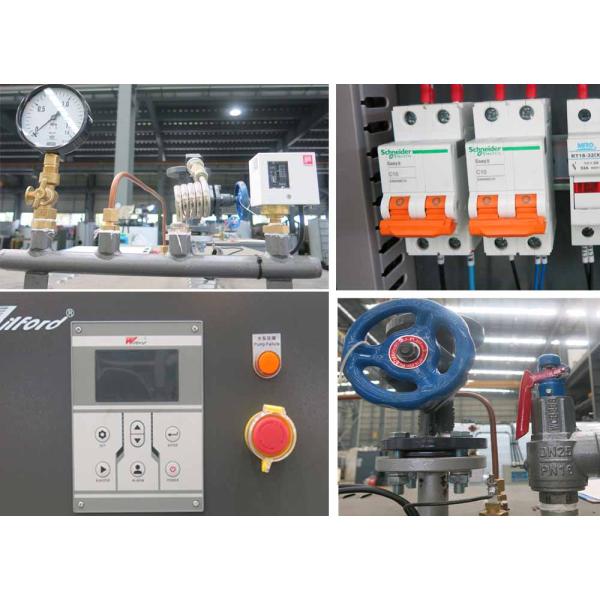

Industrial Electric Steam Boiler Product picture

0.15t/H ASME Electric Steam Generator Boiler Corrosion Resistance

Industrial Electric Steam Boiler Application

  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment

  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment

  • Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.
