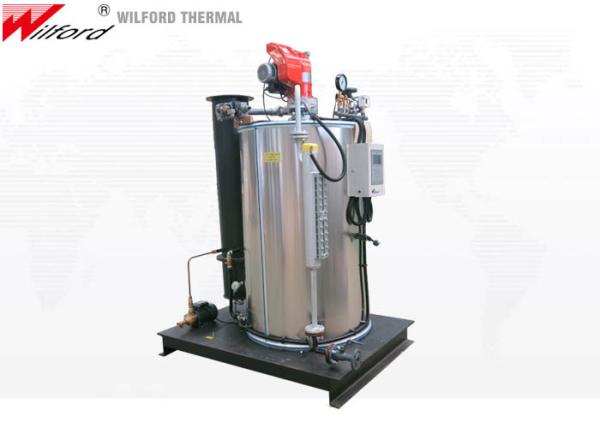

Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler
Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler
Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler
Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler
Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler
Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LSS
Certification :
CE,ASME
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Wooden box package
Rated evaporation :
0.05-0.5T/h
Rated working pressure :
0.7Mpa
Staturated steam temperature :
170℃
Usage :
Steam Outputing
Style :
Vertical
Fuel :
Oil-fired,Gas-fired,natural gas,lpg
Pressure :
Low Pressure
Type :
Natural Circulation
Product name :
Diesel Oil Fired Steam Boiler
Output :
Steam
Description

Small Vertical Water Tube Industrial Natural Gas / LPG Fired Steam Boiler

Industrial Steam Boiler introduction

  • Vertical Water Tube Industrial Steam Boiler Adopts German high quality pressure gauge,​Imported burner .Small heat loss and high thermal efficiency.

  • Built-in multi steam and water separation technology,quality steam .

  • With multiple chain protection for water level,steam pressure,overheating ,which is safe and reliable.

  • Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installtion and design.

  • Multiple chain protection,Full combustion, low energy consumption,Safety and energy saving.

  • The furnace structure has good heat absorption effect, the combustion efficiency is 95%.


Industrial Steam Boiler Parameter

Model LSS0.05-0.7-Y.Q LSS0.1-0.7-Y.Q LSS0.125-0.7-Y.Q LSS0.2-0.7-Y.Q LSS0.25-0.7-Y.Q LSS0.3-0.7-Y.Q LSS0.5-0.7-Y.Q
Project Unit
Rated evaporation Kg/h 50 100 125 200 250 300 500
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 6.8 8.5 14 16 20 33
Natural gas Nm³/h 3.5 7 8.75 15 19 22 36.5
LPG Nm³/h 1.5 3 3.8 6 7.5 9 14.5
City gas Nm³/h 8.5 18 22.5 34 43 52 88
Water capacity L 29 49.3 49.6 49.5 49.5 49.5 49.6
a Main steam valve diameter DN 15 25 25 32 32 32 50
b Safety valve diameter DN 20 20 20 25 25 25 40
c Inlet diamater DN 15 15 15 15 15 15 15
d Blowoff Valve diameter DN 20 20 20 25 25 25 25
Chimney diameter DN 80 125 125 150 150 150 250
Overall size L mm 820 880 900 1400 1500 1500 1800
W mm 890 1100 1150 1000 1100 1200 1300
H mm 1600 1800 1900 1000 2200 2200 2350
φDiameter mm 600 650 650
Weight kg 180 220 240 850 1150 1200 1680

Industrial Steam Boiler

  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.

  • Medical industry: disinfection, heating, canteen, equipment heating, equipment purification, cooking medicinal materials, medicinal materials extraction, hospital dry cleaning machine, hospital laundry room disinfection.

Industrial Steam Boiler Package and Shipping

Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler

Industrial Steam Boiler FAQ

Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.

Q : What is the Warranty for the boilers?

A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.

Q : How long should we wait for delivery?

A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.


Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
