500kW Deutz Natural Gas Generator Set with CE Certification

Specifications

Certification :

MOQ :

Price :

98000

Output Type :

AC Three Phase

Gas Source :

Natural Gas

Power :

＞200kW

Frequency :

50Hz,60Hz

Voltage :

400/230V

Fuel :

Natural Gas,Biogas

Rated Power :

500kw/625kVA

Gas Pressure :

5-7bar

Model Name :

SP500N

Engine :

Deutz

Alternator :

Meccalte

Controller :

ComAp

Canopy :

With or without

Genset Gas Inlet Pressure :

5-7bar

Production Capacity :

50pieces/Month

Description

High Efficiency Rainproof Snowproof 500kw 600kVA 1MW 2MW 3MW Power Station Deutz Engine Natural Gas LNG CNG Electric Power Generators

Container type generator set, rainproof, snowproof, windproof.

Suitable for low pressure natural gas Or high pressure natural gas fuel source.

2*500kw parallel in one container for power of 1000kw/1MW or more units in parallel for higher power.
4*500kw parallel in one container for power of 2000kw/2MW.
2*1MW in parallel for power of 1MW

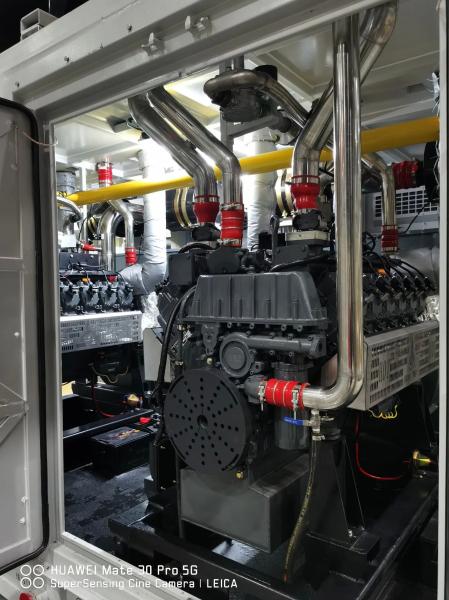

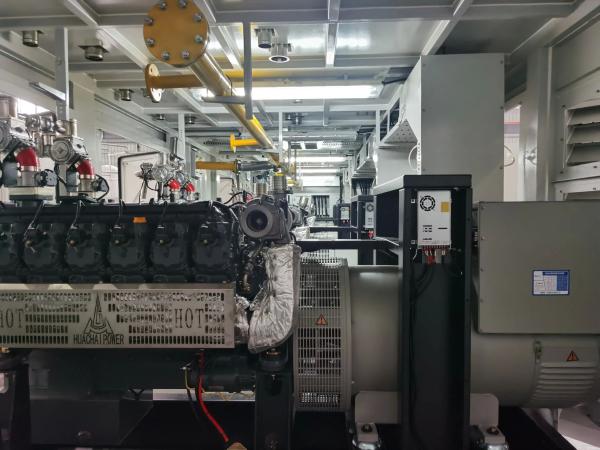

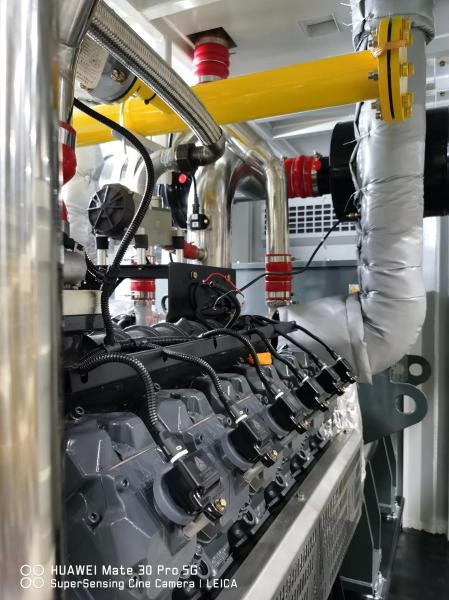

This series of container type natural gas generator sets adopts HC12V132 engine, which is a gas engine developed in depth. The maximum power of a single unit is 530kW. A single container is integrated with two 500kW generator sets and parallel control system, fuel Plumbing, heat dissipation system, switch and other system components, with a high level of safety and automation. The HC12V132 gas engine is developed on the basis of the imported DEUTZ series engine. HC12V132 gas Powertrain has been deeply developed and verified by our company. The power plant unit adopts the modular design and integration concept, matches the high-efficiency generator, unit control system, fuel supply system and cooling system, optimizes and im- proves the reliability, fuel economy, fuel adaptability, load adaptability and environmental adaptability of the unit, and is suitable for a variety of fuel types and applications to meet the needs of sustainable power projects.

All necessary engine protections, oil pressure, water temperature, over current, over voltage, overload, engine speed, frequency protection, battery voltage
Easy control system, all information easily read from the controller screen, power output,voltage,current,power factor, engine speed,oil pressure,coolant temperature,battery voltage,run hours,start numbers,alarms,historical records

Main Specifications

Model Name	SP500N
Frequency (Hz)	50
Voltage	400/230
Fuel Type	Natural gas
Rated Power(KWe)	500kw/625kva
Engine	Deutz
Alternator	Meccalte
Controller	ComAp
Canopy	With or without
Genset Gas Inlet Pressure	5-7bar

For more information about the 500kw generator set, please consult with your sales representative.Thanks.

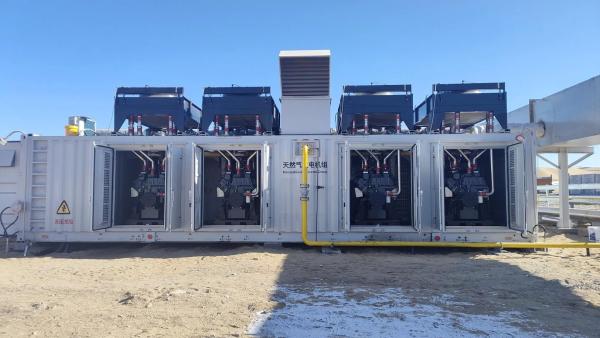

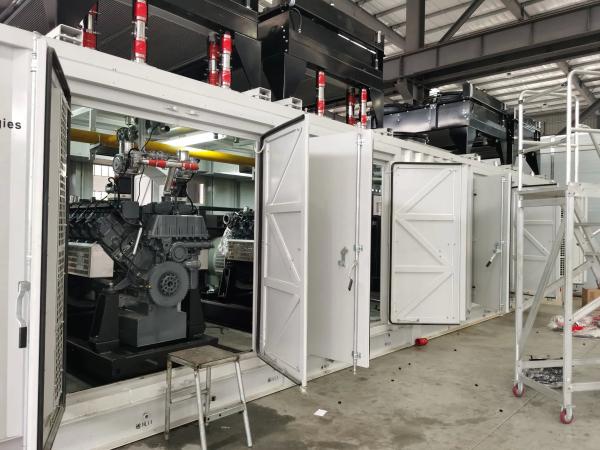

On Site Installations
