Custom Portable Syngas Analyzer CO CO2 CH4 H2 CnHm O2 Heating Value Biomass Gasification
Custom Portable Syngas Analyzer CO CO2 CH4 H2 CnHm O2 Heating Value Biomass Gasification
Custom Portable Syngas Analyzer CO CO2 CH4 H2 CnHm O2 Heating Value Biomass Gasification
Custom Portable Syngas Analyzer CO CO2 CH4 H2 CnHm O2 Heating Value Biomass Gasification
Specifications
Brand Name :
ESEGAS
Model Number :
IR-GAS-600P
MOQ :
1 unit
Payment Terms :
T/T
Delivery Time :
7-10 working days
Products Name :
Portable Syngas Analyzer
Measured Gas :
CH4/CO/CO2/H2/O2/CnHm/heating value
Accuracy :
±2%FS
Data Logging :
Yes
Outputs :
RS485/USB port
Technology :
NDIR+TCD+ECD sensor
Range :
0-100% or Customized
Response Time :
Less than 10 seconds
Weight :
About 3.5kgs
Battery :
Built-in battery
Description

Portable Syngas Analyzer CO CO2 CH4 H2 CnHm O2 Heating Value biomass gasifications steel making process applications.

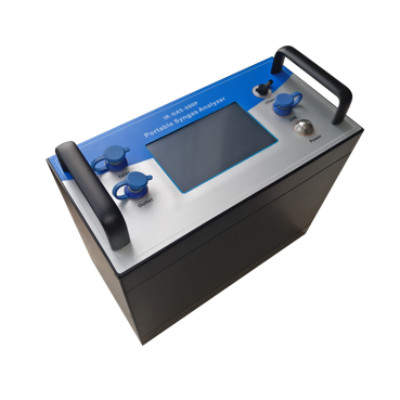

Portable Syngas Analyzers IR-GAS-600P is high-stability infrared detector for the simultaneous measurement of CO, CO2, and CH4. These gases are suitable for challenging applications such as syngas and gasification atmospheres. In addition, analyzers may use a compensated thermal conductivity cell for H2. Electrochemical O2 sensors may also measure percent levels of oxygen in the sample gas stream.

O2%+CO%+CO2%+CH4%+CnHm%+H2% All measurement in one unit

Applications

  • coal chemical process
  • steel making process as blast furnace, converter, coking, direct iron
  • ore smelting reduction
  • syngas production from Biomass and coal gas gasification processes

Components Method Range Resolution Precision
CO2 NDIR 0-5% to 100% 0.01% ≤2%
CO NDIR 0-5% to 100% 0.01% ≤2%
H2 TCD 0-5% to 100% 0.01% ≤3%
O2 ECD 0-5% to 25% 0.01% ≤3%
CH4 NDIR 0-5% to 100% 0.01% ≤2%
CnHm (optional) NDIR 0-5% to 10% 0.01% ≤2%
Note: Measurement range can be customized by the requirement. Max: 6 components at the same time.
Response Time (TD+T90) <10s (NDIR)
Response Time 15min
I/O port RS232
Work temperature 0～50℃
Relative humidity 5～85%
Ambient air pressure 86～108kPa
Power supply AC 220±10%V 50Hz±1Hz
Weight About 3.5kg
