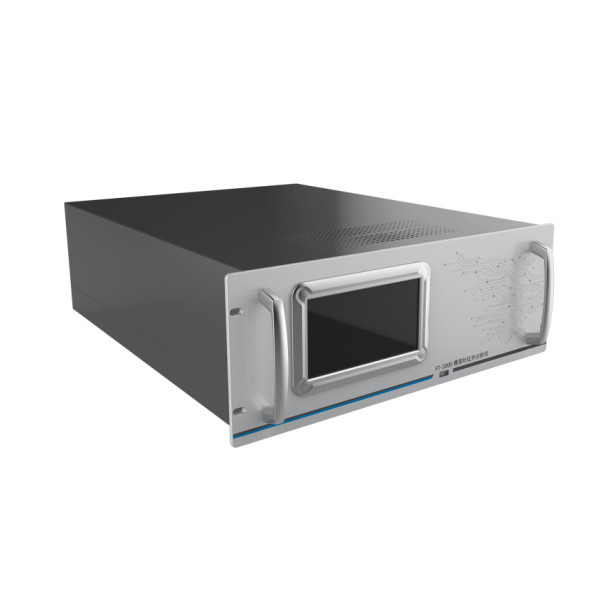

NH3 HCL HF H2S CO CO2 O2 Laser Gas Analyser TDLAS Technology 19 Inch
NH3 HCL HF H2S CO CO2 O2 Laser Gas Analyser TDLAS Technology 19 Inch
Specifications
Brand Name :
ESEGAS
Model Number :
ESE-LASER-100
MOQ :
1 unit
Payment Terms :
T/T
Delivery Time :
14 working days
Principle :
Tunable Diode Laser Absorption Spectroscopy (TDLAS) Technology
Repeatability :
≤1%
Response time (T90) :
≤30s
Analog output :
4-20mA output (isolation, maximum load 750Ω)
Digital communication :
RS485/RS232/GPRS
Power :
100VAC ~ 240VAC
Description

Laser Gas Analyser TDLAS Technology 19 Inch NH3/HCL/HF/H2S/CO/CO2/O2

ESE-LASER-200 Laser Gas Analyser is a 19" 4U TDLAS gas analyzer for industrial online analysis .The gas analyzer combine multiple reflection long optical path technology that can analysis gas including NH3,HCL,HF,CH4,H2S,CO,CO2,O2 .

Specifiications

Linearity Error ≤±1%FS
Repeatability ≤±1%
Zero Drift ≤±1%FS/half year
Span Drift ≤±1%FS/half year
Calibration Cycle ≤2 times/year
Response time ≤30S
Interface Signal
Analog Output 2*4-20mA output
Analog Input 2*4-20mA output
Digital Output RS485/RS232/GPRS
Relay Output 3(24V,1A)
Operating Conditions
Power Supply 100VAC-240VAC
Purge Gas 0.3Mpa-0.8Mpa
Ambient Temperature ’-20℃-+60℃
