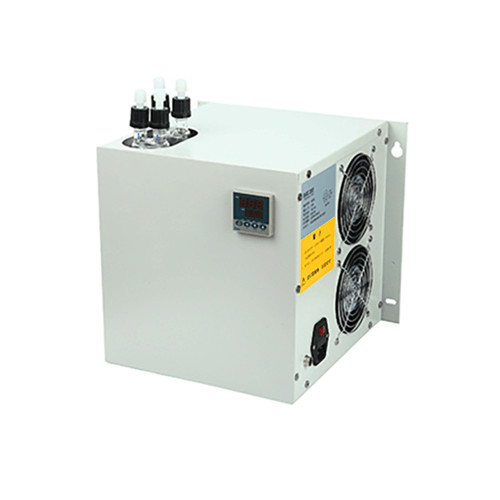

4NL/Min Gas Analyzer Accessories 400W ESE230 Gas Cooler For CEMS Applications
4NL/Min Gas Analyzer Accessories 400W ESE230 Gas Cooler For CEMS Applications
Specifications
Brand Name :
ESEGAS
Model Number :
ESE230
MOQ :
1 unit
Delivery Time :
1-2 Working days
Name :
Gas Analyzer Accessories
Condensing method :
Fluoride-free compressor
Inlet gas temperature :
≤180℃
Condensing control temperature :
Factory set at 4.0℃
Gas capacity :
4NL/min
Inlet gas dew point :
≤80℃（@ 25℃）
Inlet gas pressure :
≤3bar
Description

Gas Analyzer Accessories Gas Cooler Dual-Channel Gas Condenser For CEMS Applications

ESE230 Gas Cooler ( Gas analyzer accessories ) is a kind of compressed high efficiency moisture removing, used in gas pretreatment system of gas analysis system. It can protect moisture and corresponding corrosion to the gas analyser and guarantee the lifespan lifespan of gas analysers.

Specifications

Items Descriptions
Working ambient temperature 5℃～50℃
Inlet gas temperature ≤180℃
Inlet gas dew point ≤80℃(@ 25℃)
Outlet gas dew point ≤4℃(@ 25℃)
Condensing control temperature Factory set at 3.0℃
Temperature controller fluctuation 3.0℃±1.0℃(@ 25℃)
Condensing method fluoride-free compressor
Gas condensing pipe A+B glass heat exchange pipes, diameter * heightΦ40mm*150mm
Inlet gas pressure ≤3bar
Allowed gas differential pressure range ≤3mbar(gas flow 2NL/min)
Gas capacity 4NL/min
Trouble alarm Low temperature alarm, deviation alarm, power off alarm; alarm status dry contact output, capacity 250Vac/1A
Peristaltic pump 5r/min
withstand voltage testing standard AC1500V
Leak current ≤3.5mA
Inlet gas connector OD6mm
Water drainage port OD6mm
Condensing working temperature ≤30min
Installation method Wall-mounted plate installation
Power supply 220VAC 50Hz
Power supply consumption 400W
Cabinet size(W×H×D) 310*280*290mm
Cabinet color RAL7035 grey
Weight 18kg
4-20mA output optional
