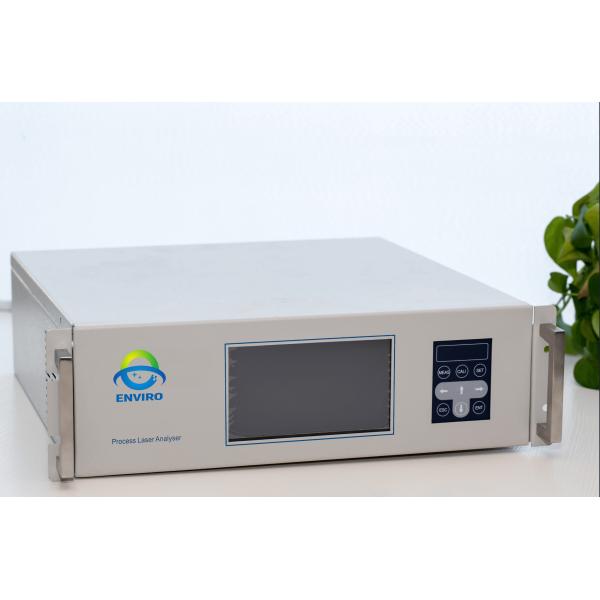

Online Trace Gas Analyzer TDLAS Technology PPB To PPM Measurement 194U Type
Online Trace Gas Analyzer TDLAS Technology PPB To PPM Measurement 194U Type
Specifications
Brand Name :
ESEGAS
Model Number :
ESE-LASER-U500
MOQ :
1 unit
Name :
Trace Gas Analyzer
Measured Gas :
NH3/HCL/HF/CO/CO2/CH4
Technology :
TDLAS
Digital output :
RS232/485
Sampling flow rate :
1L/min
Gas temperature :
<=60℃
Range :
PPB To PPM
Description

Trace Gas Analyzer TDLAS Technology Ppb To Ppm Measurement Online 19"4U Type

Trace gas analyzer TDLAS technology ESE-LASER-U500 model based on the principle of tunable semiconductor laser absorption spectroscopy (TDLAS), laser gas analyzer scans and analyzes the gas absorption lines of specific wavelength, and realizes the gas concentration measurement by combining the digital lock-in amplifier and the advanced technology of long optical path. laser gas analyzer can realize high resolution, high precision, stable and reliable measurement of trace gases, and meet the requirements of process analysis and environmental monitoring

Features

☑ ppb ultra high sensitivity Spectrum single line scanning, precise lock test wavelength

☑ Automatic compensation of atmospheric temperature, pressure and humidity

Performance parameters
Gas Range Resolution Repeatability Linearity Drift
NH3 0-2000ppb 2ppb ≤2%FS ≤2%FS ≤ ±2%FS
CH4 0-5000ppb 5ppb ≤0.2%FS ≤1%FS ≤ ±0.5%FS
CO 0-50ppb 0.02ppm ≤2%FS ≤2%FS ≤ ±2%FS
CO2 0-500ppm 1ppm ≤1%FS ≤1%FS ≤ ±1%FS
HCL/HF 0-2000ppb 1ppb ≤2%FS ≤2%FS ≤ ±2%FS
Warm up time 30mins Digital output RS232/485 Analog output
Power supply

AC100-240V/47-63Hz

120W

 Relay output Load capacity: AC/DC 24V/1A; concentration overrun alarm, transmittance and laser temperature abnormal alarm (customized)
Environmental parameters
Optical path Above 30 meters Gas temperature <=60℃ Gas Pressure
Sampling flow rate 1L/min Environmental temp -10~55℃ Environmental pressure
Size 5U Weight 10kgs

Applications

☑ Trace gas measurement

☑ Greenhouse gas measurement

☑ Measurement of gas emission plume diagram

☑ Air quality monitoring
