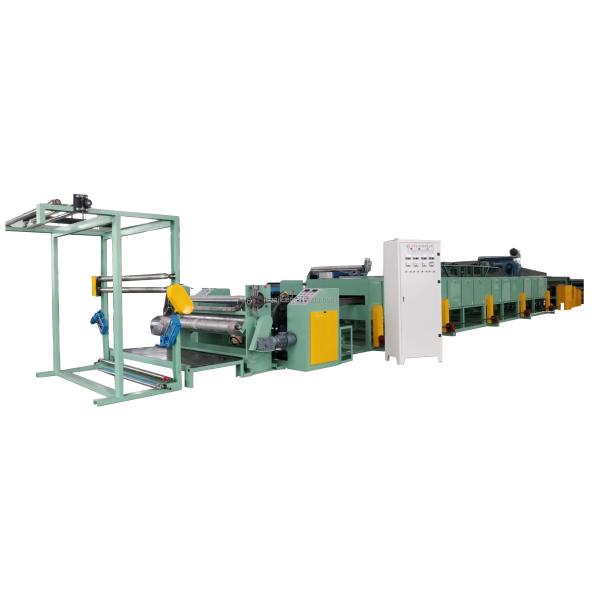

1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
Specifications
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Application :
backside of carpet/slipper
Automatic Grade :
Automatic
Production Capacity :
5-45m/s
Place of Origin :
Jiangsu, China
Brand Name :
GAOQI
Voltage :
380V, 50Hz, three-phase
Power :
120KW, 120KW
Dimension(L*W*H) :
23600 * 2500 * 2100mm
Weight :
15000
Features :
12M OVEN
Warranty :
1 Year
Brand :
GAOQI
Power supply :
380V, 50Hz, three-phase
Oven :
12M
Process speed :
5-45m/min
Temperature control :
PID automatic
size :
23600 * 2500 * 2100mm
Cooling mode :
air cooling
Dispensing method :
round dot plastic
Delivery Time :
30DAYS
Packaging Details :
standard export container: inner packing type: film
external packing type: wooden case
Port :
shanghai
Supply Ability :
10 Set/Sets per Month dot coating laminating machine
Price :
$46,000.00/sets >=1 sets
MOQ :
1 PC
Description
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant

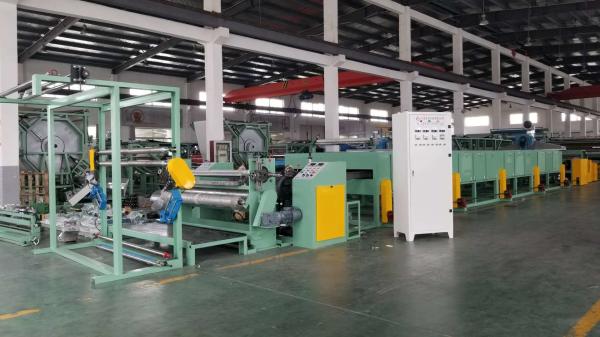

OUR FACTORY
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
SOLUTION:
We provide customized machines with many years of experience
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
PRODUCT PARAMENTERS
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
Technical working Process:
Anti-deviation feeding cloth-screen dot printing-automatic far infrared needle loading-needle plate stenter electric heating drying-automatic needle removal-air cooling-counting-rewinding.
Brand
GAOQI
Power
380V, 50Hz, three-phase
Oven
12M-25M
Process speed
5-45m/min
Power
120KW
Temperature control
PID automatic
size
23600 *2500 * 2100mm
Cooling mode
air cooling
Dispensing method
round dot plastic

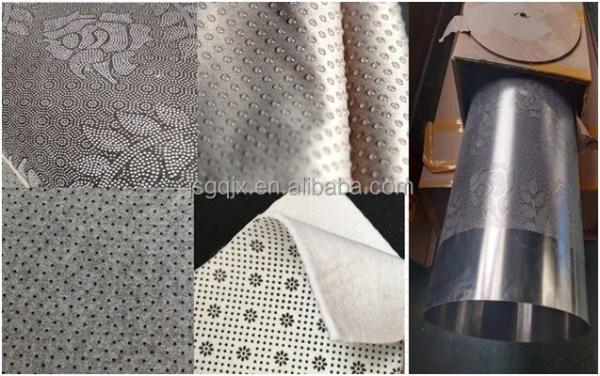

Application:
This machine can be used to print plastic dots and various flower-shaped dots on cotton, chemical fiber, blended, non-woven fabrics and other fabrics. It is used for the production of knitted dot plastic glove fabrics, decorative cloths and carpets, etc., which has a non-slip effect.
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
CUSTOMER VISIT
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
OUR HOT SALES
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
CONTACT INFO
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
FAQ
1800mm Plastic Dropping Machine for PVC Dots Coating on Carpets in Manufacturing Plant
