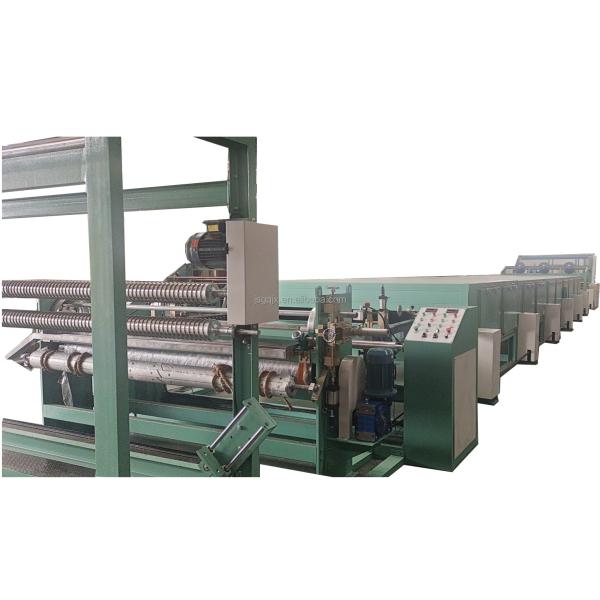

Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Specifications
Type :
Coating Machine
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Application :
APPAREL, Textiles, non-slip seat cover,production of knitted and dotted gloves,etc
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380v/50hz/3p
Packaging Type :
Film
Packaging Material :
Plastic
Place of Origin :
Jiangsu, China
Brand Name :
GAOQI
Dimension(L*W*H) :
20150mm*2740mm*2080mm
Weight :
15000 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
COLOR :
Customized
Dimensions(mm) :
20150mm*2740mm*2080mm
Function :
print plastic round dots on fabrics
Certification :
ce
After-sales Service Provided :
Online support
Operating type :
left hand or right hand
Oven length :
12L / 15L / 18L or more
Gluing method: :
drip moulding screen roller
Machine width: :
1800mm-4500mm (electric amplitude modulation)
Marketing Type :
New Product 2022
Packaging Details :
Inner Package : Protective Film
External Package: Standard Export Container
Port :
Shanghai Port
Supply Ability :
30 Set/Sets per Month
Price :
$36,000.00 - $99,999.00/sets
MOQ :
1 PC
Description
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
OUR FACTORY
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
SOLUTION:
We provide customized machines with many years of experience
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
PRODUCT PARAMENTERS
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p
Technical working Process:
Anti-deviation feeding cloth-screen dot printing-automatic far infrared needle loading-needle plate stenter electric heating drying-automatic needle removal-air cooling-counting-rewinding.
Brand
GAOQI
Power
380V, 50Hz, three-phase
Oven
12M-25M
Process speed
5-45m/min
Power
120KW
Temperature control
PID automatic
size
23600 *2500 * 2100mm
Cooling mode
air cooling
Dispensing method
round dot plastic

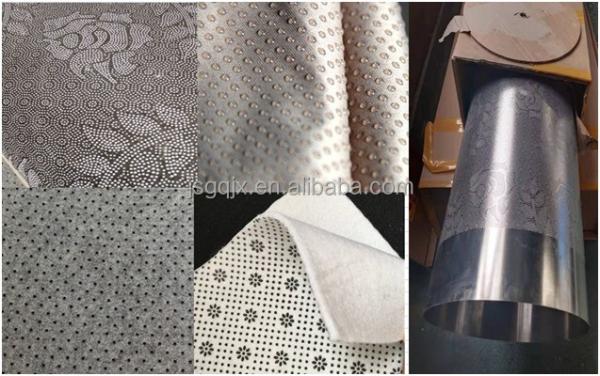

Application:
This machine can be used to print plastic dots and various flower-shaped dots on cotton, chemical fiber, blended, non-woven fabrics and other fabrics. It is used for the production of knitted dot plastic glove fabrics, decorative cloths and carpets, etc., which has a non-slip effect.
