CQ grade Steel Industry Continuous Galvanizing After Cold Rolling Machine
CQ grade Steel Industry Continuous Galvanizing After Cold Rolling Machine
CQ grade Steel Industry Continuous Galvanizing After Cold Rolling Machine
CQ grade Steel Industry Continuous Galvanizing After Cold Rolling Machine
Specifications
Brand Name :
JJRS
Place of Origin :
China
MOQ :
1
Price :
USD$1,000,000~USD10,000,000
Payment Terms :
T/T, L/C
Supply Ability :
1-10set/year
Delivery Time :
7-10 months
Packaging Details :
Wooden box;
Application :
building material, panel, roof
Material :
Hot rolled coil, cold rolled coil
Width :
700mm-1250mm
Thickness :
0.16mm-1.8mm
Zinc coating :
30-300g/m2
name :
Steel strip CGL continuous galvanizing line 0.13~1.8mm*700~1450mm (metal ss)
keyword :
Steel Continuous Galvanizing Line
type :
continuous
process :
hot dip
material :
steel metal ss cs
componet :
entry looper
capacity :
250,000t/year
Description

CGL continuous galvanizing line for steel industry after cold-rolling machine

0.16~1.8mm*700~1250mm (metal ss)

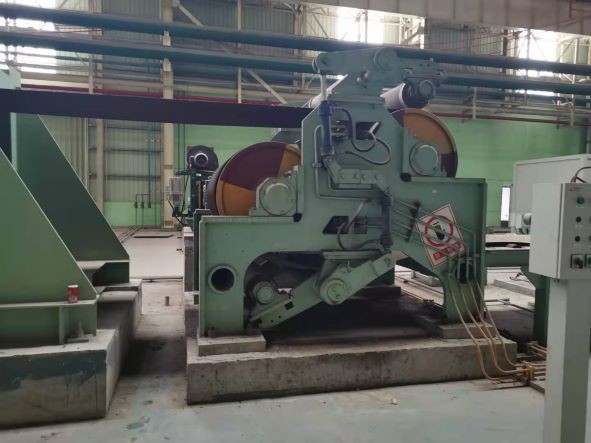

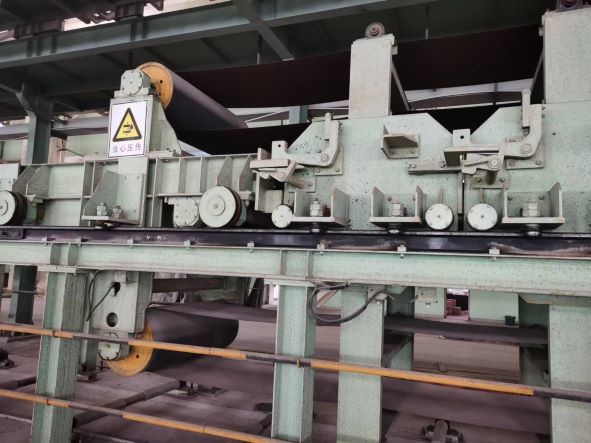

This production line is galvanizing line of cold rolled steel. It mainly includes uncoiling section, welding platform, entry looper, annealing furnace, zinc pot, air knife system, cooling system after galvanizing, tension leveler, passivation section, exit looper, reserve postion for electrostatic oiler and some other equipments. The production line's product position is architectural material, roof, panels, etc. Its function inlcudes annealing, galvanizing, finishing, straighterning, pre-painting oil. etc.

The strip goes into the annealing furnace for annealing reduction. After coming out of the annealing furnace, steel strip will be hot dip galvanized in the zinc pot under airtight condition, the coating thickness is controlled by air knife, and the galvanized strip steel will be obtained by cooling process. The surface quality and straightness of the coating are improved by tension leveler. Post-treatment includes passivating treatment. A position for electrostatic oiler is reserved to meet subsequent production line upgrade.

Name cgl continuous galvanizing line for steel industry after cold-rolling machine
Application Building Material,roof, panel
Width 700mm-1250mm
Thickness 0.16mm-1.8mm
Capacity 250,000t/year
Zinc Coating

30-300g/m2
Component payoff reel, tensinon leveller,entry looper etc.
Keyword steel Continuous Galvanizing Line
Type Continuous
Process Hot dip
Coil Material steel metal ss cs
Material Hot rolled coil, cold rolled coil

CQ grade Steel Industry Continuous Galvanizing After Cold Rolling MachineCQ grade Steel Industry Continuous Galvanizing After Cold Rolling Machine

Adhering to the philosophy of advanced technology, professional team, customers first and perfect service in mind, JJRS will definitely provide customers high and reliable products and services at the most reasonable prices with its exquisite technology and scientific management. We, by the reputable brand of JJRS, are always ready to cooperate with all friends from all stages and lives, and to endeavor decisively for a more bright future with the principle of work and develop together, mutual benefit and win-win.
