Steel 10 X 5 Tipper Trailer , Hydraulic Dump Trailer With Light Protectors
Steel 10 X 5 Tipper Trailer , Hydraulic Dump Trailer With Light Protectors
Steel 10 X 5 Tipper Trailer , Hydraulic Dump Trailer With Light Protectors
Steel 10 X 5 Tipper Trailer , Hydraulic Dump Trailer With Light Protectors
Specifications
Brand Name :
HONGLE
Model Number :
10x5
Certification :
ISO9001
Place of Origin :
jiangsu china
MOQ :
1 container
Price :
Negotiable
Payment Terms :
FOB
Supply Ability :
Annual production capacity 5000 pcs
Delivery Time :
20 days
Use :
Truck Trailer
Typ :
Full Trailer
Materia :
Steel
Customizatio :
YES
Description

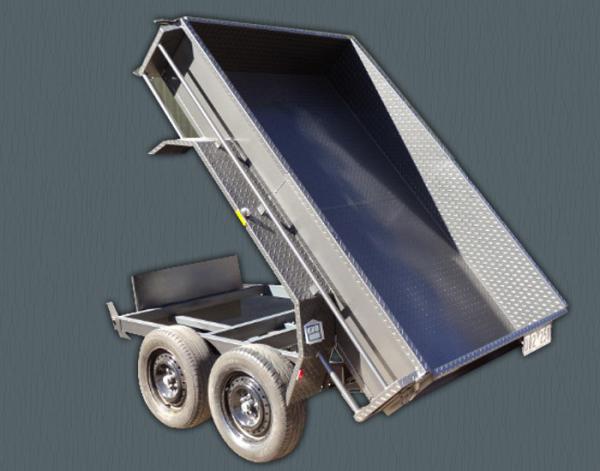

Galvanised 10 X 5 Tipper Trailer , Hydraulic Dump Trailer With Light Protectors

STANDARD FEATURES:

  • Checker plate rolled body
  • 5 stage ram 5 Ton
  • Brakes Both Axles with Brake Away Unit /Cable hand brake fitted
  • Checker plate front & rear opening tailgates
  • Swing handles to secure the tailgates
  • Full length Side tie rails
  • Front & rear 14mm solid tie rails
  • Angle skid rails, for extra strength & safety
  • V-type draw bar RHS square tube
  • Spare wheel holder across draw bar
  • Single acting low volume HI-pressure pump
  • Lockable Tool Box on front for Pump & battery
  • Light Protectors
  • ADR approved lights and reflectors/
  • Mudflaps comply with AUS standards
  • Rims New 14”5.5” Sunraysia
  • New 185C 14” 8PLY 850Kg Tyres
  • Plug holder welded to the draw bar
  • Quality enamel finished

SPECIFICATIONS:

BODY/FLOOR / 2.1MM 350mm Sides Rolled Checker Plate 2 Piece Tub
CHASSIS TOP & BOTTOM 100x50 Bottom Chassis 75x50mm Top Chassis RHS TUBE
RAM HYDRAULIC 5-STAGE / 5-TON
PUMP / BATTERY HI-PRESSURE PUMP/ ELECTRIC POWER PACK 12V H/D Battery
SWITCH ELECTRIC SWITCH 3M CORD WATERPROOF
DRAW BAR 125X75X3mm RHS TUBE
TOOLBOX LOCKABLE BOX ON FRONT FOR PUMP & BATTERY
SPRINGS 6 LEAF ROCKER ROLLER LOAD SHARING SRPINGS
AXLE HEAVY DUTY 45mm SQUARE DURAFLEX
HUBS 14” 5-Stud Hubs 10” Electric Drum
BEARINGS B-type Inner large L68149 / B-type outer small LM12749
BRAKES/ELECTRIC 10” Drum Both Axles with Brake Away Unit True Cable Hand Brake
TYRES/8 PLY 185R14C 8PLY Radial BRAND NEW WHEEL 850KG CAPACITY
COUPLING 50mm Electric 3500kg /with Hand Brake
LIGHTS ADR APPROVED LED LIGHTS AND SIDE CLEARANCE LIGHTS WITH REFLECTORS
PLUG 7-PIN LARGE ROUND (All wiring in condue)

Our Services:

1. All the machines will b full tested before shipment.

2. The total machine guarantee for 12 months.

3. 24 hours technical support-email, telephone or video online.

4. User-friendly English manual for machine using and maintaining.

5. Several sets wearing parts will be free for you.
