Description
Heavy Duty Galvanized Steel Bar Grating
Serrated welded floor grate manufactured from ASTM A36 galvanized steel and Q235 materials, designed for demanding industrial walkways and platforms.
Product Overview
Galvanized steel grating is the optimal solution for wet, slippery environments where corrosion resistance is essential. Our mild steel gratings undergo hot-dip galvanizing in specialized baths featuring a 7-tank surface cleaning process. The zinc used for galvanizing maintains 99.95% purity, with coating compliance to IS-3202/IS-4759/IS-2629/IS-2633/IS-6745, ASTM-A-123, and equivalent international standards.
Applications
  • Industrial platforms and walkways
  • Ladder treads and step systems
  • Handrail and guardrail systems
  • Channel flooring and trench covers
  • Railway bridge walkways and access roads
  • High tower framework platforms
  • Drain covers and manhole covers
  • Road crossing gates and barriers
  • Multi-level parking structures
  • School, factory, and enterprise facilities
  • Playground and garden villa fencing
  • Residential window guards and balcony railings
  • Highway and railway safety barriers
Manufacturing Excellence
Our steel grating is produced using world-class manufacturing equipment that precisely arranges bearing bars and cross bars in longitudinal and latitudinal patterns. Cross bars are pressure-locked into bearing bars through high-tension resistance welding controlled by computer systems, ensuring superior quality with firm welds, smooth surfaces, and exceptional structural strength.
Technical Specifications
Bearing Bar 25mmx3mm 30mmx3mm 35mmx5mm 40mmx5mm 50mmx6mm Custom-made
Bearing Bar Pitch 30mm 35mm 38mm 40mm 50mm Custom-made
Cross Bar Pitch 33mm 54mm 64mm 100mm 150mm Custom-made
Width 914mm 1000mm 2000mm Custom-made
Length 1000mm 2000mm 3000mm 5800mm 6000mm Custom-made

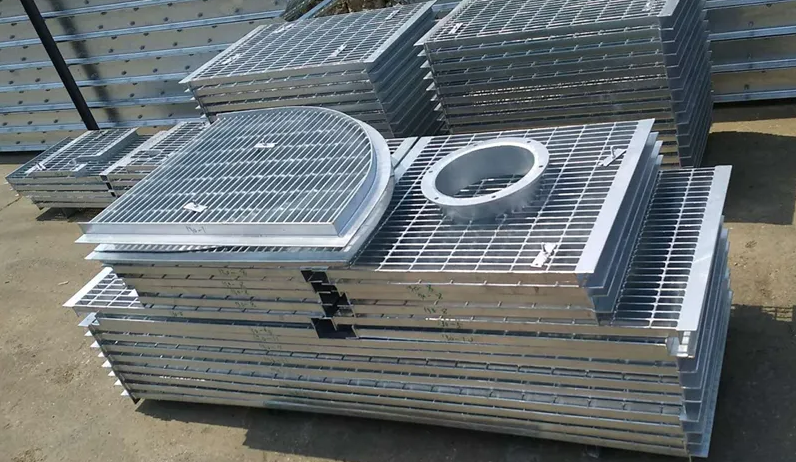

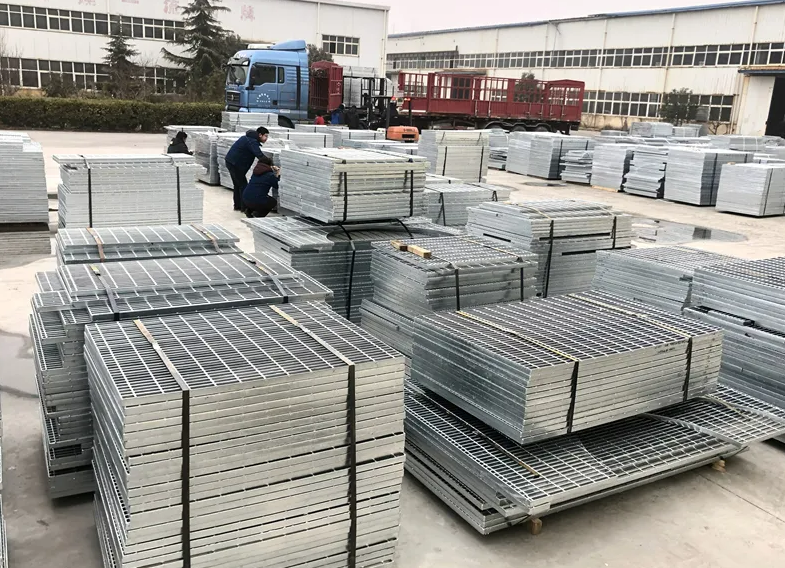

Product Images
Heavy Duty Serrated Welded ASTM A36 Galvanized Steel Grating for Industrial Walkways and Platforms Heavy Duty Serrated Welded ASTM A36 Galvanized Steel Grating for Industrial Walkways and Platforms
