Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

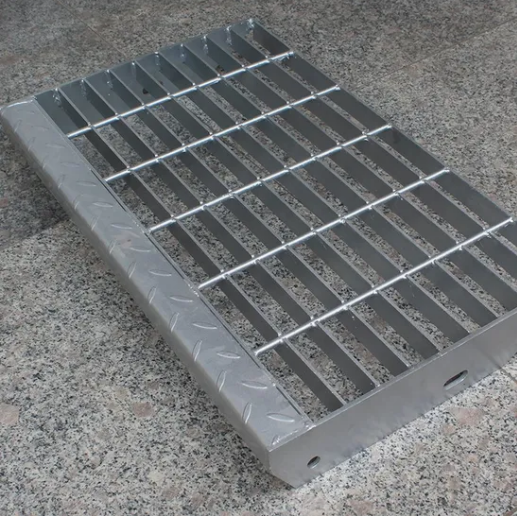

Galvanized Steel Grating Panels & Stair Treads
Steel grating, also known as bar grating, features a square grid pattern formed by flat bearing bars and cross round bars. These durable panels are primarily used as gutter covers, steel structure platform walkways, and stair treads for steel ladders.
Material Composition
Our steel grating is typically manufactured from carbon steel with hot-dip galvanized surface treatment to prevent oxidation. We also offer stainless steel and aluminum steel options to meet various environmental and application requirements.
Classification & Specifications
By Welding Method:
  • Machine Forge Welding Type
  • Handmade Manual Welding Type
By Loaded Flat Steel Surface:
  • Flat Type
  • Tooth Type
  • "I" Type
By Application:
  • Trench/Ditch Covers
  • Platform Walkways
  • Stair Treads
By Material Type:
  • Mild Steel
  • Aluminum
  • Stainless Steel
Load Bearing Bar Pitch & Recommended Width
Load Bearing Bar Pitch Recommended Width (mm)
30 125 | 155 | 185 | 215 | 245 | 275 | 305
40 125 | 165 | * | 205 | 245 | 285 | 325
Technical Specifications
No Item Description
1 Bearing Bar 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4" etc.
3 Cross Bar Pitch 38, 50, 76, 100, 101.6mm
4 Material Q235, A36, SS304
5 Surface Treatment Black, Hot Dipped Galvanizing, Paint
6 Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657

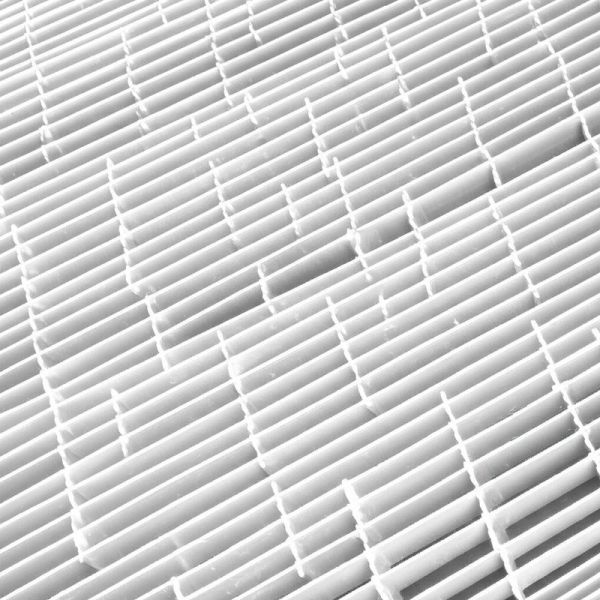

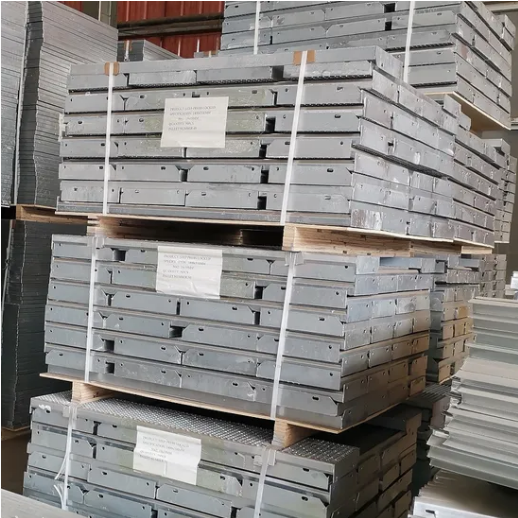

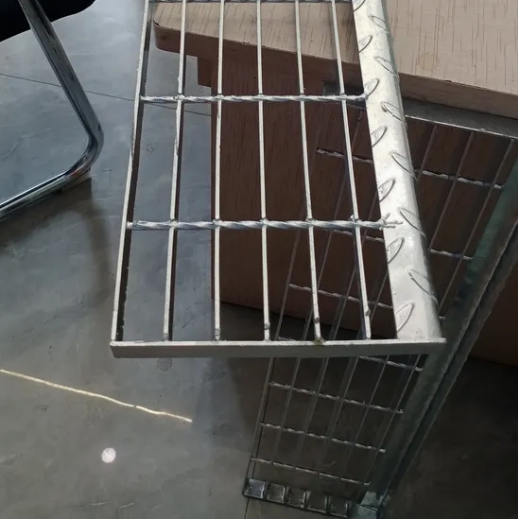

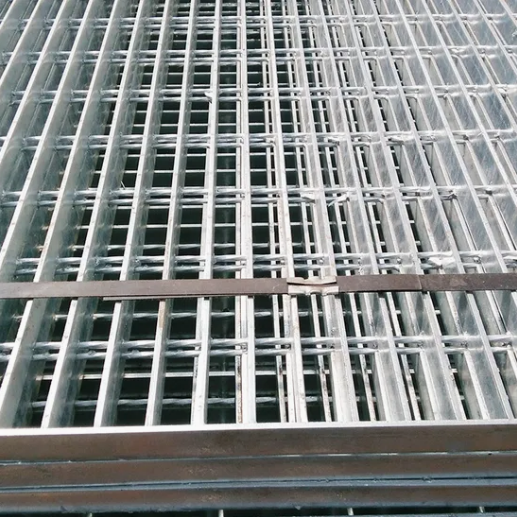

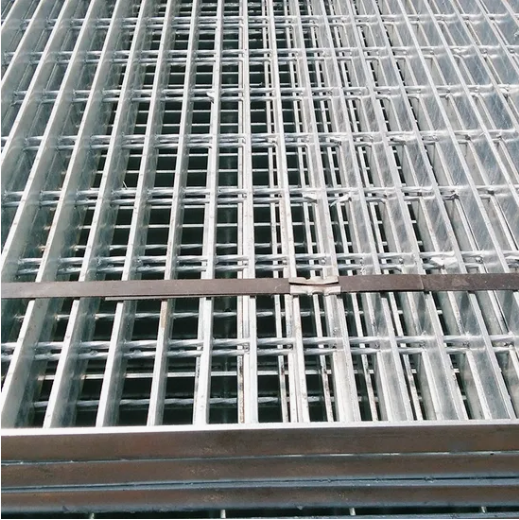

Product Images
Hot-Dip Galvanized Steel Grating with Square Grid and Q235 Material for Stair Treads Hot-Dip Galvanized Steel Grating with Square Grid and Q235 Material for Stair Treads Hot-Dip Galvanized Steel Grating with Square Grid and Q235 Material for Stair Treads
