Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

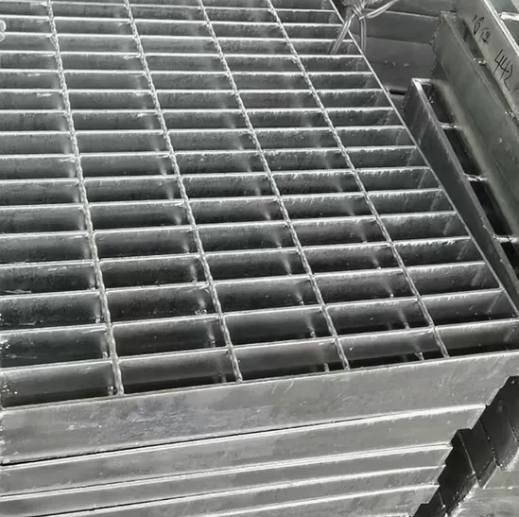

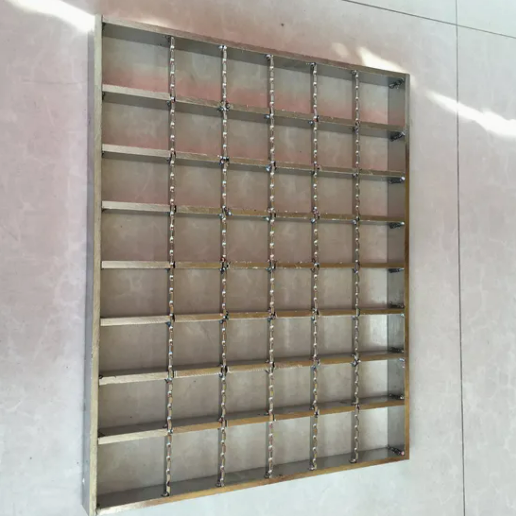

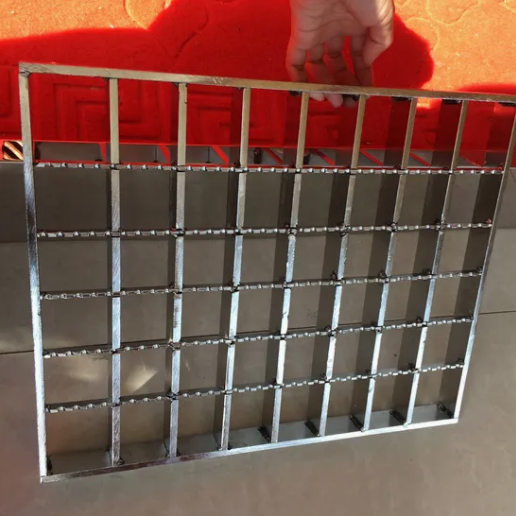

Polish Serrated Surface Standard Stainless Steel Bar Grating
Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable, and corrosive resistant for all load-bearing applications. It is primarily used for pedestrian and light vehicle traffic in hotel and commercial settings.
Product Specifications
Available Materials
  • Q235 / Stainless Steel / Aluminium / Carbon Steel / Low-carbon Steel
Material Standards
  • ASTM A36, A1011, A569, Q235, S275JR
  • Stainless Steel 304/316
  • Mild Steel & Low Carbon Steel
Bar Types
  • Bearing Bar: Flat Bar / I Bar / Serrated Bar
  • Crossbar: Twisted Bar / Round Bar / Flat Bar
Surface Treatments
  • Untreated (Black)
  • Hot-dipped Galvanized
  • Powder-coated
  • Electroplated
  • Painting
  • Custom treatments available per customer requirements
Grating Styles
  • Plain / Smooth
  • Serrated / Teeth
  • I Bar
  • Serrated I Bar
Galvanizing Standards
  • China: GB/T13912
  • USA: ASTM (A123)
  • UK: BS729
International Standards
  • China: YB/T 4001.1-2007
  • USA: ANSI/NAAMM (MBG531-88)
  • UK: BS4592-1987
  • Australia: AS 1657-1988
  • Japan: JJS
Customization Available: Special materials, high zinc coating, and new styles can be customized according to your requirements.
Technical Specifications
Bearing Bar Size: 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5
Bearing Bar Pitch Crossbar Pitch G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
30 50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
40 50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
60 50 / G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing Bar Size: 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5
Bearing Bar Pitch Crossbar Pitch G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
30 50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
40 50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

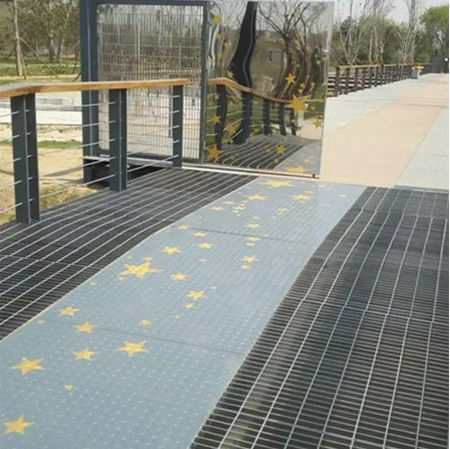

Applications
Our stainless steel bar grating is widely used in various industrial and commercial applications including:
  • Flooring, Catwalks, and Mezzanines/Decking
  • Stair Treads and Ramps
  • Fencing and Dock Applications
  • Trench Covers and Drainage Pit Covers
  • Maintenance Platforms and Pedestrian Areas
  • Factory and Workshop Flooring
  • Motor Rooms and Trolley Channels
  • Heavy Loading Areas and Boiler Equipment
  • Heavy Equipment Areas
We are a professional factory that designs and manufactures standard steel grating and provides custom solutions according to client requirements.
