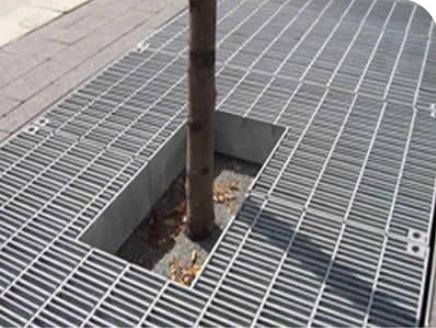

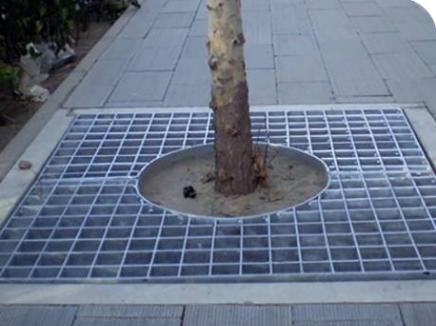

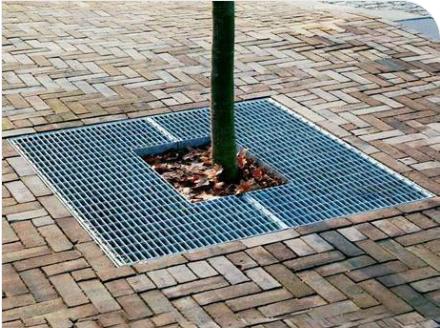

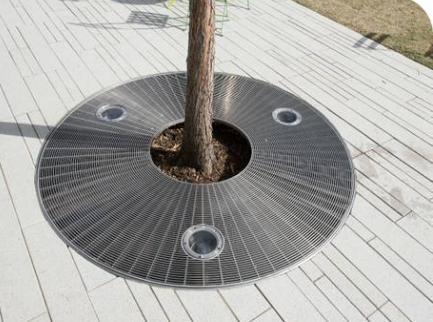

Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Premium Tree Pool Cover with Durable Steel Grating Design
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Special shaped steel grating is based on the actual needs of customers to produce a variety of irregular shape of steel grating. Special shaped steel grating has anti-slip surface, high load bearing capacity, corrosion resistance. So it widely used as well covers, industry operating platform of factory and floors of fountain.

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable and corrosive resistant for all load bearing applications and is primarily used for pedestrian and light vehicle traffic.Two production methods:

Premium Tree Pool Cover with Durable Steel Grating Design

Product Name
Material Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc, Alumium 3003, 5052
Surface treatment Hot dipped galvanized
polished or untreated
Bearing bar (width x thickness) 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,75x10mm
Bearing bar pitch 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm.
US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4",
11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch 38,50,76,100,101.6mm or customized
Pitch of
Bearing bar		 Cross-bar
Pitch		 Specification of bearing bar(widthxthickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
30 50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
40 50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Pitch of
Bearing bar		 Cross-bar Pitch Specification of bearing bar(widthxthickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
30 50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
40 50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50
Application Working Platform, Handrail Infill, Walkway, Bridge decking, Stair Treads, Transformer Reservoir,Trench Cover, Ceiling, Grating Fence
Sunshade Panels

Premium Tree Pool Cover with Durable Steel Grating Design
