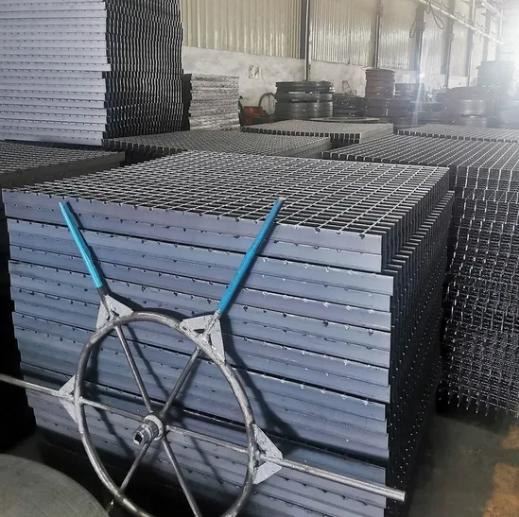

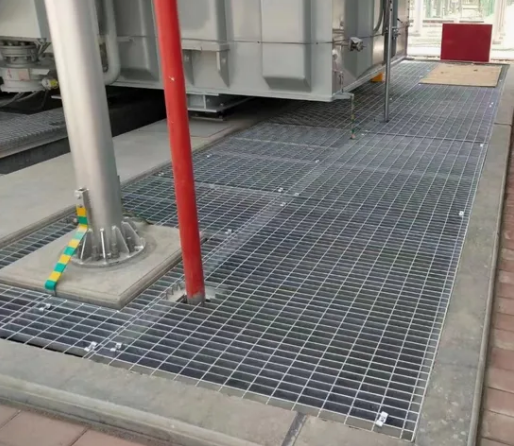

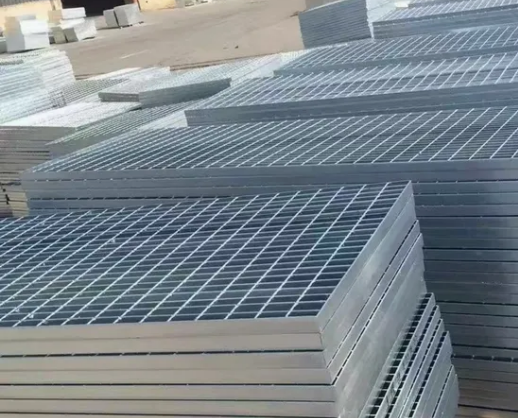

High Quality Steel Grating Cover

1 cover material: stainless steel, galvanized
2 bearing can be from A15,B125,C250,D400
3 installing: it is easy to install. And after installing, the ground only some small square holes.

•It can be used as the ideal solution of anchorage point load bearing for cast in place and precast concrete members

•Railway bridges suspension platform installation

•Railway box beam inner and outer drainage pipe installation

•Railway integrated grounding connection

•Subway tunnel segment channel and equipment fixing and installation

•High-speed railway tunnel servomotor equipment precast installation

•Railway transportation: communication, signal, electric power, overhead contact system, traction substation...the power supply cable sliding channels (embedded groove)

•Curtain wall keel fixing, instead of embedded parts


•All steel-structure project of embedded parts

• Description:

• 1 cover material: stainless steel, galvanized

  2 bearing can be from A15,B125,C250,D400

  3 installing: it is easy to install. And after installing, the ground only some small square holes.

  All the grating cover can be with the following polymer drain trench

  Code	Internal Dimension L*W*D(mm)	Outside Dimension L*W*H(mm)
  100-Z01-C	1000×100×57	1000×130×75
  100-Z02-C	1000×100×110	1000×130×130
  100-Z03-C	1000×100×170	1000×130×190
  100-Z04-C	1000×100×230	1000×130×255
  100-Z02-D	1000×100×110	1000×130×150
  100-Z03-D	1000×100×170	1000×130×210
  100-Z04-D	1000×100×230	1000×130×270
  150-Z01-C	1000×150×120	1000×190×140
  150-Z02-C	1000×150×180	1000×190×200
  150-Z03-C	1000×150×240	1000×190×260
  150-Z01-D	1000×150×140	1000×198×160
  150-Z02-D	1000×150×200	1000×198×220
  150-Z03-D	1000×150×260	1000×198×280
  150-Z01-E	1000×150×140	1000×198×160
  150-Z02-E	1000×150×200	1000×198×220
  150-Z03-E	1000×150×260	1000×198×280
  200-Z01-D	1000×200×200	1000×240×225
  200-Z02-D	1000×200×260	1000×240×285
  200-Z01-E	1000×200×200	1000×248×225
  200-Z03-E	1000×200×260	1000×248×285
  250-Z02-D	1000×250×300	1000×310×335
  250-Z02-E	1000×250×300	1000×310×335
  300-Z01-D	1000×305×250	1000×365×280
  300-Z01-E	1000×305×250	1000×365×280
  300-Z02-D	1000×305×310	1000×365×345
