Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Galvanized steel Grating, is extremely strong and durable for all load bearingapplications and is primarily used for pedestrian and light vehicle traffic. Ourgalvanized coating process provides for years of corrosion resistance in acidicand high moisture environments.
Galvanized steel Expanded Metal is a sheet product that has been slit andstretched to diamond shaped openings. Galvanized expanded metal offerssavings in weight and allows free passage of light, liquid, sound and air whileproviding corrosion resistance in harsh environments.

According to the different types of flat steel, the steel grillageismainly divided into the following three types,comparison of feature.

Customized Stainless Steel Metal Product Drain Grate Cover Grating Trench Cover Drain Flooring Cover for Industrial Durable Grate Flooring Solution

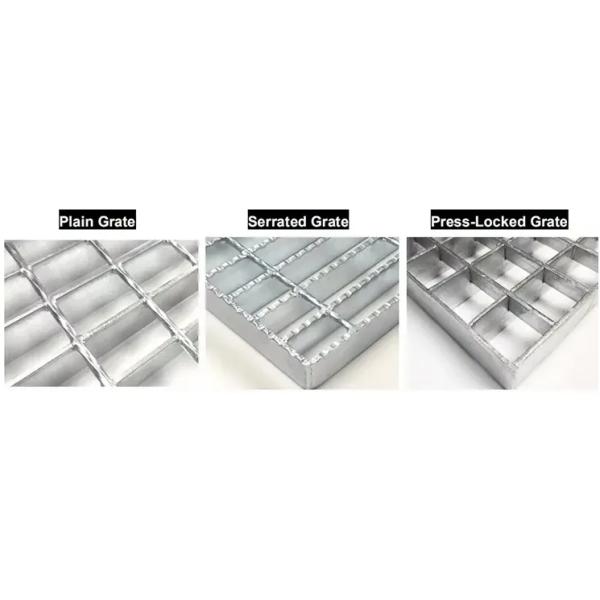

1.Plain Type
One of the most widely used grating.Availablefor flooring, sidewalk, drainage pit cover, stairtread, etc.
2.Serrated Type
Better non-skid property & safety comparingto plain grating.
3.l Bar Type
Lighter, more economical and paraticacomparing to plain grating.

Material 1.Carbon Steel Q235 2.Stainless Steel 304 / 316
Type Press lokced / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9;the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch 12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / the center space : 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992
