Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :

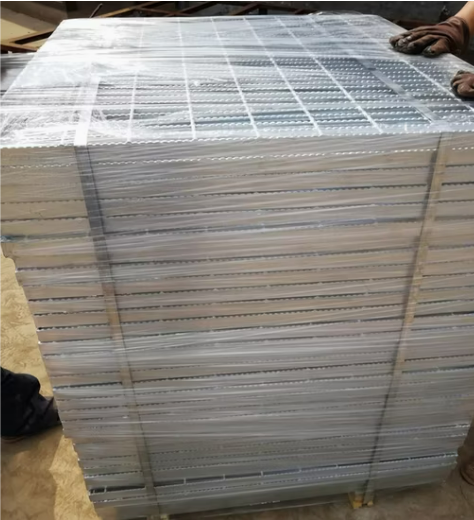

Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Our stainless steel bar gratings are characterized by their high strength, superior durability and high resistance to corrosion for all load bearing applications. It is their long-lasting service that makes them a very economical choice over the long term. Therefore, our stainless steel bar gratings are widely used as walkways, catwalks, platforms, stairways, entranceways and trench gratings in water treatment, chemical processing, oil and gas producing, food processing plants, breweries, dairies, sewage/power plants, and hydrocarbon facilities.

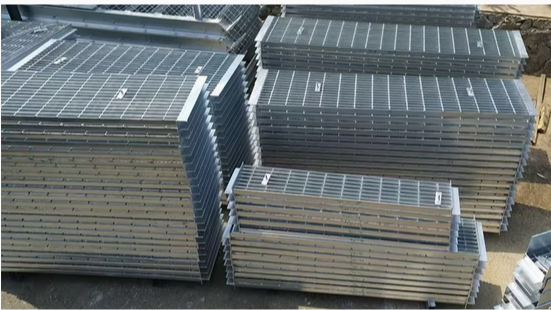

Manufactured from alloy types 304, 304L, 316, or 316L, our stainless steel bar grating is a series of bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel.
Our stainless steel bar gratings are available in press welded, manually welded, press locked and swage locked constructions with standard plain or optional serrated work surfaces.
The size of bearing bars (load bars) usually ranges from 20mm deep x 3mm thick to 65mm deep x 5mm thick. The bearing bar spacing normally ranges from 20mm to 30mm on center.
The size of cold twisted square steel bars (cross bars or cross members) is usually 5mm x 5mm, 6mm x 6mm or 8mm x 8mm. The cross bars are normally at 2'' (50mm) or 4'' (100mm) on center. Please note that cold twisted square steel bars provide a non-slip walking surface.
Our stainless steel bar grating is available in one of three finishes: mill finish, commercial clean and electro-polished.


Product Name steel grating, walkway steel grating, building materials steel bar grating, galvanized steel grid
Material Standard Stainless steel, Low carbon steel, etc.
Bearing Bar (width*thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10…..100 x10mm etc;
I shape bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment untreated(black), hot-dipped galvanized, powder coated, painting or as per customers' requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing packed on the pallets. Other special package: according to customers' requirements.
Remarks: Other sizes also can be customized according to customers' requirement.
