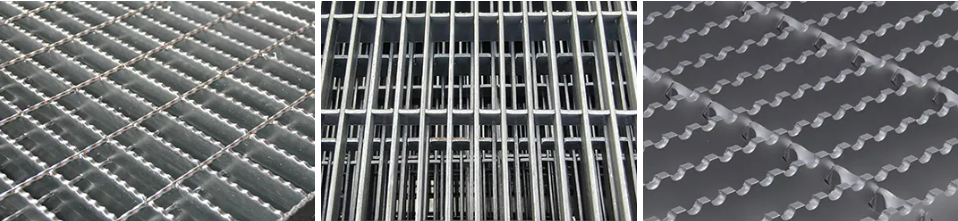

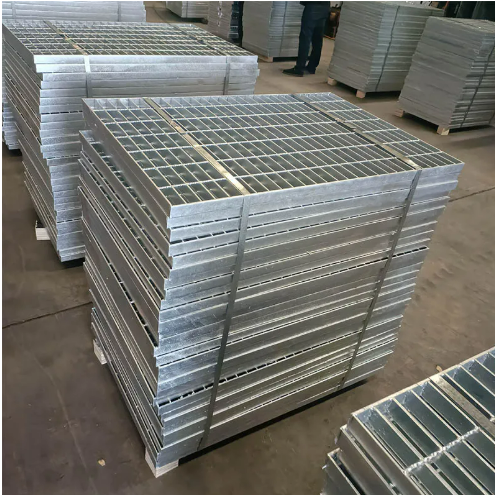

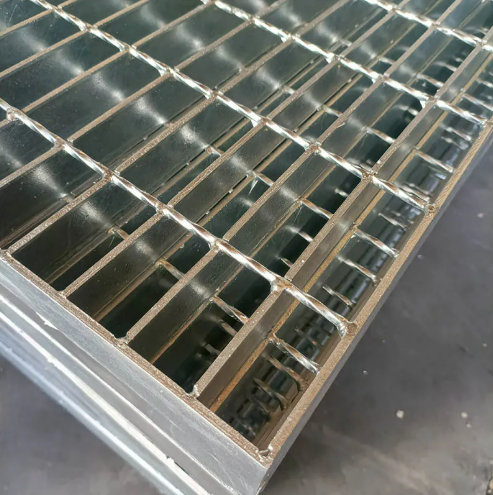

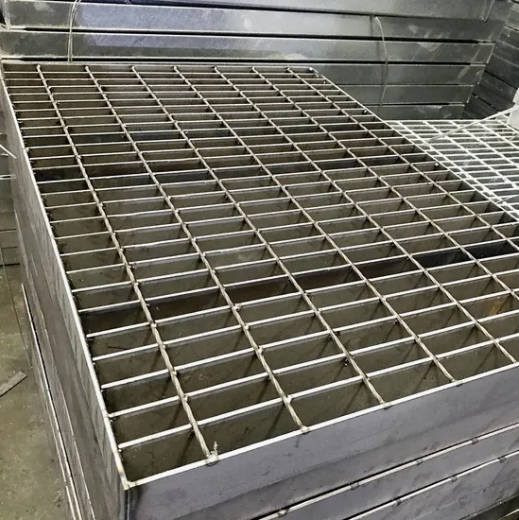

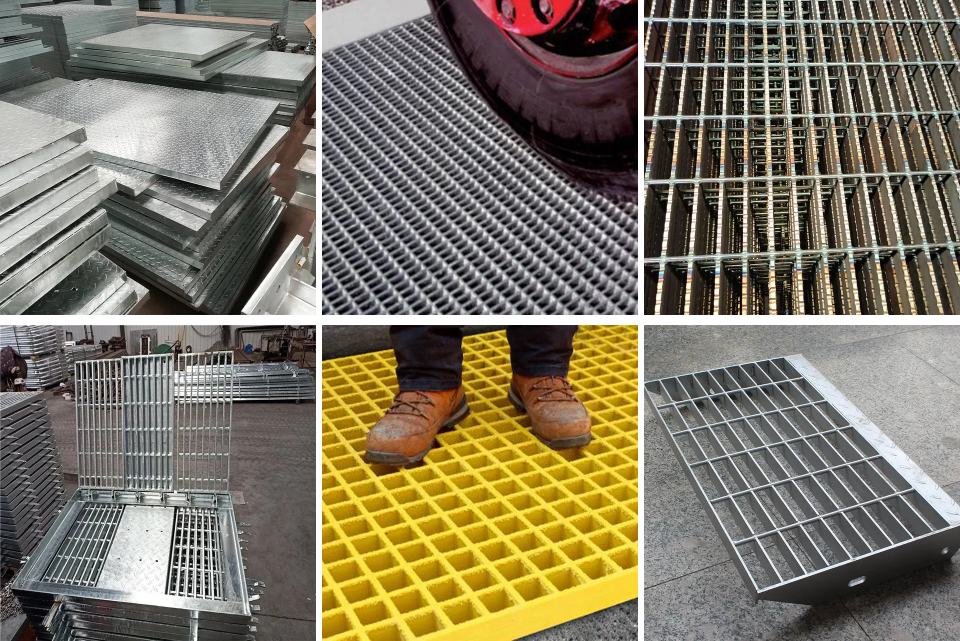

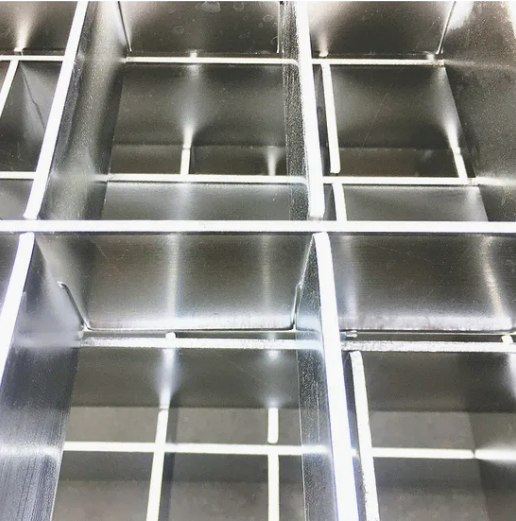

Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.

Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.


Surface Finishing of Steel Metal Grating
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.


Materials of Steel Metal Grating
1) Low Carbon Steel Smooth Flat Bars,Low Carbon Steel Serrated Bars,Low Carbon I-Shaped Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 316 Grade Flat Bars.


Table: Popular Specification of Steel Metal Grating
Item Specifications of
Bearing Bar (mm)		 Diameter of
Cross Bar (mm)		 Pitch of
Bearing Bar (mm)		 Pitch of
Cross Bar (mm)
SG253 25x3 6 20,30,40,50 50,100
SG254 25x4 6,8 20,30,40,50 50,100
SG255 25x5 6,8 20,30,40,50 50,100
SG304 30x4 8 20,30,40,50 50,100
SG305 30x5 8 20,30,40,50 50,100
SG355 35x5 8 20,30,40,50 50,100
SG404 40x4 8 20,30,40,50 50,100
SG405 40x5 8 20,30,40,50 50,100
SG455 45x5 8 20,30,40,50 50,100
SG505 50x5 8 20,30,40,50 50,100
SG605 60x5 8 30,40,50,60 50,100
SG705 70x5 8 30,40,50,60 50,100
