Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel grating, also known as bar grating or metal grating, is an open grid assembly ofmetal bars, in which the bearing bars, running in one direction, are spaced by rigidattachment to cross bars running perpendicular to them or by bent connecting barsextending between them, which is designed to hold heavy loads with minimal weight. itis widely used as floors, mezzanines, stair treads, fencing, trench covers andmaintenance platforms in factories, workshops, motor rooms, trolley channels, heavyloading areas, boiler equipment and heavy equipment areas, etc.


Product Name Steel Bar Grating
Material Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc, Alumium 3003, 5052
Surface treatment Hot dipped galvanized
polished or untreated
Bearing bar (width x thickness) 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,75x10mm
Bearing bar pitch 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm.
US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4",
11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch 38,50,76,100,101.6mm or customized
Pitch of
Bearing bar		 Cross-bar
Pitch		 Specification of bearing bar(widthxthickness)


20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
30 50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
40 50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50
G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Pitch of
Bearing bar		 Cross-bar Pitch Specification of bearing bar(widthxthickness)


32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
30 50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
40 50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

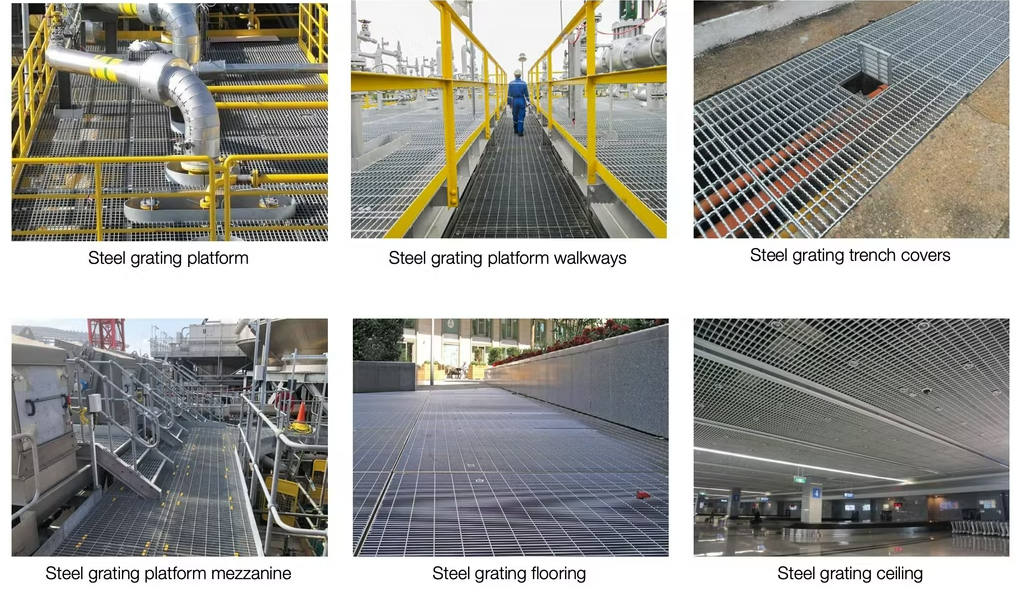

Application Working Platform, Handrail Infill, Walkway, Bridge decking, Stair Treads, Transformer Reservoir,Trench Cover, Ceiling, Grating Fence
Sunshade Panels
