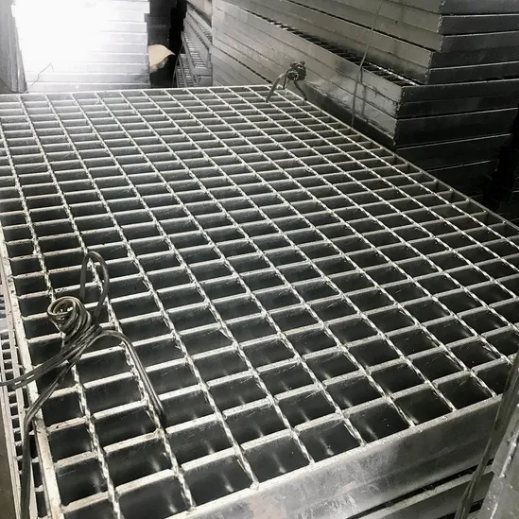

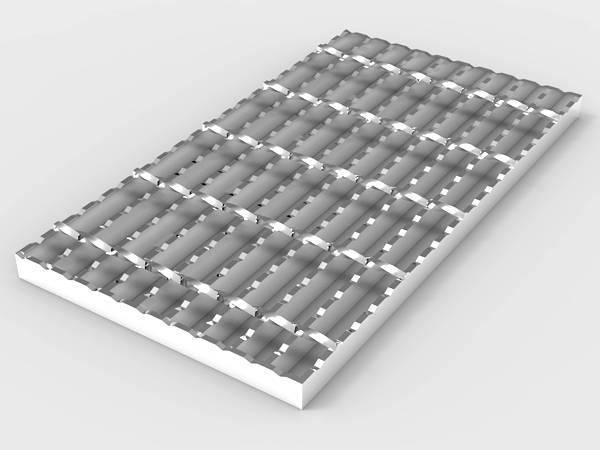

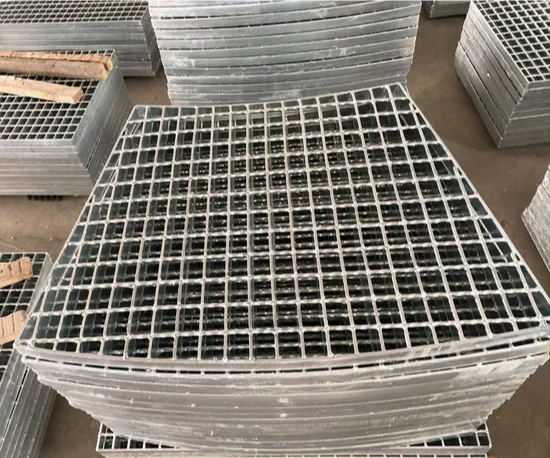

Welded Stainless Steel Bar Grating with 2 and 4 Cross Bar Spacing and 15/16 Bearing Bar Spacing for High Strength and Durability
Welded Stainless Steel Bar Grating with 2 and 4 Cross Bar Spacing and 15/16 Bearing Bar Spacing for High Strength and Durability
Welded Stainless Steel Bar Grating with 2 and 4 Cross Bar Spacing and 15/16 Bearing Bar Spacing for High Strength and Durability
Welded Stainless Steel Bar Grating with 2 and 4 Cross Bar Spacing and 15/16 Bearing Bar Spacing for High Strength and Durability
Welded Stainless Steel Bar Grating with 2 and 4 Cross Bar Spacing and 15/16 Bearing Bar Spacing for High Strength and Durability
Welded Stainless Steel Bar Grating with 2 and 4 Cross Bar Spacing and 15/16 Bearing Bar Spacing for High Strength and Durability
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Our stainless steel bar gratings are characterized by their high strength, superior durability and high resistance to corrosion for all load bearing applications. It is their long-lasting service that makes them a very economical choice over the long term. Therefore, our stainless steel bar gratings are widely used as walkways, catwalks, platforms, stairways, entranceways and trench gratings in water treatment, chemical processing, oil and gas producing, food processing plants, breweries, dairies, sewage/power plants, and hydrocarbon facilities.
Manufactured from alloy types 304, 304L, 316, or 316L, our stainless steel bar grating is a series of bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel.

Our stainless steel bar gratings are available in press welded, manually welded, press locked and swage locked constructions with standard plain or optional serrated work surfaces.


Technical specifications of our stainless steel bar grating are shown in the table below:

Specification Description
Material 304, 304L, 316, 316L stainless steel
Manufacturing Process Welded, swage-locked, or press-locked
Surface Type Standard plain surface, serrated surface
Cross Bar Spacing 2" or 4", center to center
Bearing Bar Spacing 15/16" or 1-3/16", center to center
Bearing Bar Height 20mm to 60mm
Bearing Bar Thickness 2mm to 5mm
Cross Bar Size 4mm to 10mm diameter
Slip Resistance Serrated or plain surface, depending on the application
Installation Method Welding, clips, or bolts and nuts, depending on the application
Compliance Meets industry standards and applicable building codes, including ASTM, ISO, and ANSI/NAAMM

Note:
For more information on safe load data, please feel free to contact us, and our engineers will be more than happy to share them with you.

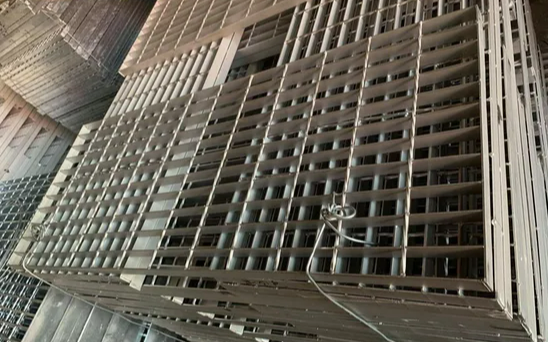

Welded Stainless Steel Bar Grating with 2

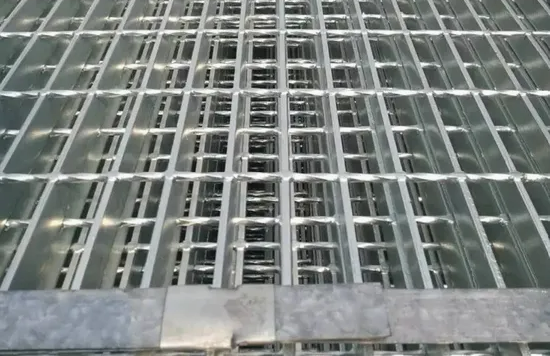

Welded Stainless Steel Bar Grating with 2

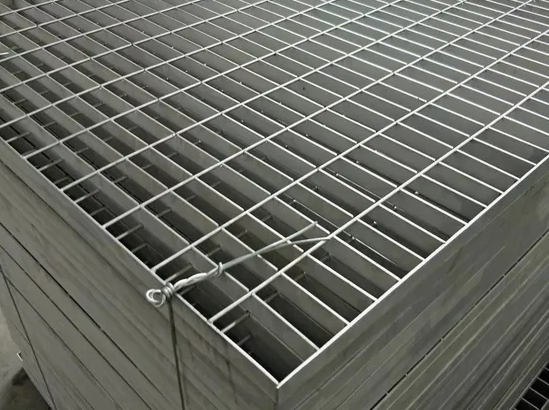

Welded Stainless Steel Bar Grating with 2
