Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties
Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties
Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties
Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties
Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties
Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

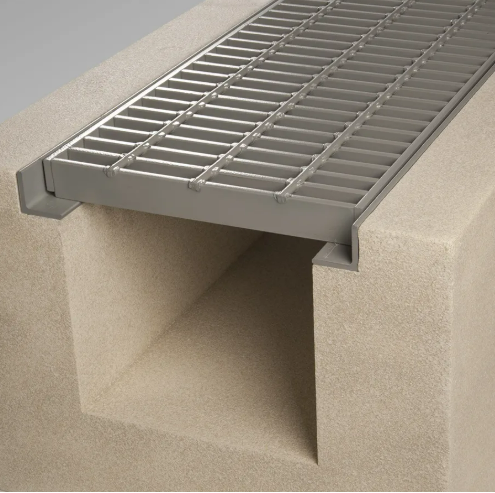

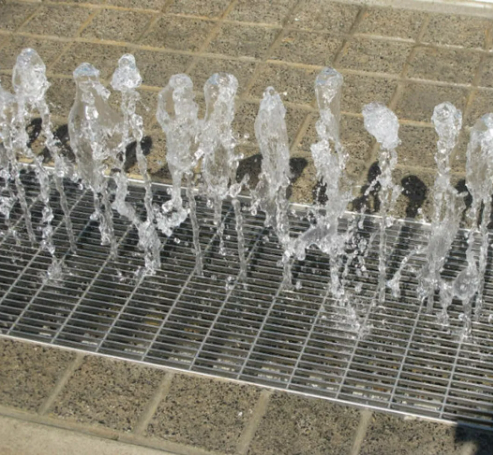

Grating plate is also known as steel grid plate, steel grid plate, steel grille. It is to use flat steel according to a certain spacing and horizontal bar (twisted square steel, square steel, round steel, flat steel, etc.) for cross arrangement, and welded into a square grid with the middle of a steel products, mainly used to do ditch cover plate, steel structure platform plate, steel ladder step plate, etc. The horizontal bar is generally made of twisted square steel (twist steel).
Steel plate is generally made of carbon steel, hot dip galvanizing, can play a role in preventing oxidation. It can also be made of stainless steel. Steel grid plate has ventilation, lighting, heat dissipation, anti-skid, explosion-proof and other properties.


Item
Description
Bearing bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc
Surface Treatment
Black, self colour, hot dip
galvanized, painted, spray coating
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :J
