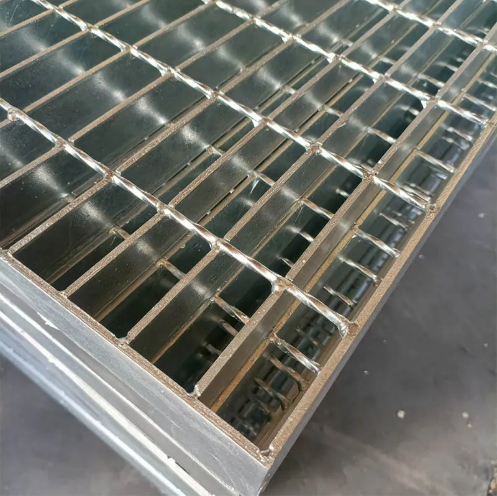

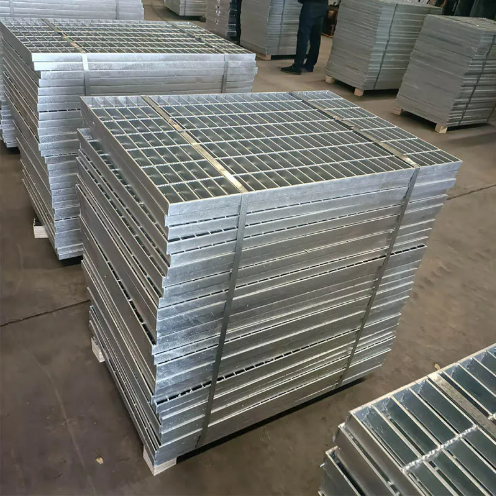

Hot DIP Galvanized Metal Welded Steel Bar Grating
High-strength welded steel bar grating with 30x100mm mesh size, ideal for platforms, catwalks, and industrial applications. Available in carbon steel, aluminum steel, or stainless steel construction.
Manufacturing & Surface Options
Available in four manufacturing methods: welded, press-locked, swage-locked, and riveted gratings. Choose between smooth or serrated surface patterns for optimal traction and safety.
Customization Options
Bearing Bar Depth
Bearing Bar Thickness
Bearing Bar Pitch
Cross Bar Pitch
Span and Width (Mesh Size)
Common Applications
- Industrial flooring and decking
- Platforms and catwalks
- Stair treads and ramps
- Dock surfaces and trench covers
- Maintenance platforms and workshops
- Motor rooms and trolley channels
- Heavy loading areas and equipment zones
- Fencing and security screens
- Drainage pit covers
- Boiler equipment areas
Standard Specifications
| Bearing Bar Pitch |
Cross Bar Pitch |
Bearing Bar Size (Depth×Thickness) |
Product Codes |
| 20×3 / 25×3 / 32×3 / 40×3 / 20×5 / 25×5 |
30mm |
100mm |
G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100 |
| 30mm |
50mm |
G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50 |
| 40mm |
100mm |
G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100 |
| 32×5 / 40×5 / 45×5 / 50×5 / 55×5 / 60×5 |
30mm |
100mm |
G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100 |
| 40mm |
100mm |
G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100 |
