Heavy-Duty Steel Grating Panels for Walkways and Platforms
Product Overview

Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load-bearing applications. Primarily used for pedestrian and light vehicle traffic, this product is available in various bearing bar spacing and thicknesses to meet specific application and load requirements. Choose between smooth top or serrated surfaces for enhanced slip resistance.

Heavy-Duty Slip-Resistant Galvanized Steel Grating for Walkways and Platforms
Available Materials
  • Carbon Steel
  • Galvanized Steel
  • Stainless Steel
  • Aluminum
Surface Types
  • Flat Type
  • Serrated Type
  • I Shape
Heavy-Duty Slip-Resistant Galvanized Steel Grating for Walkways and Platforms Heavy-Duty Slip-Resistant Galvanized Steel Grating for Walkways and Platforms
Applications

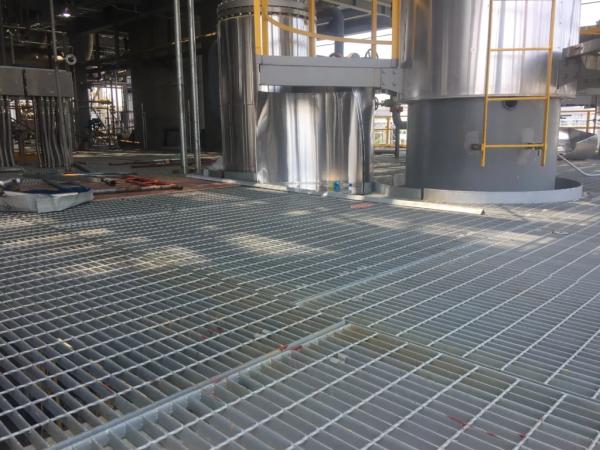

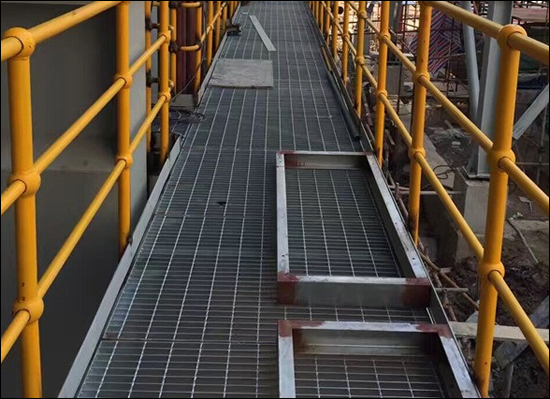

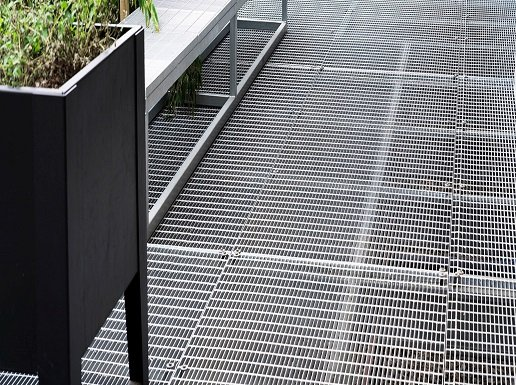

  • Platform walkways
  • Flooring panels
  • Corridors and bridges
  • Well covers, drain covers, ditch covers
  • Stairs treads
  • Fencing for petroleum, chemical, and power plants
  • Waste treatment plants
  • Civil engineering projects
  • Environmental projects
Steel Bar Grating Specifications

Easy-to-understand specification chart for steel bar gratings:

Vertical Bar Spacing Horizontal Bar Spacing Specification of Supporting Flat Steel (Width × Thickness)
20 × 3 25 × 3 32 × 3 40 × 3 20 × 5 25 × 5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Vertical Bar Spacing Horizontal Bar Spacing Specification of Supporting Flat Steel (Width × Thickness)
32 × 5 40 × 5 45 × 5 50 × 5 55 × 5 60 × 5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50
