Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Specifications
Brand Name :
GNEE
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

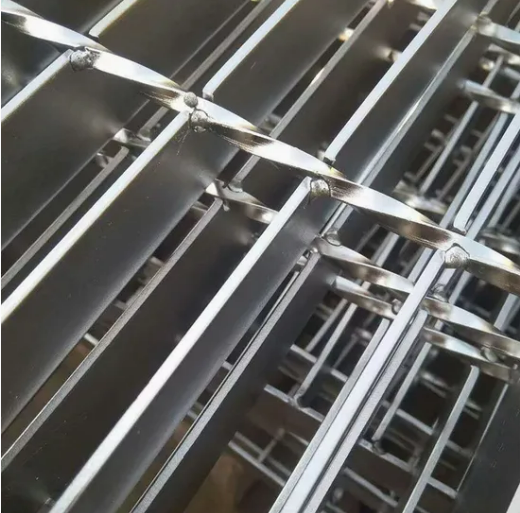

Welded bar grating

Welded bar grating is also called metal open bar grating. Welded bar grating, also known as metal open bar grating, comes in two types: smooth and serrated. Smooth, or plain steel bar grating, is more popular, but serrated grating offers better skid resistance.
Press Lock Grating

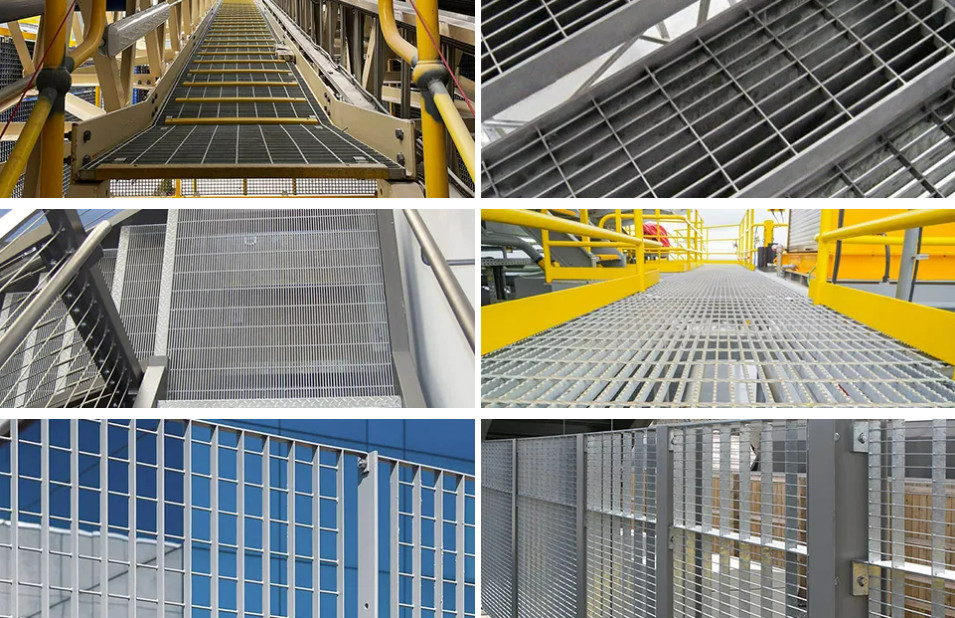

Made from low carbon steel, stainless steel, or aluminum, is created by bonding slotted bars under hydraulic pressure. It's strong, durable, and widely used in industrial and commercial applications like stair treads, platforms, walkways, and covers. Serrated surfaces enhance anti-slip properties.
Swage Locked Grating
Swage locked grating, mainly made of aluminum or stainless steel bars, is formed by inserting cross bars into pre-punched bearing bars and locking them under hydraulic pressure. It comes in three bearing bar types: rectangular, T, and I bars, with I bars being lighter and more affordable.
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms
Heavy Duty Serrated Welded Bar Grating for Industrial Walkways and Platforms

Pickling
High-grade steel grating is typically pickled afterproduction to remove scale and discoloration caused bywelding, which can lead to corrosion. During the picklingprocess, the grating is submerged in a bath that cleansesthe surface, leaving it metallically pure and corrosion-resistant.
Hot dip galvanizing
Hot-dipped galvanized steel grating involves submergingthe steel grating in molten zinc, a process calledgalvanization. This forms a strong metallurgical bondbetween the zinc and the steel, resulting in a durable.corrosion-resistant protective layer.
Powder coating
Powder coating is a cost-effective, durable way to colorgrating. The process includes degreasing, pickling, zinc.phosphating, and electrostatic powder application, thenbaking at 180'C. For enhanced corrosion protection, thiscoating combines hot-dip galvanizing with powder coatingAvailable in all RAL colors, with different gloss levels andtextures.
Material
Carbon Steel, Stainless Steel, Aluminum
Surface treatment
Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type
Plain(Flat) bar, Serrated bar, I-bar, etc.
Common specification
Bearing bar pitch (mm)
Cross bar pitch (mm)
Bearing bar size
(WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30
100
WSG_203/253/323/403/205/325/405/455/505/555_30_100

50
WSG_203/253/323/403/205/325/405/455/505/555_30_50
40
100
WSG_203/253/323/403/205/325/405/455/505/555_40_100

50
WSG_203/253/323/403/205/325/405/455/505/555_40_50
60
50
WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
