High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
Henan
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
300000 Square Meter/Square Meters per Month
Packaging Details :
Standard Sea Worthy Package
Description
High-Strength Serrated Stainless Steel Grating for Stairs & Drainage
What Is Steel Grating?

Steel grating is manufactured from high-quality carbon steel or stainless steel. Flat steel bars are arranged crosswise at specific intervals and welded into a grid pattern with square openings. The exterior of steel grating is typically hot-dip galvanized to provide corrosion resistance.

Steel grating offers excellent ventilation, light transmission, anti-slip properties, strong load-bearing capacity, heat dissipation, easy cleaning, and simple installation.

Specifications
Material Carbon Steel, Stainless Steel, Aluminum
Size Customized Sizes Available
Color Silver
Surface Treatment Hot-Dip Galvanized, Painted, Powder Coating
Application Platforms, Stairs, Drainage Ditches, Protective Fences
Type Plain Grating, Serrated Grating, I-Type Grating
Bearing Bar Type Plain, Serrated, I-Type Bar
Bearing Bar Dimensions 20x3, 20x5, 25x3, 25x5, 30x3, 30x5, 32x5, 40x5, 50x5, etc.
Bearing Bar Pitch 20, 30, 40, 50, 60, 80, 100mm
Cross Bar 6, 8, 10mm
Cross Bar Pitch 50, 100mm
Product Variants

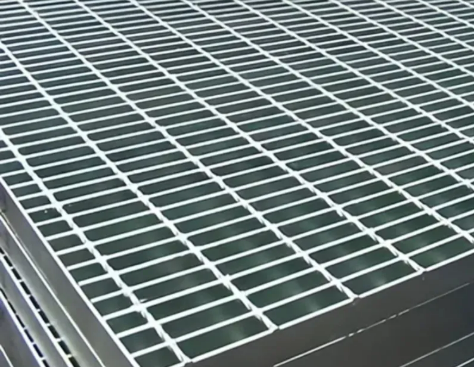

30mm Spacing Steel Grating (Standard Type)

This variant features a 30mm center distance between flat steel bars, meeting US standards with superior surface impact resistance. Widely used in drain covers, stair treads, power plants, sewage treatment plants, chemical plants, airports, and docks.

High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications

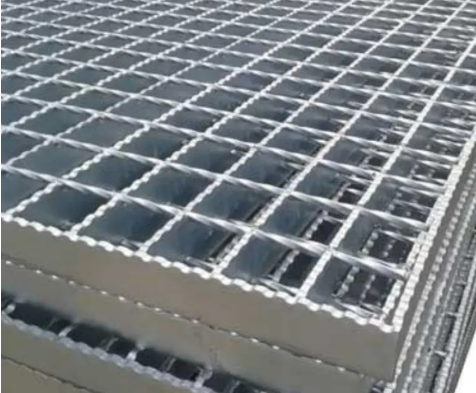

40mm Spacing Steel Grating (Economical & Lightweight)

This type meets British standard specifications for walkways and stairs, ideal for applications with smaller spans. Suitable for warehouse shelves, trestles, protective fences, and similar structures.

High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications

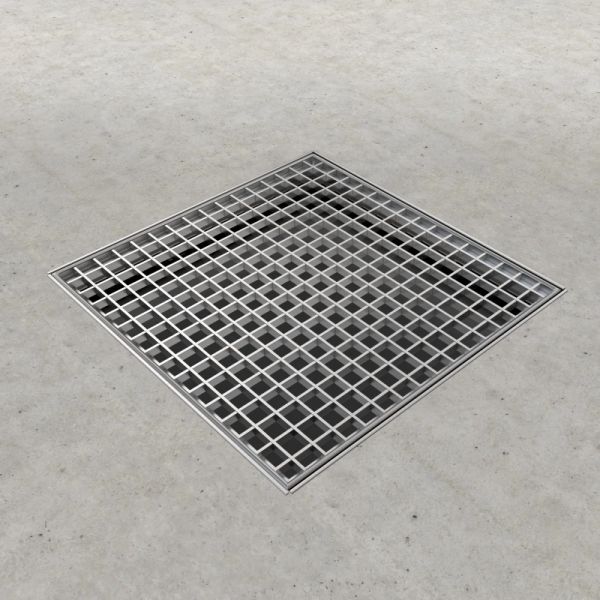

60mm Spacing Steel Grating (Mining Industry)

Specifically developed for mining applications, this design allows mineral splashes to pass through the openings, maintaining clean and safe surfaces. Commonly used in conveyor line walkways and processing plants.

High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications

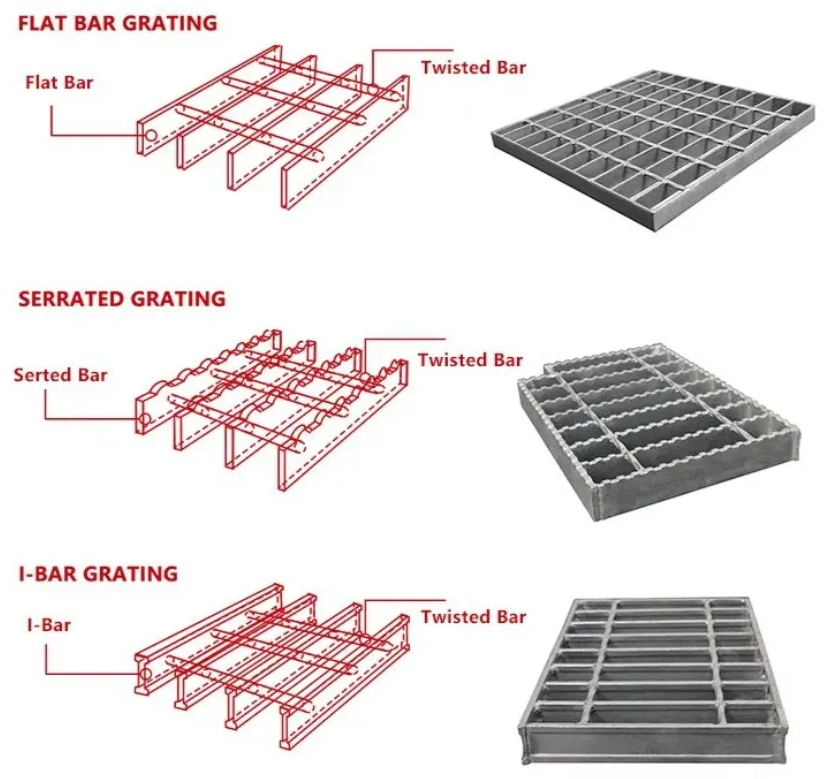

Classification Methods
  • By Welding Method: Pressure welding, inlaying, locking, and through welding types
  • By Bearing Bar Shape: Plane type, tooth type (serrated), and I-type profiles
  • By Material: Stainless steel grating and carbon steel grating
High-Strength Serrated Stainless Steel Grating for Stairs and Drainage Applications
Frequently Asked Questions
How long does galvanized steel grating last?
Typically 15-30 years depending on environment and maintenance.
Is steel grating fire-resistant?
Yes, steel grating is non-combustible and suitable for high-temperature applications.
What is the standard size of steel grating panels?
Standard panels are 1m x 6m or 1.2m x 6m, but custom sizes are common.
How thick is steel grating?
Thickness varies from 25mm to 50mm or more, depending on load requirements.
What are bearing bars and cross bars?
Bearing bars carry the load; cross bars hold the bearing bars in place.
Can steel grating support heavy machinery?
Yes, with proper design, steel grating can support industrial equipment.
How is steel grating installed?
It can be mounted on support frames, welded, bolted, or anchored depending on the structure.
