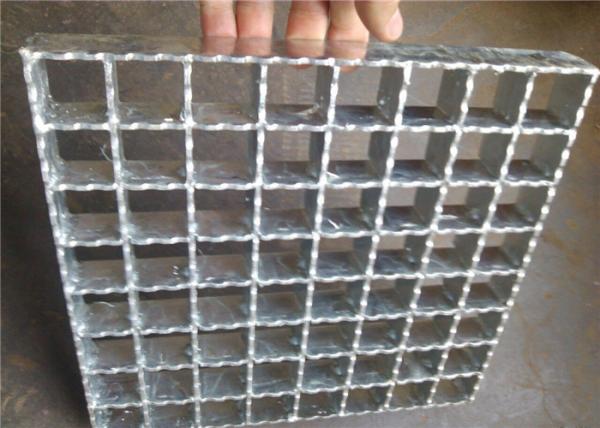

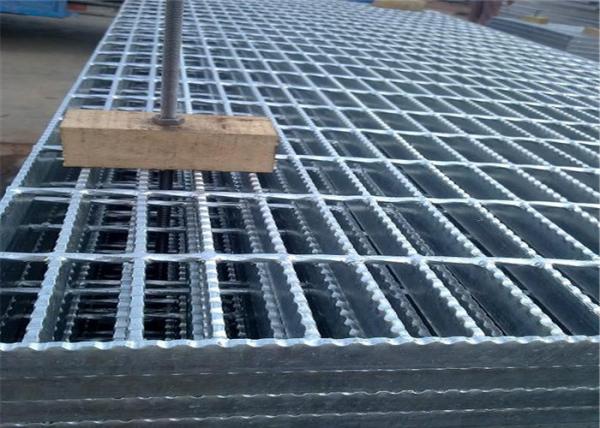

Hot Rolled Serrated Steel Grating Galvanized Surface Light Weight
Hot Rolled Serrated Steel Grating Galvanized Surface Light Weight
Hot Rolled Serrated Steel Grating Galvanized Surface Light Weight
Hot Rolled Serrated Steel Grating Galvanized Surface Light Weight
Specifications
Model Number :
serrated platform steel grid plate
Certification :
ISO9001
MOQ :
100 square meters
Supply Ability :
1000t per month
Delivery Time :
3 - 7 work days
Packaging Details :
Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements
Brand Name :
Gnee
Product name :
Galvanized 25mm , 30mm , 32mm Steel Grid Plate Serrated Walkway Platform
Weight :
Easy to carry
Technique :
Hot rolled
Bearing bar thickness :
2,3,5,10mm,etc
Cross bar thickness :
6,7,8,10mm,etc
Bearing bar pitch :
30mm,40mm ,60mm etc
Cros bar pitch :
38mm,50mm,100mm etc
Surface :
galvanized,untreated,stainless steel
Description

Galvanized 25mm , 30mm , 32mm Steel Grid Plate Serrated Walkway Platform

Detail description

Bearing bar - A flat bar withstanding the main load is in consistent with the span direction .

bearing bar pitch - the distance center to center of the two bearing bars.

Cross bar - the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the

bearing bars .

Cross bar pitch - the distance center to center of the two adjacent cross bars.

Length (span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in

the same direction as the baering bars .

Width - the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same

direction as the cross bars.

Bearing bar pitch

 Cross-bar Pitch Specification of bearing bar (width×thickness)
25×3 32×3 40×3 25×5 32×5
30 100 G253/30/100 G323/30/100 G403/30/100 G255/30/100 G325/30/100
50 G253/30/50 G323/30/50 G403/30/50 G255/30/50 G325/30/50
40 100 G253/40/100 G323/40/100 G403/40/100 G255/40/100 G325/40/100
50 G253/40/50 G323/40/50 G403/40/50 G255/40/50 G325/40/50
60 50 G253/60/50 G253/60/50 G403/60/50 G255/60/50 G325/60/50
Bearing bar pitch Cross-bar Pitch Specification of bearing bar (width×thickness)
40×5 45×5 50×5 55×5 60×5
30 100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/40/100

Application

1. steel structure platforms;


2. stair treads,sidewalks;


3. drainages; 4.well covers.

Questions

1. Is your samples free?

Yes, we can provide free samples to my clients.

2. How many days will the samples be finished?

Generally the samples will be sent immediately by the air express in 2~3 days if the goods are in stock.

3. And how about the mass production?

Normally within 20-25 days according to your order.

4. Are you a manufacture?

Yes, we have been in providing the products in this field for 15 years.

5. Is customized availabls?

Yes, we can OEM according to your detailed drawings

Hot Rolled Serrated Steel Grating Galvanized Surface Light Weight

Our advantages

1. Steel grating is environment friendly

2. Lower cost and maintenance

3. Long using time up to 10 years

4. Galvanized steel grating resistances up to 9 grade

5. Fast construction, time saving and labor saving

6. Good appearance

Product tags

hot dipped galvanized steel grating

,

serrated galvanized steel grating

,

steel mesh grating
