Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
Specifications
Model Number :
SSG
Certification :
ISO9001:2008
MOQ :
2PCS
Price :
USD15
Payment Terms :
T/T, L/C
Supply Ability :
2000TONS
Delivery Time :
10DAYS
Packaging Details :
With steel belt and square tube
Brand Name :
Gnee
Material :
Steel
Surface Treatment :
Hot dipped galvanized
Bearing bar size :
25x5,32x5,32x3,35x5,40x3,40x5,55x5 and etc
Bearing bar spacing :
30mm,35mm,40mm or customized
Cross bar spacing :
50mm,100mm or customized
Bearing bar shape :
serrated style
Cross bar :
Twisted bar,Round bar
Standard :
ANSI/NAAMM（MBG531-88）
Application :
Flooring,Stair tread,Ditch cover
Sample :
Free
Description

Gnee is a professional manufacturer in the field of steel grating,stair treads,trench cover,FRP grating,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Gnee is your right partner for purchasing & developing quality goods in China.

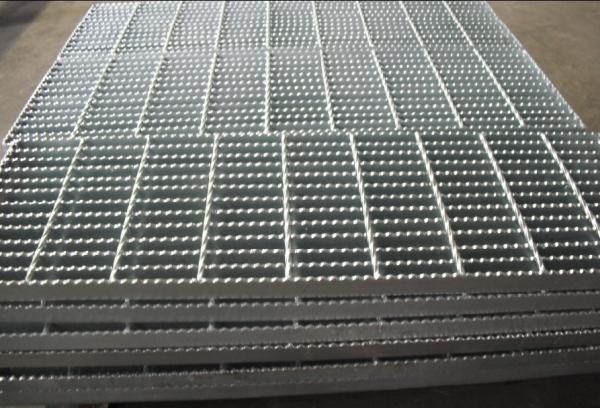

Serrated steel grating

Its bearing bar is serrated surface

For applications where extremely slippery conditions prevail,Serrated steel grating weld offers a superior grip surface to the load bearing bars.

Steel Grating standard

Steel standard

Galvanizing standard

China standard

YB/T 4001.1-2007

GB700-88

GB/T 13912-2002

USA standard

ANSI/NAAMM(MBG531)

ASTM(A36)

ASTM(A123)

U.K.standard

BS4592

BS4360

BS729

Australia standard

AS1657

AS3679

AS1650

Product Name

Steel grating

Material

Low carbon steel / Stainless steel

Grade

CN: Q235, Q345, US: A36, UK: 43A

Standard

CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS

Certification

CE, GOST, ISO9001, ISO14001, HSE

Bearing bar size

20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc

Bearing bar pitch

20,25,30,32.5,34.3,40,50,60,62,65mm

Bearing bar type

Plain, Serrated (tooth-like), I bar (I section), Serrated-I

Cross bar size

5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)

Cross bar pitch

40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.

Panel size

3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request

Surface treatment

Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.

Galvanization Standard

CN: GB/T13912, US: ASTM (A123), UK: BS729

Color

Silver/Black

Application

petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Specification

No Item Description
1

Bearing

bar

 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2 Bear bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3 Cross bar pitch 38,50,76,100,101.6mm
4 Material Q235,A36,SS304
5 Surface treatment Black, hot dipped galvanising, paint
6 Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985

Application

Serrated galvanized anti slip grating used in walkway flooring, catwalk, mezzanines/decking, stair tread, fencing, ramps, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department, stores, hospitals, amusement parks,hoggery, welded bridge grating etc

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar GratingTwisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Packaging and shipping

1. steel grating panels packed in bundle then fixed by steel or plastic belt onto metal or wooden pallets as the general export package. The pallets size

2. Customers' requirement is accepted.

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating

Twisted / Round Bar Galvanized Serrated Grating , 30 X 5 Bearing Bar Grating
