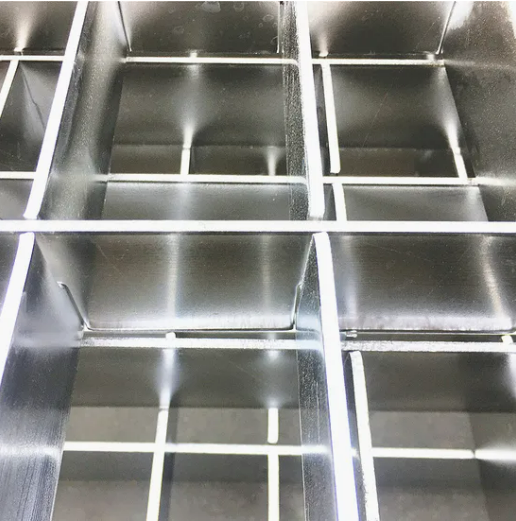

Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Specifications
Model Number :
BS-04
Certification :
ISO9001,SGS
MOQ :
10 square meter
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Packed in seaworthy,commonly bundled by bearing bar.
Brand Name :
Gnee
Bear Bar :
25 x 5 x 3,75 x 7 x 4, etc
Material :
Galvanized Sheet, A36
Cross bar pitch :
100mm
Bearing bar pitch :
15,20,25,30,33,35,38,40,50,60,80,90mm
Market :
USA, AUS, UK, Kuwait, and so on
Certificate :
ISO9001:2008, SGS
Description
Anti Slip Galvanized Steel Grating ISO SGS Certificate 100mm Cross Bar Pitch
Heavy Duty Anti Slip Welded Steel Gratings With ISO SGS Certificate

Steel Grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration. The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.

Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Grating Standardizations
Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A) BS729
Australia AS1657-1992 AS3679 AS1650
Steel Grating Specifications
  • Bearing Bar (Load Bar) Specifications (mm): The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
  • Bearing Bar Pitch (center to center): 12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
  • Material: Mild Steel (Low Carbon Steel) or Stainless Steel
  • Surface Treatment: Untreated, Painting or Hot DIP Galvanizing
  • Steel grating standards: A) China: YB/T4001-1998 B) USA: ANSI/NAAMM (MBG531-88) C) UK: BS4592-1987 D) Australia: AS1657-1985 E) Japan: JJS
Common Specifications
Product Name Steel grating
Material Low carbon steel / Stainless steel
Grade CN: Q235, Q345, USA: A36, UK: 43A
Standard CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement.
Galvanization Standard CN: GB/T13912, USA: ASTM (A123), UK: BS729
Color Silver/Black
Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing
Application Scenarios
Anti Slip Galvanized Steel Grating with 100mm Cross Bar Pitch for Industrial Flooring
Frequently Asked Questions
Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment, 30% T/T in advance, balance before shippment.
