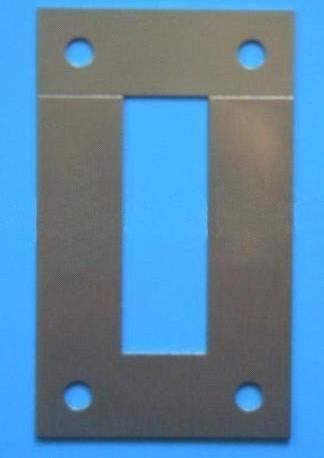

High Magnetic Induction UI -Type Silicon Steel Sheet, Transformer Lamination Core
High Magnetic Induction UI -Type Silicon Steel Sheet, Transformer Lamination Core
High Magnetic Induction UI -Type Silicon Steel Sheet, Transformer Lamination Core
High Magnetic Induction UI -Type Silicon Steel Sheet, Transformer Lamination Core
Specifications
Place of Origin :
China
Brand Name :
Yh
Price :
Depends on order quantity
Packaging Details :
According to customer's requirements
Delivery Time :
Delivery Time within 20days
Payment Terms :
LC and TT
Description

High Magnetic Induction UI -Type Silicon Steel Sheet, Transformer Lamination Core

UI Silicon Steel Sheet:
1. High magnetic induction
2. Low iron loss
3. International standard
4. Customized design is acceptable

UI Silicon steel Sheet features:

1)Specification: From UI-20 to UI-100

2)Property: International standard

3)Thickness: 0.27mm;0.30mm;0.35mm;0.5mm

4)Raw materials ( cold rolled non-oriented silicon steel coils):

a) Bao steel: B50A1000, B50A1300, B50AH470, B50AH600, B50AH800, B35A270,B35A300

b) Ann steel: 50AW1000,50AW1300

c) Wu steel: 50WW1300, 50WW1000, 50WW800

d) Imported silicon steel such as POSCO steel

5) Applicable to all kinds of iron cores for power transformers

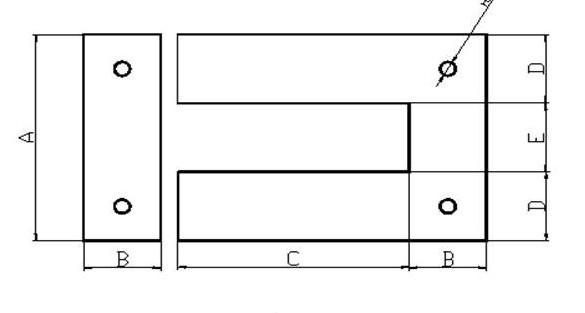

specification

A

B

C

D

E

HOLE(Φ)

UI20

60

20

60

20

20

4.5

UI22

66

22

66

22

22

6

UI25

75

25

75

25

25

4.5

UI27

81

27

81

27

27

4.5

UI28

84

28

84

28

28

4.5

UI30

90

30

90

30

30

8

UI32

96

32

96

32

32

8

UI35

105

35

105

35

35

8

UI37

111

37

111

37

37

8

UI38

114

38

114

38

38

8

UI40

120

40

120

40

40

10

UI44

132

44

132

44

44

8

UI45

135

45

135

45

45

10

UI50

150

50

150

50

50

8

UI60

180

60

180

60

60

14

UI70

210

70

210

70

70

14

UI80

240

80

240

80

80

14

UI90

270

90

270

90

90

14

UI100

200

90

300

100

100

14
