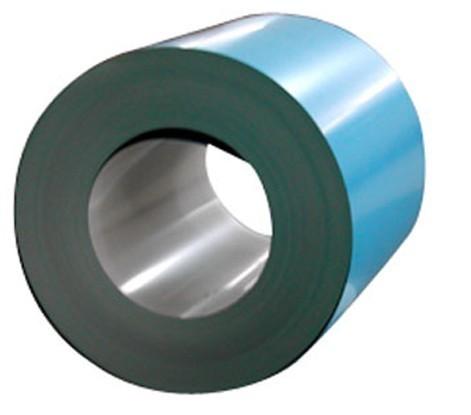

Galvalume Steel Plate JIS G3312, CGCC, DX51D AZ Prepainted Color Steel Coils / Coil
Galvalume Steel Plate JIS G3312, CGCC, DX51D AZ Prepainted Color Steel Coils / Coil
Specifications
Place of Origin :
China
Brand Name :
Yh
Price :
Depends on order quantity
Packaging Details :
According to customer's requirements
Delivery Time :
Delivery Time within 20days
Payment Terms :
LC and TT
Certification :
CE ISO BV SGS
MOQ :
20TONS
Supply Ability :
10000T
Description

Galvalume Steel Plate JIS G3312, CGCC, DX51D AZ Prepainted Color Steel Coils / Coil

Detailed Product Description

PPGI(PPGL) Sheet or Coil Features:

Soft commercial quality or Lock forming quality (LFQ)

1 Thickness: 0.47mm

2 Width:1219mm/1250mm

3 Standard: JIS G3312, Inner diameter: 508mm, &610mm, Coil Weigh: 3-8T

4 Steel Grade:CGCC, DX51D, Zinc coat: Z60-Z275, AZ coat: AZ 30-AZ150

5 Plate:hot dipped galvanized plate or galvalume steel plate

6 Categories of paint: polyester, silicon modified polyester (SMP)&PVDF

7 Painting thickness: 25+/-5 microns on top side and 7+/-2 microns on back side

8 Color: white, red, blue or customized as per RAL color card.

9 Packing: Standard export packing, 4 eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized metal and waterproof paper wall protection disk, galvanized metal and waterproof paper around circumference and bore protection.

10 With or without protective film on the top side of color coated sheet or coil

11 Applications: buildings, vehicles, ships, mechanical and electrical equipment,

and electrical household appliance

12 Cutting and slitting can be requested as customer's designation

NAME

PPGI

GALVANIZED

GALVALUME/ALUZINC

CERTIFICATE

ISO9001:2008

STANDARD

EN10142

JIS G3302

GB/T-12754-2006

ASTM A653

JIS G3302

SGCC/SGCH

GB/T2518

European Standard

ASTM A792

JIS G3321

JIS G3317

GRADE

CGCC

CGCH

CGCD1-CGCD3

CGC340-CGC570

GRADE

SS GRADE33-80

SGCC

SGCH

SGCD1-SGCD3

SGC340-SGC570

SGCC

DX51D

GRADE33-80

SGLCC

SGLCD

SGLCDD

SGLC400-SGLC570

SZACC

SZACH

SZAC340R

MODEL NO

0.16MM-1.5MM*1250MM OR UNDER

(0.12-1.5)*1250MM OR UNDER

0.16MM-1.5MM*1250MM OR UNDER

TYPE

Steel coil

Steel sheets/plates

Corrugated steel sheets/plates

Steel coil

Steel sheets/plates

Corrugated steel sheets/plates

Steel coil

Steel sheets/plates

Corrugated steel sheets/plates

TECHNIQUE

Hot rolled-cold rolled

-galvalume /galvanized

-PPGI/PPGL

Hot rolled-cold rolled

- galvanized

Hot rolled-cold rolled

-galvalume /Aluzinc

SURFACE

TREATMENT

Mini/regular/big/zero spangle,

Chromate treatment /chromate-free treatment /untreated unoile/oiled,

TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint,

Coating,color

Mini/regular/big/zero spangle,

Chromate treatment /chromate-free treatment /untreated unoile/oiled,

TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint,

Coating

APPLICATION

Structural use ,roofing, commercial use, household appliance, industry, family

SPECIAL

APPLICATION

Wear resistant steel, high- strength - steel plate
