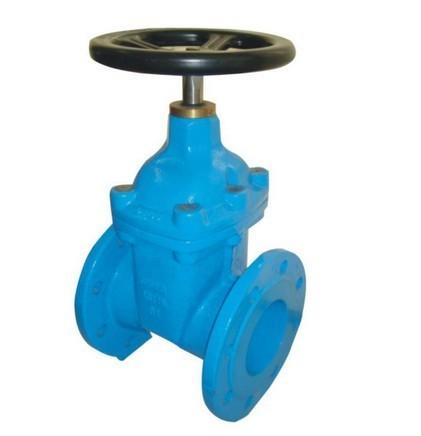

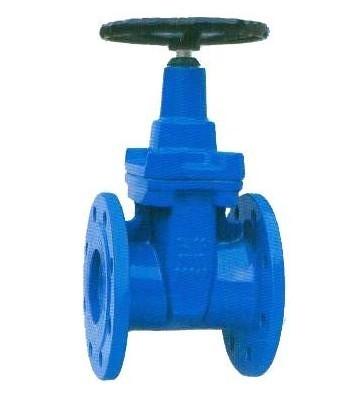

DN40 - DN300 Metal Valves, Rubber Wedge Gate Valve ( DIN3352 F5 ) With Handwheel
DN40 - DN300 Metal Valves, Rubber Wedge Gate Valve ( DIN3352 F5 ) With Handwheel
DN40 - DN300 Metal Valves, Rubber Wedge Gate Valve ( DIN3352 F5 ) With Handwheel
DN40 - DN300 Metal Valves, Rubber Wedge Gate Valve ( DIN3352 F5 ) With Handwheel
Specifications
Place of Origin :
China
Brand Name :
Yh
Price :
Depends on order quantity
Packaging Details :
According to customer's requirements
Delivery Time :
Delivery Time within 20days
Payment Terms :
LC and TT
Description

DN40 - DN300 Metal Valves, Rubber Wedge Gate Valve ( DIN3352 F5 ) With Handwheel

Specifications

1.Size:DN40-DN300
2.Standard:DIN3352
3.End flange:DIN2532-2533/BS EN 1902
4.Handwheel or square cap operation
5.Test:DIN3230

Product details:

1.Size: DN40-DN300
2.Standard: DIN3352
3.Face to face dimension: DIN3202 , F4 Or ISO 5752 14 Series
4.End Flange: DIN2532-2533/BS EN 1092
5.Test: DIN3230
6.Class: PN10-PN16
7.Body/Bonnet material: Ductile iron Handwheel /Gear head operation
8.External and internal Epoxy or Rilsan powder electrostatic spraying


Rubber Wedge Gate Valve

1.Valve is suppplied with handwheel or bareshaft with square cap.

2. A stem dust guard is fitted.

3.The stem water tightness is achieved with o-rings and a holding ring.

4.Stainless steel bonnet bolts are plastic sealed.

5.Wedge is in ductile iron with EPDM or NBR coated.

6.Wedge is with central guides to avoid rubber friction when operating the valve.

7. Body is internally and externally coated with Epoxy or Rilsan by electro fusion coating.

7.Full and straight bore avoids turbulence, pressure loss and Venturi effect.
