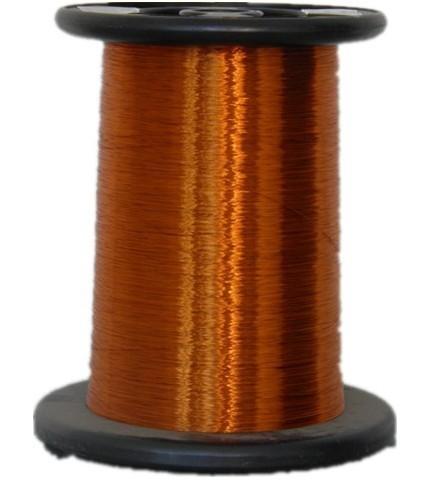

Thin / Thick Coat, Enameled CCA Wire, Copper Wires 0.13mm - 1.50mm Diameter
Thin / Thick Coat, Enameled CCA Wire, Copper Wires 0.13mm - 1.50mm Diameter
Specifications
Place of Origin :
China
Brand Name :
Yh
Price :
Depends on order quantity
Packaging Details :
According to customer's requirements
Delivery Time :
Delivery Time within 20days
Payment Terms :
LC and TT
Description

Thin / Thick Coat, Enameled CCA Wire, Copper Wires 0.13mm - 1.50mm Diameter

Super quality Enameled CCA Wire:
1. 130, 155, 180 centigrade;
2. 0.12MM~1.50MM;
3. Different color;
4. SGS,ISO,ROHS

Super quality Enameled CCA Wire:

1. Temperature Class: 130, 155, 180 centigrade;

2. Performance features:

It has good performance of high temperature-resistance, cold-resistance, radiation-resistance, softening-resistance, and freeze-resistance. The heat-resistance temperature is higher than that of Polyesterimide polyamide-imide compound copper over-coated aluminum enameled wire. It has good electrical conductivity. The density of aluminum is low (Just 40 percent of that of copper enameled wire). It is light and the length in each unit weight can reach 2.5-2.7 times than that of copper enameled wire. By using this material, the cost can be reduced by 30 percent above. The heat-resistance temperature can reach as high as 240 centigrade.

3. Main applications:

Used as the winding wire of electric machine or electrical appliance working under high temperature, severe cold, radiated, over-loaded environment.

4. Specification:

Diameter 0.13mm~1.50mm (thin coat, thick coat, coat requested by clients)

The physical and mechanical performance copper clad aluminum wire, copper wire , aluminum wire

conductor

Performance

Copper Clad Aluminum Wire

Copper Wire

Aluminum Wire

Volume ratio of copper (%)

15

109

0

Specific gravity (g/cm3)

3.63

8.89

2.70

Length ratio in same wire diameter and unit weight

2.5: 1

1: 1

3.29: 1

Conductivity (IACS)

70

100

62

Electric resistivity(Ωmm2)

0.02462

0.01724

0.02740

Tensile strength (M pa )

95-135

215-266

68-107

Elongation (%)

≥10

≥20

≥8

Winding performance

good

very good

good

Weight

good

bad

very good

Soldering performance

very good

very good

bad

Direct current resistance

good

very good

good
