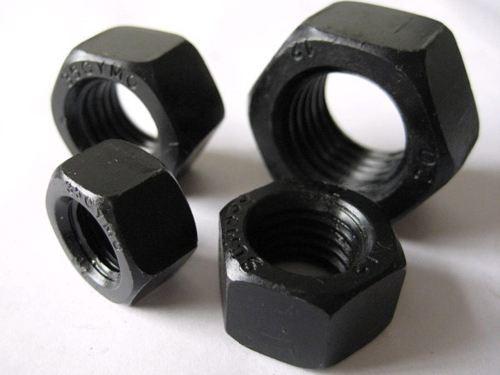

High Strength Galvanized Hex Nut Black Iron Oxide Surface Larger Fastening Force
High Strength Galvanized Hex Nut Black Iron Oxide Surface Larger Fastening Force
High Strength Galvanized Hex Nut Black Iron Oxide Surface Larger Fastening Force
High Strength Galvanized Hex Nut Black Iron Oxide Surface Larger Fastening Force
Specifications
Brand Name :
MAIDE
Model Number :
M6-M30
Certification :
ISO
Place of Origin :
Hebei,China
MOQ :
1 TON
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300 ton per week
Packaging Details :
Bag+Wooden Pallets
Product :
Hex Nuts
Material :
Iron
Colour :
Black
Surface Treatment :
Galvanized
Grade :
4.8
Description

High-Strength Galvanized Galvanized Hex Nut Chinese standard ( GB ) Black Iron Oxide


Product Description

Hex nuts are bolts or bolts screwed together for fastening parts,An element that must be used in all manufacturing machinery.According to the main attributes of the Chinese standard (GB),German standard (DIN),International Standard (ISO),Japanese standard (JIS),American Standard (ASTM / ANSI)Other standards.The Chinese standard,German standard,Japanese standardWith M said(Eg M8,M16),American Standard,British standard points or # said specifications (such as 8 #,10 #,1 / 4,3 / 8).

Hex nuts are components that connect mechanical equipment closely,Thread through the inside,The same size hex nuts and bolts can be connected together,For example, M4-P0.7 hex nuts can only be connected with M4-P0.7 series bolts(M4 hexagonal nut in the hexagonal nut diameter of about 4mm,0.7 refers to the distance between the two thread teeth 0.7mm).American standard products are the same,For example 1 / 4-20 hex nuts can only be used with 1 / 4-20 bolts9(The 1/4 finger hex nut has an inside diameter of about 0.25 inches and 20 means 20 teeth per inch).

Product parameters
Thread
Specifications		 To The Margin(MM) Height H(MM) Circumference Diameter Every 1000/KG
Nominal Size Tolerance Nominal Size Tolerance
M1.6 3.2 -0.16 1.3 ±0.2 3.7 0.075
M2 4 1.6 4.6 0.119
M2.5 5 2 5.8 0.22
M3 5.5 2.4 6.3 0.393
M4 7 -0.2 3.2 ±0.24 8.1 0.844
M5 8 4 9.2 1.24
M6 10 5 11.5 2.317
M8 14 -0.24 6 16.2 5.674
M10 17 8 ±0.29 19.6 10.99
M12 19 -0.28 10 21.9 16.32
M14 22 11 ±0.35 25.4 25.28
M16 24 13 27.7 34.12
M18 27 14 31.2 44.19
M20 30 -0.34 16 34.6 61.91
M22 32 18 36.9 75.94
M24 36 19 ±0.5 41.4 111.9
M27 41 22 47.3 168
M30 46 -0.4 24 53.1 234.2
M36 55 28 63.5 370.9
M42 65 32 75 598.6
M48 75 38 86.5 957.3



Applications

Automotive industry, machinery manufacturing, pneumatic tools, furniture hardware, construction and so on.

Features
Wide range of applications, characterized by a larger fastening force, the disadvantage is that there must be sufficient space for installation, the installation can be used to live wrenches, open-end wrenches or glasses wrenches, the above wrenches require a lot of space for operation.
High Strength Galvanized Hex Nut Black Iron Oxide Surface Larger Fastening Force
