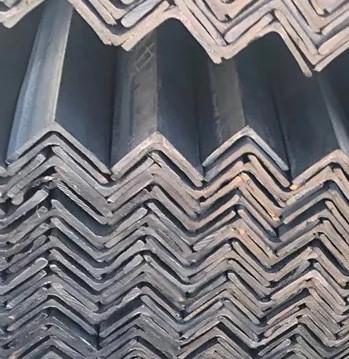

ASTM JIS G3313 Electrogalvanized Steel Angle 6mm Thickness 2000mm Length
ASTM JIS G3313 Electrogalvanized Steel Angle 6mm Thickness 2000mm Length
ASTM JIS G3313 Electrogalvanized Steel Angle 6mm Thickness 2000mm Length
ASTM JIS G3313 Electrogalvanized Steel Angle 6mm Thickness 2000mm Length
Specifications
Brand Name :
LIAN ZHONG
Model Number :
Q235, Q345, Q195, Q215
Certification :
ISO9001 14001 BV TUV PED DNV etc
Place of Origin :
Jiangsu,China
MOQ :
1 MT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
8000MT/Month
Delivery Time :
3~10 days
Packaging Details :
Exporting package/wooden box package/Or per customers’ requirement
Product name :
Electrogalvanized Steel Angle
Type :
equal and unequal
Grade :
Q195-Q420 Series
Length :
1000-12000mm or as your request
Surface treatment :
Hot Dip Galvanised
Application :
Engineering Structure, Building Construction
Description

ASTM JIS G3313 Electrogalvanized Steel Angle 6mm Thickness 2000mm Length

Product Descriptions:

Commodity
Electrogalvanized Steel Angle
Standard
ASTM, JIS, DIN, EN, GB
Grade
A36, SS400, Q195-Q345
Technique
Hot Rolled
Type
Equal Angle Bar / Unequal Angle Bar
Size
20*20*3mm - 200*200*20mm
Length
5m, 10m, 12m or as required
Payment Terms
T/T, L/C
Delivery Time
20 days after get the deposit
Packing
In bundles, standard export packing


Grade Chemical Composition Mechanical Properties
C Mn Si S P Yield Tensile Elongati
Strength Mpa Strenth Mpa -on %
Q195 0.06-0.12 0.25-0.50 ≤0.30 ≤0.045 ≤0.05 ≥195 315-430 ≥33
Q215 0.09-0.15 0.25-0.55 ≤0.30 ≤0.05 ≤0.045 ≥215 335-450 ≥27
Q235 0.12-0.20 0.30-0.67 ≤0.30 ≤0.045 ≤0.04 ≥235 375-500 ≥26
Q345 ≤0.20 1.00-1.60 ≤0.55 ≤0.04 ≤0.04 ≥345 470-630 ≥22


Product Details:

Top Steel will test steel angle product size before shiping. Ensure that the product is meet your order requirement.






Applications:



Packing & Shipping:


About us:



WHY CHOOSE US?

1.Competitive price and high quality from our own factory.
2.Our group having own three factories , two trading companies and one logistics company .Can supply one-stop service from products purchasing to transport.
3.Approved by the ISO 9001,CE,BV,SGS,ABS,API every year.
4.Smooth production ability 60,000tons each month .
5.Strict quality control , ensure any product satisfied with yours application .
6.OEM/ODM , Free of charges of Logo design and printing on your goods
