GB EN JIS Galvanized I Beam 100X100-900X300 For Building Construction
GB EN JIS Galvanized I Beam 100X100-900X300 For Building Construction
GB EN JIS Galvanized I Beam 100X100-900X300 For Building Construction
GB EN JIS Galvanized I Beam 100X100-900X300 For Building Construction
GB EN JIS Galvanized I Beam 100X100-900X300 For Building Construction
GB EN JIS Galvanized I Beam 100X100-900X300 For Building Construction
Specifications
Brand Name :
LIANZHONG
Model Number :
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
Certification :
SGS ISO BV
Place of Origin :
Jiangsu,china
MOQ :
1MT
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000MT/Month
Delivery Time :
4~14 days
Packaging Details :
Exporting package/wooden box package/Or per customers' requirement
Product name :
Steel Beam Structural Galvanized I-Beam 6m 12m Length Customized A36
Standard :
DIN,ASTM,GB,JIS,AISI
Length :
6m,8m,9m,11m,12m or Customer's requirements
Grade :
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
Thickness :
5-30mm or Customer's requirements
Surface :
Hot rolled Galvanized Carbon steel
Width :
100mm~900mm or Customer's requirements
Tolerance :
±1%
Description

Galvanized I-Beam 100*100-900*300 For Building Construction GB EN JIS

Description:

Grade
Q235,Q345,SS400,SS490,S235/S275,A36,A992,A572gr50
H*B
100*100-900*300mm
T1
4.5-21mm
T2
7-35mm
Technique
Hot Rolled
Application
Mechanical&manufacture,Steel structure,Shipbuilding,Bridging, Automobile chassis
MOQ
1 Metric Ton/Metric Tons
Packaging Details
Bundled with firm steel straps, easy for loading
Delivery Time
14 days after deposit
Payment Terms
L/C , T/T or Western Union
Supply Ability
20000 Metric Ton/Metric Tons per Month

GradeChemical CompositionMechanical Properties
CMnSiSPYieldTensileElongati
Strength MpaStrenth Mpa-on %
Q1950.06-0.120.25-0.50≤0.30≤0.045≤0.05≥195315-430≥33
Q2150.09-0.150.25-0.55≤0.30≤0.05≤0.045≥215335-450≥27
Q2350.12-0.200.30-0.67≤0.30≤0.045≤0.04≥235375-500≥26
Q345≤0.201.00-1.60≤0.55≤0.04≤0.04≥345470-630≥22


Grade

Rel./N/mm2
No less than

Rm/N/mm2
No less than

A/%
No less than

t≤16mmt>16mmD≤168.3mmD>168.3mm
Q1951951853151520
Q215B215205335
Q235B2352253701318

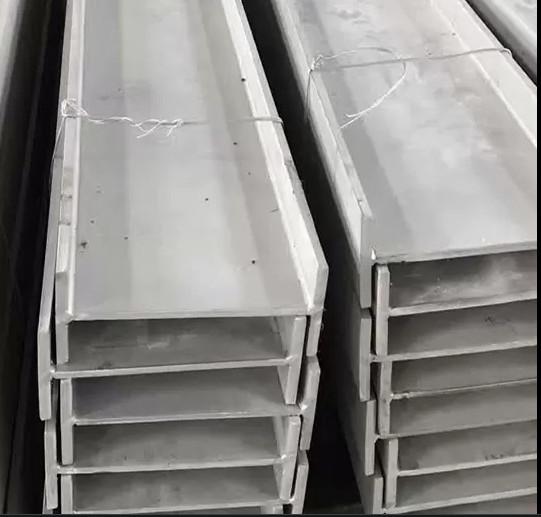

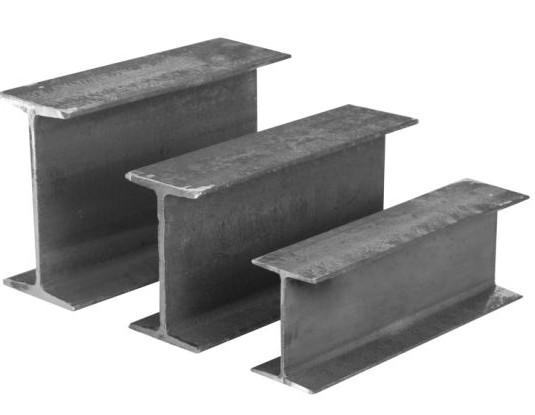

Product Shows:





Production Processing:


Quality Inspection:


Packing and Shipping:



Certification:


Application:


FAQ:
Q: Do you provide samples? is it free or extra?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.

Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee the quality.

Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.

Q: What's your payment term?
A: Usually we do TT and LC or combined.

Q:How can I get your price list?
A: Please send us your email or fax and order information - Quantity, Specification (steel type,thickness, width, surface finish),then I can send you the price list.
