Decapping 3 Heads Automatic Bucket Washer 1500bph
Decapping 3 Heads Automatic Bucket Washer 1500bph
Decapping 3 Heads Automatic Bucket Washer 1500bph
Decapping 3 Heads Automatic Bucket Washer 1500bph
Decapping 3 Heads Automatic Bucket Washer 1500bph
Decapping 3 Heads Automatic Bucket Washer 1500bph
Specifications
Brand Name :
FILL PACK
Model Number :
BG-3
Certification :
CE, ISO9001
Place of Origin :
ZhangJiaGang JiangSu China
MOQ :
1 set
Price :
USD $2185/set
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
15 sets/month
Delivery Time :
15-25 working days
Packaging Details :
wooden case
bottle size :
3-5 gallon bottle
capacity :
1500BPH
control :
PLC
Material :
SUS 304
Dimension(L*W*H) :
1200*500*2100
Automatic Grade :
Automatic
Weight :
180kgs
operate head qty :
3
Description

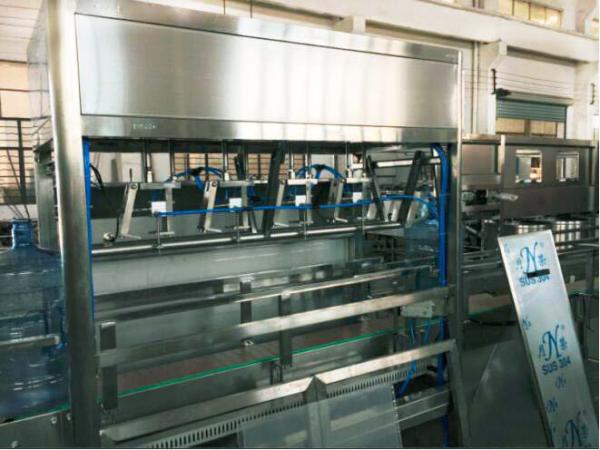

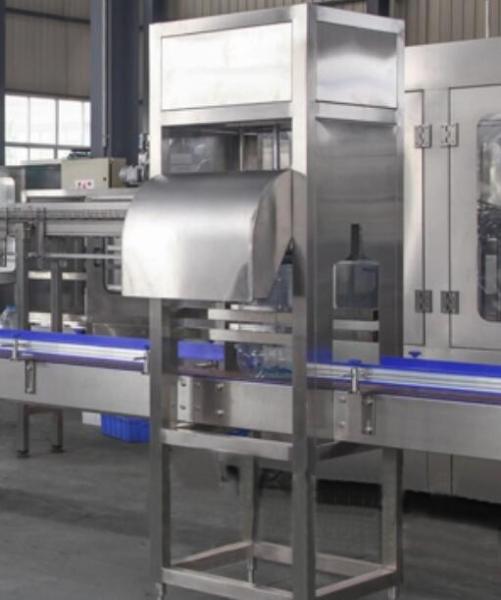

The Automatic de-capping machine with 3 heads

This machine is driven by cylinder, controlled by PLC;

Automatic working by barrel checking;

The machine has 3 de-capping heads. De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;

De-capping head: 3 heads

Dimension: 1200*500*2100 mm

Air consumption: 0.1M3/min

Air pressure: 0.6Mpa

Pneumatic brand: Airtac

Weight: 180kg

Equipment list:

Items
Name of machine
Model
1.1
Controlled
 PLC
1.2
 driven cylinder
1.3
 De-capping head 3
1.4
conveyor
customized
