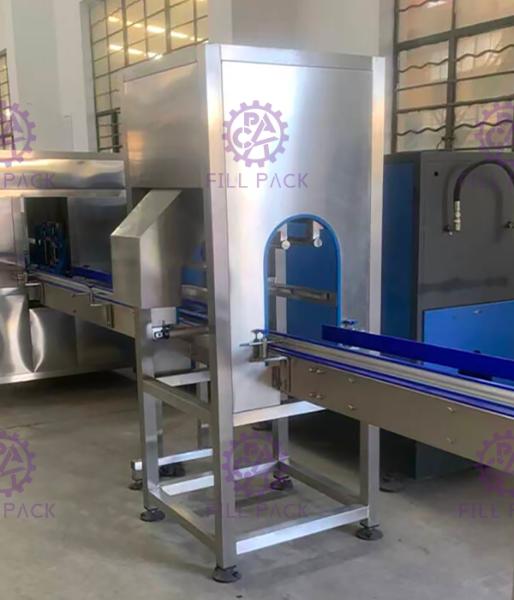

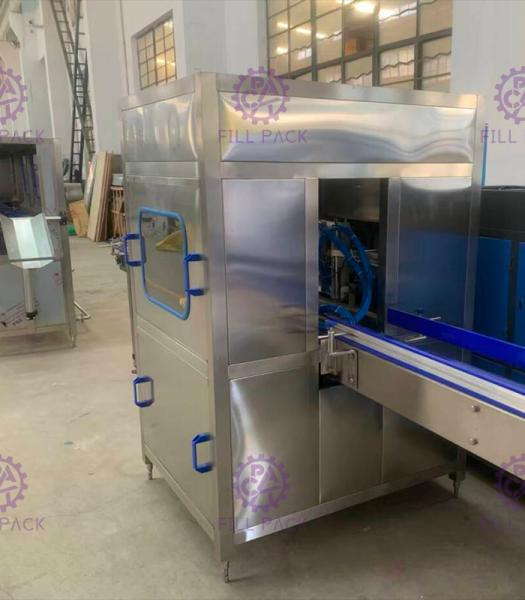

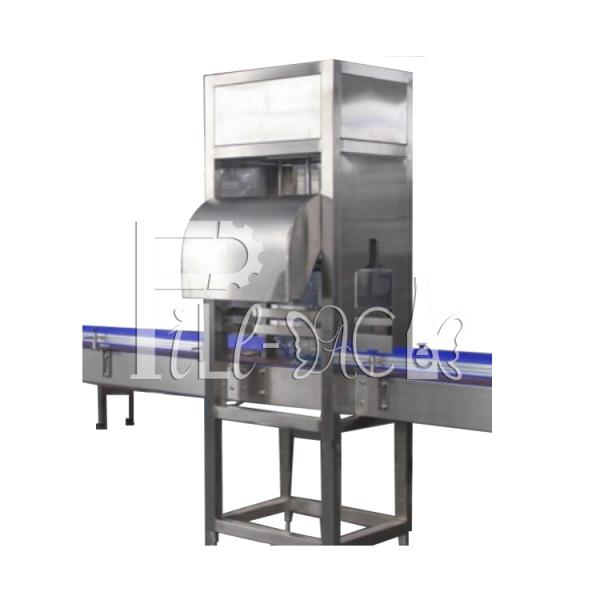

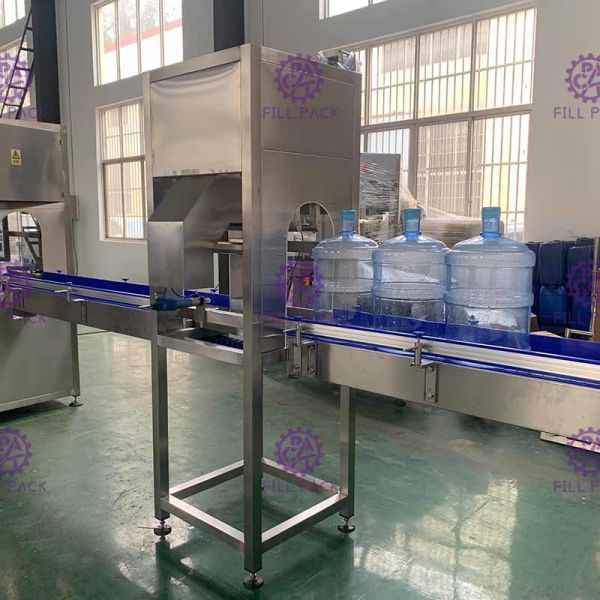

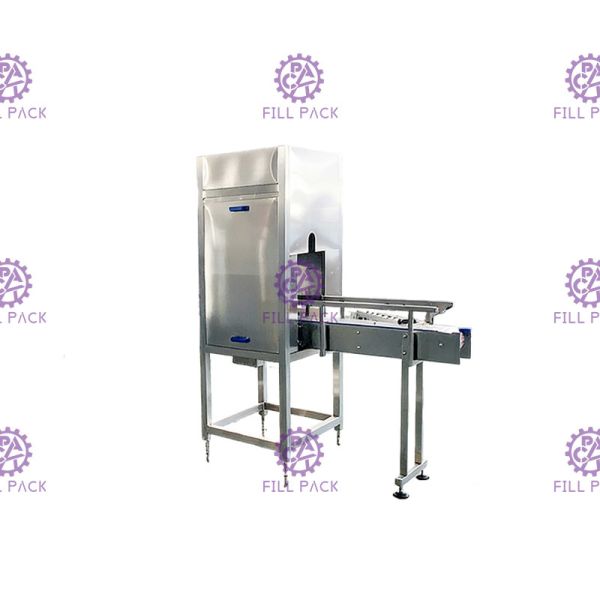

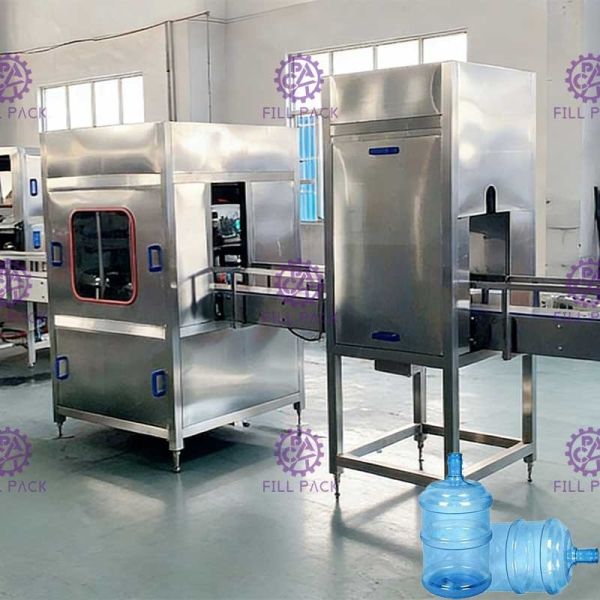

Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Specifications
Brand Name :
FILL PACK
Model Number :
BG-1
Certification :
CE, ISO9001
Place of Origin :
ZhangJiaGang JiangSu China
MOQ :
1 set
Price :
USD $1220/set
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
15 sets/month
Delivery Time :
15-25 working days
Packaging Details :
wooden case
bottle size :
3-5 gallon bottle
capacity :
200BPH
control :
PLC
Material :
SUS 304
Dimension(L*W*H) :
600*600*2000
Automatic Grade :
Automatic
Weight :
80kgs
operate head qty :
1
Description

The Automatic de-capping machine for gallon bottle filling line

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;

De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;

Parameters:

Dimension: 600*600*2000mm

Weight: 80kg

Equipment list:

Items
Name of machine
Model
1.1
Controlled
 PLC
1.2
 driven cylinder
1.3
 De-capping head 1
1.4
conveyor
customized

Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304 Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304 Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304
