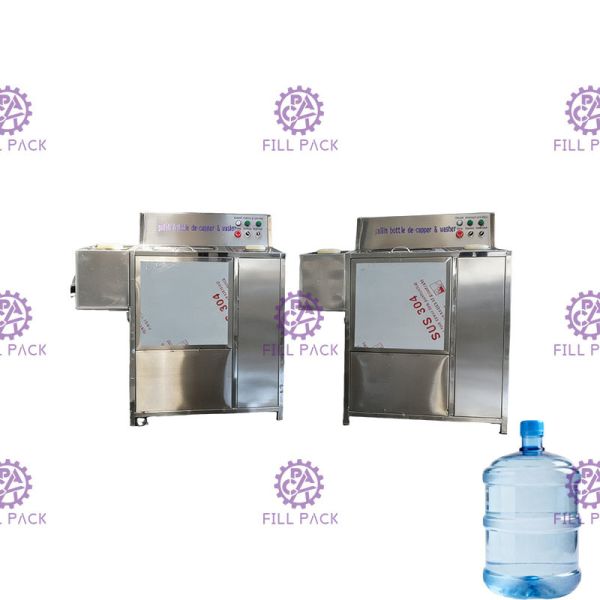

BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
Specifications
Brand Name :
FillPack
Model Number :
BSC-1
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1
Price :
USD $800-1000/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10 set / month
Delivery Time :
15-20days after deposit receipt
Packaging Details :
Wooden Case Package
Power :
4KW
Weight :
280kg
Material :
SUS304
Automatic Grade :
semi-auto
Capacity :
150-200BPH
Packaging Type :
gallon bottle / bucket
Condition :
New
Description

semi-auto 150BPH 3-5 Gallon Bottle / bucket / barrel Decapper And Washer


Working process

Put the empty bottleneck into the pedal and pull the cap and Put the barrel in flushing base, 1 arrow above cover plate, blunt begin automatically flush work, open the cover plate is flush to stop, then Put the empty into the washing box with brush, close the cover plate, brush barrels began to work, open the stop,Take out the bottle around 10 seconds, a process is over.

Checking the power supply and air pressure before turn on the machine, motor steering right or not, if not, please use machine after excluding the malfunction.


Instructions

1. Putting the bottleneck into the pulling machine chuck and press it to site.

2. Stamping pneumatic valve pedal, the gas tank drive chuck and then pull the cap.

3. Loosening pedal, gas tank lift up, taking down the empty bottle when pulling machine chuck open.

4. Please stamp pneumatic valve to pull the cap if the first failed, if the cap can’t be pulled out, this cap is difficult cap, loosen pneumatic valve and take down the cap coercively.( this situation seldom happened )

5. Putting the empty into the washing bottle machine, close door, then the machine work automatically.


Main Technical parameter of this Gallon washer:

Capacity 150-200BPH
Brushes 8
Barrel size 3-5gallon
Air pressure 0.5MPa
Water consumption 0.01t/h
Power 4kw
Outline dimensions 1200*750*1150mm
Weight 280Kg

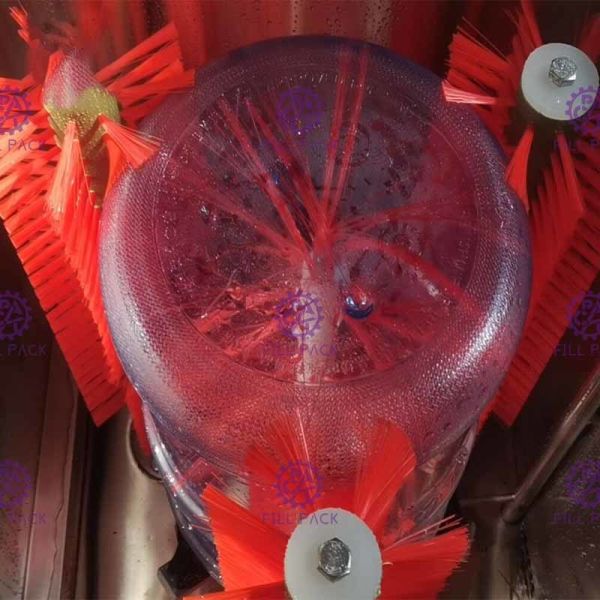

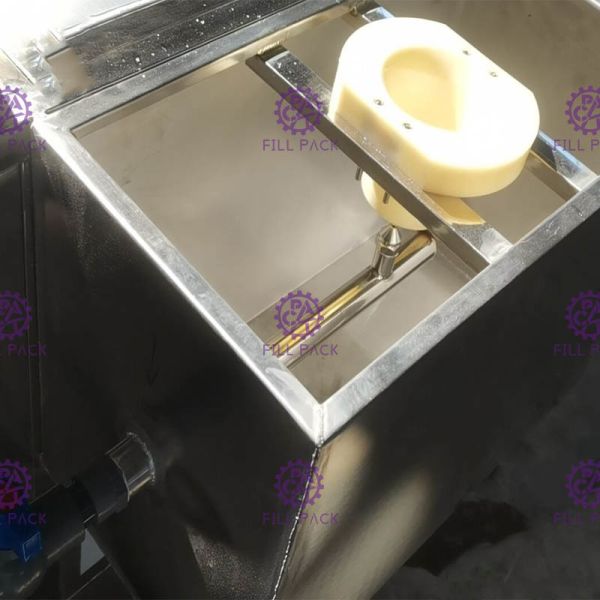

The details of this Gallon washer:

BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer

BSC-1 Semi-auto 150BPH 5 Gallon Bottle Decapper Washer
