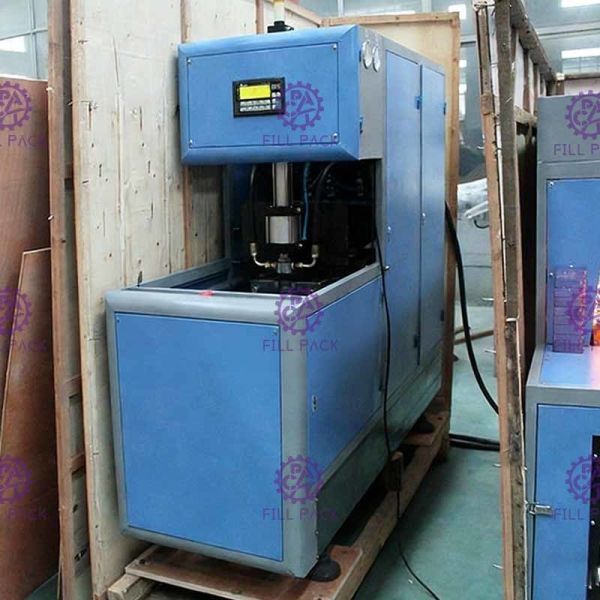

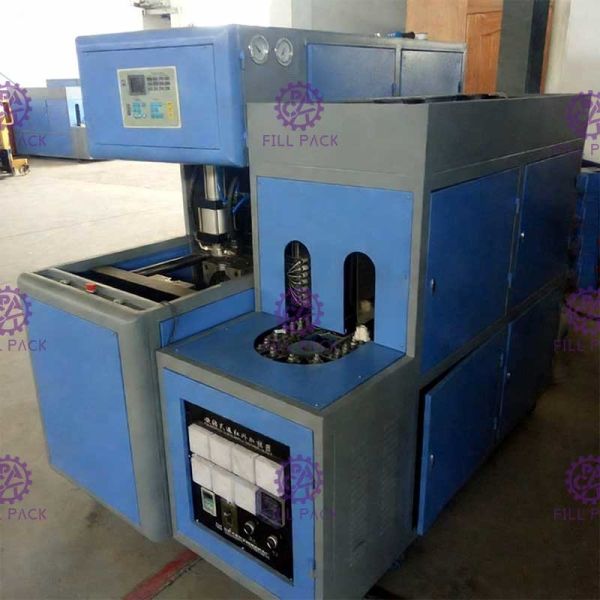

One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon
One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon
One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon
One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon
One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon
One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon
Specifications
Brand Name :
FillPack
Model Number :
FP-120
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set
Price :
USD6825 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
15-20days after deposit receipt
Packaging Details :
Wooden Case Package
Voltage: :
As per model
Key Selling Points: :
Easy to Operate
Feature: :
High Stability
Working Pressure: :
0.8-1.0Mpa
Capacity :
120BPH
Cavity :
1 Cavity
Bottle volume :
3-5 gallon bottles
Condition :
New
Description

1 cavity semi-auto blow molding system for 3-5gallon

Trait:

FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.

● Perfect function with economic investment.

● Small size and compact construction with no space waste.

● Easy to operate and maintain ,operation by one person .

● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.

Main parameter:
Model FP-120

Container

 Product material PET
Volume 10L-20L(3-5Gallon)
Output 150PCS/H
Max bottle length 430mm
Max bottle diameter 300mm

Moulding

 Stretching stroke 450mm
Clamping force 6000kg
Mould opening stroke 360mm

Machine size and weight

 Main machine (L x W x H) 2350*750*1900mm
Main machine weight 1500Kg
Heater (L x W x H) 2670*680*1650mm
Heater weight 380Kg
Power 40kw

3-5 gallon bucket blowing machine Specifications:
1. PET bottle blowing machine with 1 Cavity
2. Suitable for 15~20L bottles
3. Blow PET or PP bottles
4. Capacity: 120BPH


Product details:
One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 GallonOne Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon

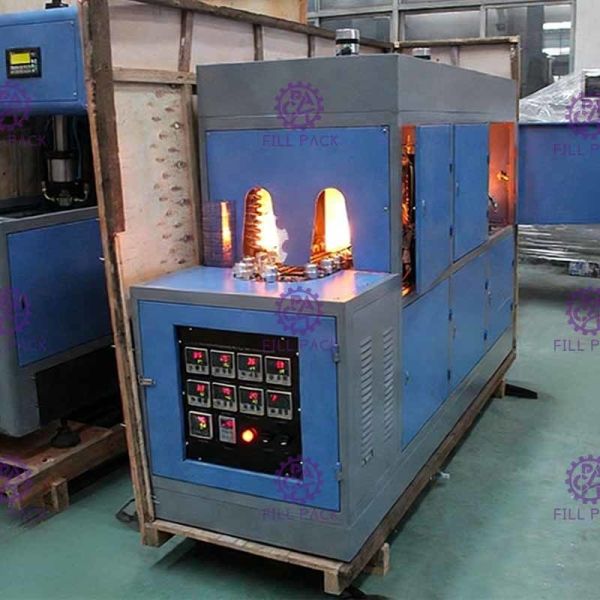

heating machine
