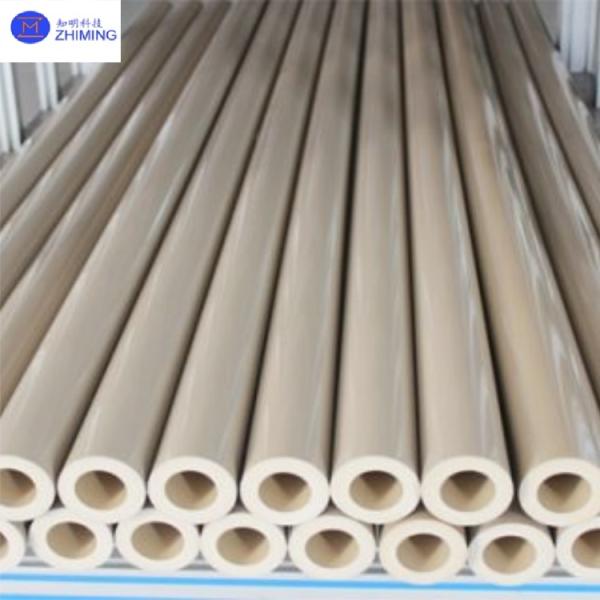

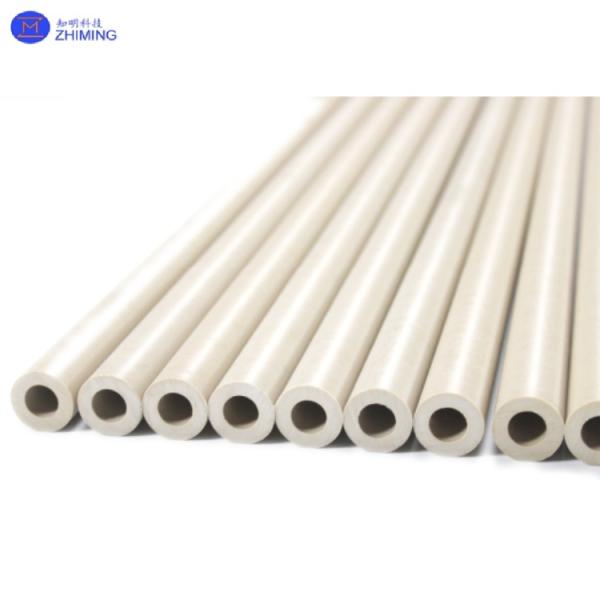

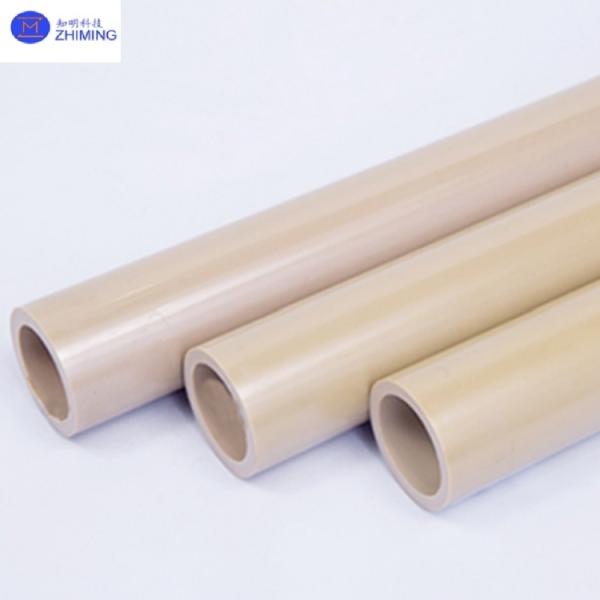

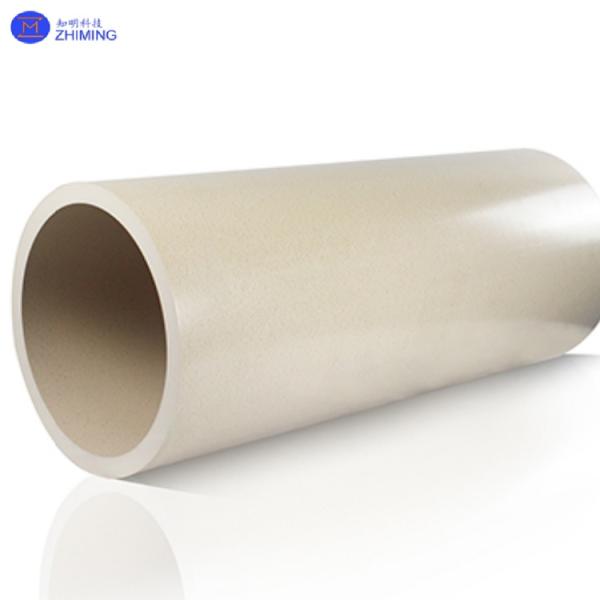

PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance
PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance
PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance
PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance
PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance
PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance
Specifications
Brand Name :
ZMSH
Model Number :
PEEK Tubing
Certification :
rohs
Place of Origin :
CHINA
MOQ :
100
Price :
by case
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
2-4 weeks
Packaging Details :
package in 100-grade cleaning room
Outer Diameter Range :
1/16" (1.588mm) ~ 132mm
Inner Diameter Range :
0.13mm ~ 109mm
Wall Thickness Tolerance :
±0.05mm
Tensile Strength :
94–150 MPa
Melting Point :
343℃
Applications :
Wafer Transport Pipelines，​​Surgical Instruments
Description

Key summary of PEEK tubing

PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance

PEEK tubing is a ​​high-performance engineering plastic tubing​​ made from resin through precision extrusion or injection molding. It features ​​high-temperature resistance (long-term use at 260°C), chemical inertness, high strength, low friction coefficient. Its core value lies in replacing metals and traditional plastics in extreme environments, widely applied in semiconductors, medical, energy, and aerospace sectors.

PEEK tubing data

​​Parameter Category​​

​​Parameter Name​​

​​Value/Description​​

​​Size Specifications​​

Outer Diameter Range

1/16" (1.588mm) ~ 132mm

Inner Diameter Range

0.13mm ~ 109mm

Wall Thickness Tolerance

±0.05mm

​​Mechanical Properties​​

Tensile Strength

94–150 MPa

Bending Strength

145–170 MPa

​​Thermal Properties​​

Melting Point

343℃

Continuous Service Temperature

260℃ (long-term)

​​Chemical Properties​​

Solvent Resistance

Resists DMSO, THF, and other organic solvents

Hydrolysis Resistance

No performance degradation after 1000 hours

​​Electrical Properties​​

Volume Resistivity

≥1×10¹⁶ Ω·cm

​​Processing Characteristics​​

Processing Temperature

Injection molding: 360–400℃ / Extrusion: 340–380℃

Product features of PEEK tubing

PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance

1. Extreme Temperature Resistance​​:

  • Long-term stability up to 260°C, short-term resistance up to 300°C.
  • No brittleness at -196°C, suitable for cryogenic applications.

​​2. Chemical Stability​​:

  • Resists strong acids (e.g., concentrated sulfuric acid), alkalis, and organic solvents (except limited exceptions).
  • Hydrolysis resistance ensures performance in high-temperature, high-pressure steam.

3. ​​Mechanical Superiority​​:

  • Tensile strength ≥150 MPa, fatigue resistance surpassing metals and general plastics.
  • Low friction coefficient (self-lubricating) reduces energy loss and wear.

​​4. Biocompatibility & Safety​​:

  • Non-toxic, non-allergenic, and compatible with autoclaving, gamma irradiation, and ethylene oxide sterilization.
  • FDA food-grade certification for food processing equipment.

​​5. Dimensional Stability​​:

  • Low thermal expansion coefficient (close to aluminum), ensuring precision in high-temperature applications.

​​6. Environmental Safety​​:

  • Low smoke and toxic gas emissions during combustion.

Key applications of PEEK tubing

PEEK Tubing High-Performance Engineering Plastic Tubing High-Temperature Resistance

1. Semiconductors & Electronics​​:

  • ​​Wafer Transport Pipelines​​: Deliver ultra-pure water/chemicals without metal ion contamination.
  • ​​Insulation Components​​: Maintain electrical insulation in high-frequency, high-voltage environments (e.g., connectors, electronic packaging).

2. ​​Medical & Biotechnology​​:

  • ​​Surgical Instruments​​: Autoclavable catheters and endoscopic components.
  • ​​Implants​​: Artificial bones, dental instruments (alternative to titanium alloys).

3. ​​Energy & Chemicals​​:

  • ​​Oil & Gas Piping​​: Corrosion-resistant seals and wear-resistant bushings (metal replacement).
  • ​​Fuel Cells​​: High-temperature proton exchange membrane supports.

​​4. Automotive​​:

  • ​​Engine Components​​: Heat-resistant seals, bearings (reduces friction and energy consumption).
  • ​​EV Batteries​​: Cooling system tubing (electrolyte corrosion resistance).

5. ​​Aerospace​​:

  • ​​Engine Parts​​: Lightweight, high-temperature-resistant components (titanium/aluminum alternatives).
  • ​​Satellite Components​​: Radiation-resistant insulation materials.

FAQ of medical PEEK tubing

1. Q: ​​What is the maximum continuous operating temperature of PEEK tubing?​​

A:​​ PEEK tubing can withstand continuous use up to ​​260°C​​ while maintaining mechanical integrity, making it ideal for high-temperature applications like semiconductor equipment and industrial piping .

2. Q: ​​Which chemicals are incompatible with PEEK tubing?​​

A:​​ PEEK tubing is not compatible with ​​tetrahydrofuran (THF), dimethyl sulfoxide (DMSO), concentrated sulfuric acid, or chlorinated solvents​​, as they may degrade its structure .

Tags: #PEEK Tubing, #High-Performance Engineering Plastic Tubing, #High-Temperature Resistance
